Запчасти Bobcat S-Series PANELS (Manual Controls/ACS/AHC) MAIN FRAME

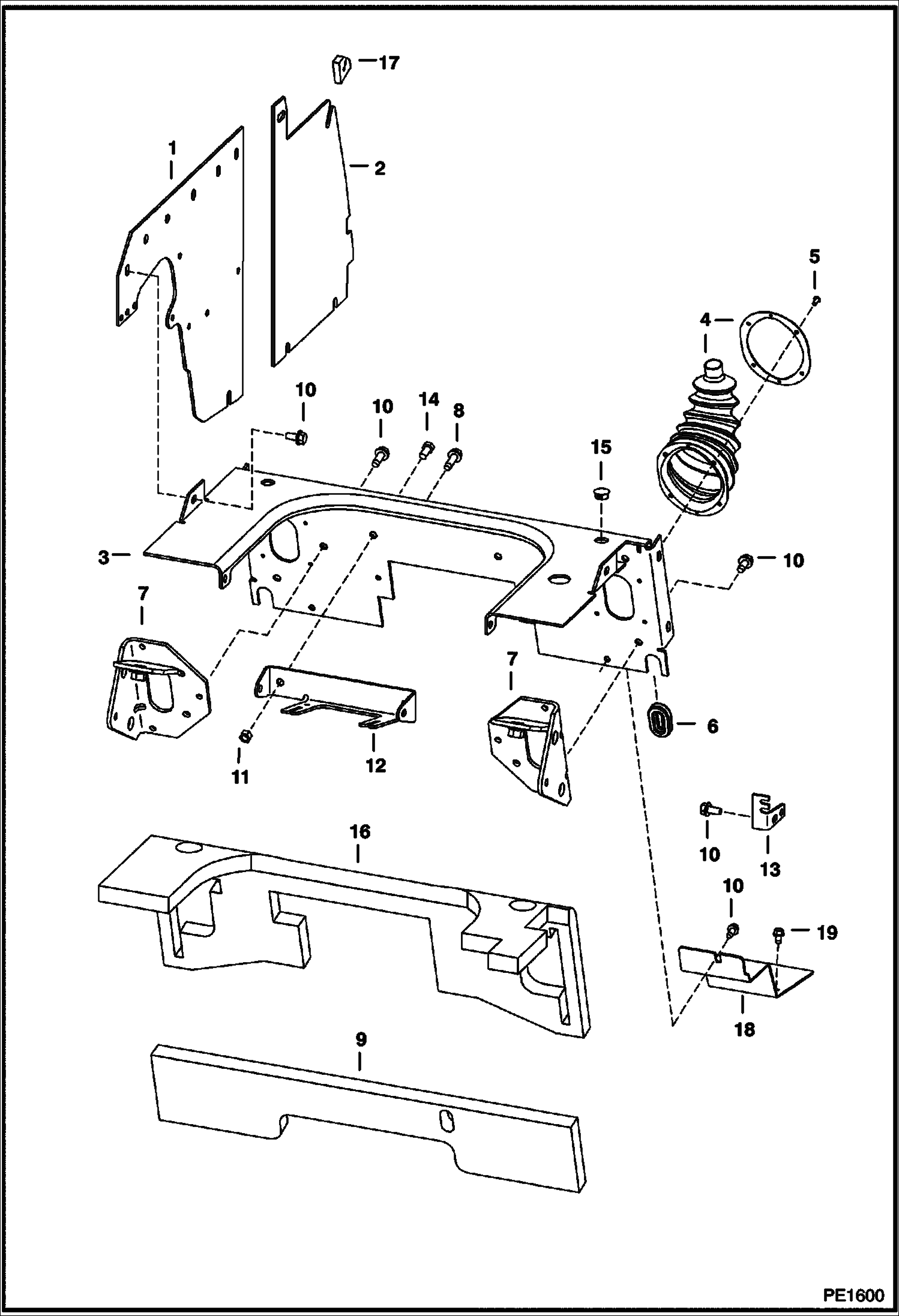

Схема запчастей Bobcat S-Series - PANELS (Manual Controls/ACS/AHC) MAIN FRAME

Артикул

Название

Примечание

Количество

1

6731899

PANEL 18.25'' long x 16.88'' tall

1

6734521

PANEL 15.25'' long x 16.33'' tall

2

6734602

PANEL 16.38'' Tall - Was 6732177 - A

2

7101804

PANEL 12.13'' Tall

3

7106707

SHIELD Also Order 6734520 cover - Was 6718305 - A

4

6532127

BOOT

5

6630207

RIVET 5

6

6577961

GROMMET

7

BRACKET See Illustration HAND CONTROLS/ PE1594 R.H. - Was 6733022 - A

7

BRACKET See Illustration HAND CONTROLS/ PE1594 L.H. - Was 6733024 - A

8

84G3716

SCREW 5

9

6701674

INSULATION

10

84G3712

BOLT 5

11

95D6

NUT

12

6706106

MOUNT damper - W/O mount for back-up alarm switch

12

7147580

MOUNT damper - W/mount for back-up alarm switch - Was 7100795 - A

13

6732450

BRACKET cable - Was 6732449 - B

14

17C612

BOLT 5

15

6657719

PLUG 0.75'' dia hole

15

6648348

PLUG 0.81'' dia hole

16

6716800

INSULATION

17

6733529

SEAL panel

18

6737095

STEP RH - rest

18

6737120

STEP LH - rest

19

84G3710

SCREW

Выбрано товаров: 25
