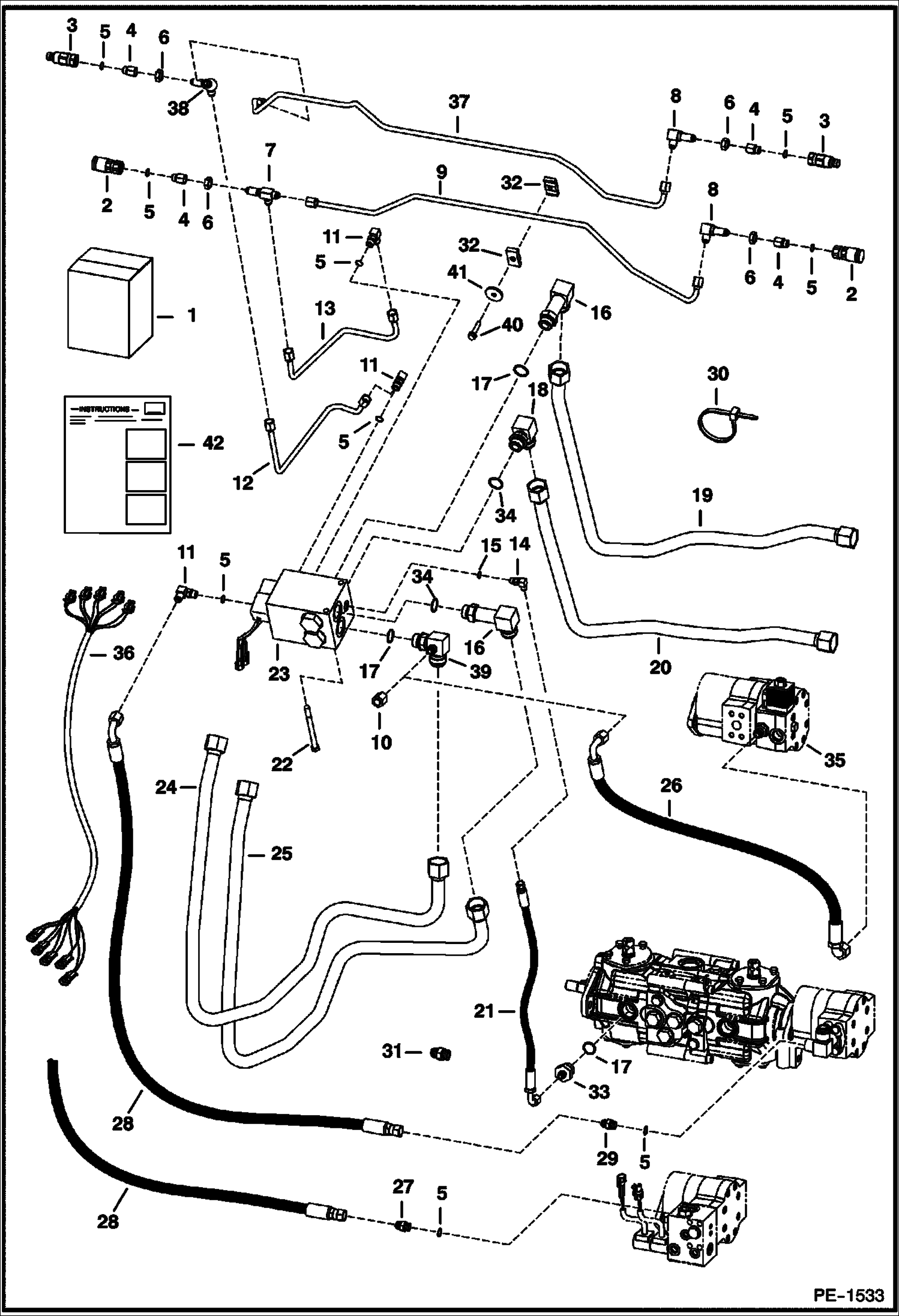

Запчасти Bobcat S-Series REAR AUXILIARY HYDRAULICS ACCESSORIES & OPTIONS

1

6732356

KIT See Illustration HIGH FLOW HYDRAULICS/ PE1535 For High Flow - See Ref. 2-42 on this page

2

6667803

COUPLER, FF FEMALE

3

6667804

COUPLER, FF MALE

4

6706633

ADAPTER flat boss face - W/Ref. 5

5

99K6

O RING

6

86F5

NUT

7

TEE NLA - w/ flared end o-rings - Was 6719298 - A

7

97K6

O RING flared end

7

91K5

TEE w/o flared end o-rings

8

88F5

ELBOW Was 88FN00005B - A

9

6733843

TUBELINE

10

36K6

CAP

11

17KB0606

FITTING tapered boss face - W/Ref. 5 - Was 17KV00005B - A

11

97K6

O RING flared end

12

6731747

TUBELINE

13

6731748

TUBELINE

14

17KB0404

FTG HYD ELBOW 90 tapered boss face - W/Ref. 15 - Was 17KV00003B - A

14

96K4

O-RING flared end

15

79K4

O RING 10

16

6733286

ELBOW tapered boss face - W/Ref. 17

16

97K8

O-RING flared end

16

97K12

O'RING flared end

17

99K12

O RING tappered boss face

17

79K12

O RING 10 flat boss face

18

17KB1612

FITTING, HYD ELBOW tapered boss face - W/Ref. 34 - Was 6800657 - A

19

6730185

TUBELINE

20

6730186

TUBELINE

21

6714875

HOSE

22

17C672

BOLT

23

6665572

VALVE See Illustration REAR AUXILIARY VALVE/ TS1362

24

6733410

TUBELINE

25

6733409

TUBELINE

26

6732260

HOSE high flow

27

15KB0606

FITTING, HYD CONNECTOR for machines W/ power bob-tach - W/Ref. 5

28

6730277

HOSE

29

17KB0606

FITTING W/Ref. 5 - For machines W/O power bobtach - Was 17KV00005B - A

29

96K6

O-RING flared end

30

6624289

STRAP, TIE

31

15K8

FITTING flat boss face - not in kit - W/Ref. 17

32

6726277

CLAMP

33

ADAPTER NLA - W/Ref. 17 - tapered boss face - Was 6715186 - A

33

97K12

O'RING flared end

33

15KB0612

FITTING, HYD CONNECTOR W/Ref. 17 - flat boss face

34

79K12

O RING 10

35

CHECK VALVE NLA - check - not in kit - for high flow - Order 7010242 valve and 15KB1008 adapter - Was 6679943 - A

35

7010242

VALVE, CHECK

35

15KB1008

FITTING, HYD CONNECTOR

36

6718645

HARNESS not in kit - order from parts

37

6733844

TUBELINE

38

6733850

TEE

39

6733877

ELBOW W/Ref. 34

40

84G3724

BOLT

41

872229

WASHER

42

6901711

INSTRUCTIONS
