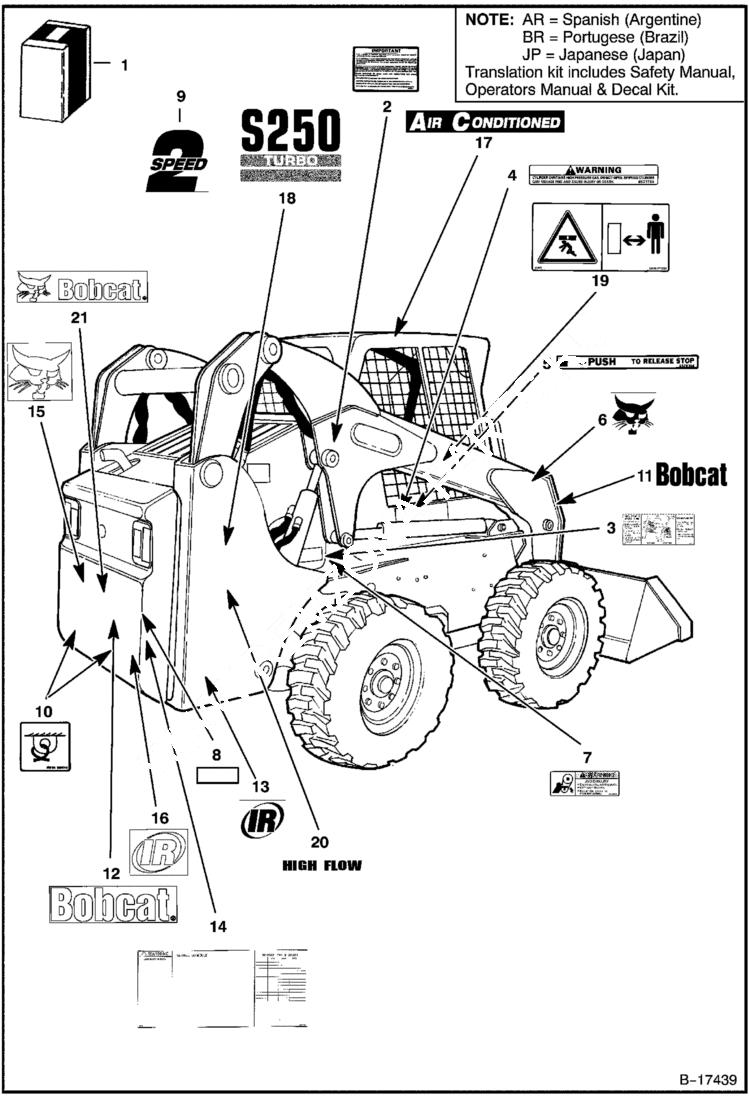

Запчасти Bobcat S-Series DECALS ACCESSORIES & OPTIONS

1

6902076

KIT decal - Ref. 2-8, 10-16, 18 & 19

1

6733796AR

TRANSLATION KIT translation - SEE NOTE

1

6733796AR

TRANSLATION KIT translation - SEE NOTE

1

6733759AR

KIT decal - SEE NOTE

1

6733759BR

KIT decal - SEE NOTE

1

6733759JP

KIT decal - SEE NOTE

2

6560573

DECAL spark arrestor - Was 6708937 - A

3

6732774

DECAL, OPERATION lift arm support

4

6577754

DECAL, WARNING 5 gas spring

5

6578368

DECAL, OPERATION push to release stop

6

6731507

DECAL RH - Bobcat head - black - lift arm

6

6731508

DECAL LH - Bobcat head - black - lift arm

7

6708941

DECAL, WARNING rotating parts

8

6565200

DECAL, FILTER

9

6729078

DECAL 2-speed - not in kit

10

6727595

DECAL Was 6595014 - B

11

6731336

DECAL Bobcat - lift arm - black

12

DECAL NLA - Bobcat - rear door - White - Order Ref. 21 - Was 6732419 - A

13

DECAL NLA - IR Logo - upright - Was 6732424 - A

14

6734534

DECAL, SERVICE service/warning/filters - Was 6718398 - A

15

DECAL NLA - Bobcat head - rear door - Order Ref. 21 - Was 6732420 - A

16

DECAL NLA - IR Logo - rear door - not in kit - Was 6732423 - A

17

6729077

DECAL air conditioned - not in kit

18

6732444

DECAL model S250

19

6713507

DECAL stay clear - Europe only - not in kit

20

6727913

DECAL high flow

21

6735901

DECAL, LOGO BOBCAT HEAD white
