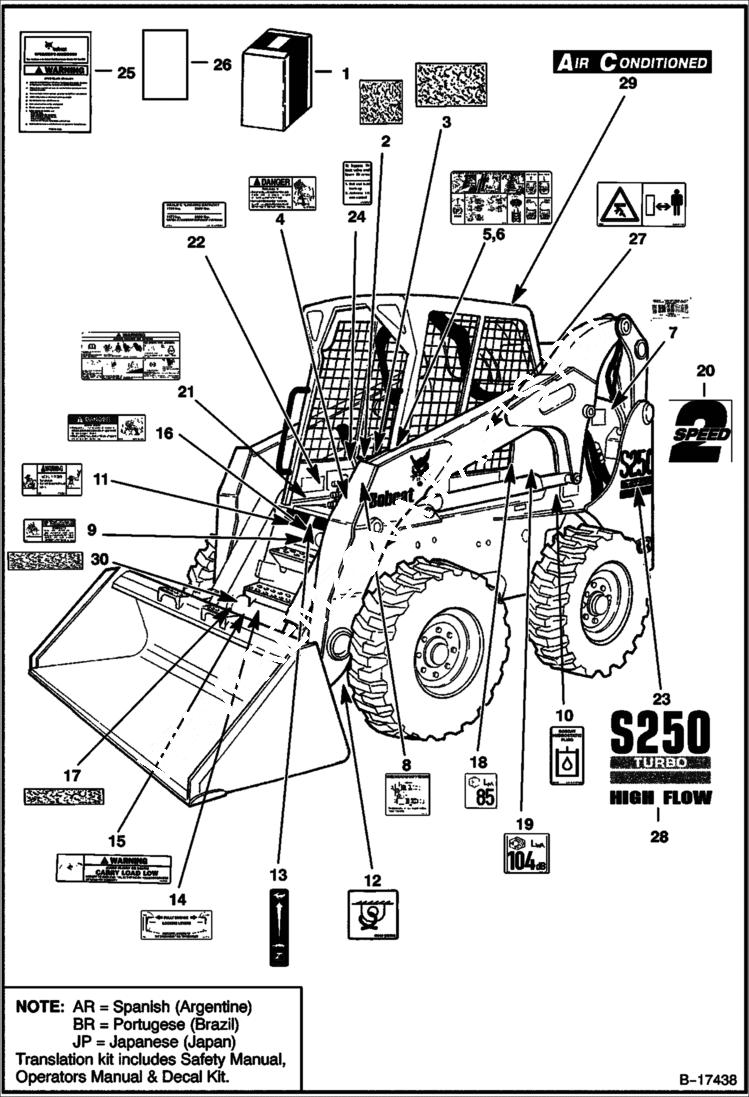

Запчасти Bobcat S-Series DECALS ACCESSORIES & OPTIONS

1

6902076

KIT decal - Ref. 2-19, 21-27 - Was 6725035 - D

1

6733796AR

TRANSLATION KIT SEE NOTE

1

6733796BR

TRANSLATION KIT SEE NOTE

1

6733759AR

KIT decal - SEE NOTE

1

6733759BR

KIT decal - SEE NOTE

1

6733759JP

KIT decal - SEE NOTE

2

6553976

SAFETY TREAD 127 x 203 mm (5 x 8'')

3

6554100

TREAD 76,2 x 152,4 mm (3 x 6'')

4

6717343

DECAL, DANGER

5

6727926

DECAL, OPERATION hand & foot controls - not in kit - Was 6728327 - A

6

6727926

DECAL, OPERATION hand & foot controls - not in kit - Was 6718703 - A

7

DECAL NLA - patent - Was 6557224 - C

8

6731757

DECAL, OPERATION to release auxiliary hyd. pressure - not in kit

9

6702301

DECAL, DANGER

10

6565990

DECAL, OIL HYD 5 hydrostatic fluid fill

11

6732696

DECAL, WARNING

12

6727595

DECAL Was 6595014 - B

13

6735140

DECAL, THROTTLE Was 6557565 - A

14

6561383

DECAL, OPERATION 5 Bob-Tach locking levers

15

6579528

DECAL, WARNING carry load low

16

6702302

DECAL, DANGER

17

SAFETY TREAD NLA - 6 in. x 22 in. (152 mm x 559 mm) - Order 7108222 - Was 6732911 - A

17

7108222

SAFETY TREAD 22.5'' (571,5 mm) wide irregular shape

18

6579385

DECAL noise warning - Europe only

19

6731994

DECAL, DECIBEL noise level - 104db - European - not in kit

20

6729078

DECAL 2-speed - not in kit

21

6728539

DECAL warning - Was 6718698

22

7177808

DECAL, ROC 1134 kg (2500 lbs) - Was 6733924 - A

23

6732444

DECAL model number S250

24

6711840

DECAL manual lift release

25

6719563

HANDBOOK, OPERATOR'S W/wire rope

25

6558309

WIRE ROPE bulk - sold per foot - Also Order (2) of 6558310 sleeve

25

6558310

SLEEVE wire rope

25

84G3112

BOLT 5

26

6901751

MANUAL operator

27

6713507

DECAL stay clear - Europe only - not in kit

28

6727913

DECAL high flow

29

6729077

DECAL air conditioned - not in kit

30

6555341

SAFETY TREAD 3'' x 12'' (76 x 305 mm)
