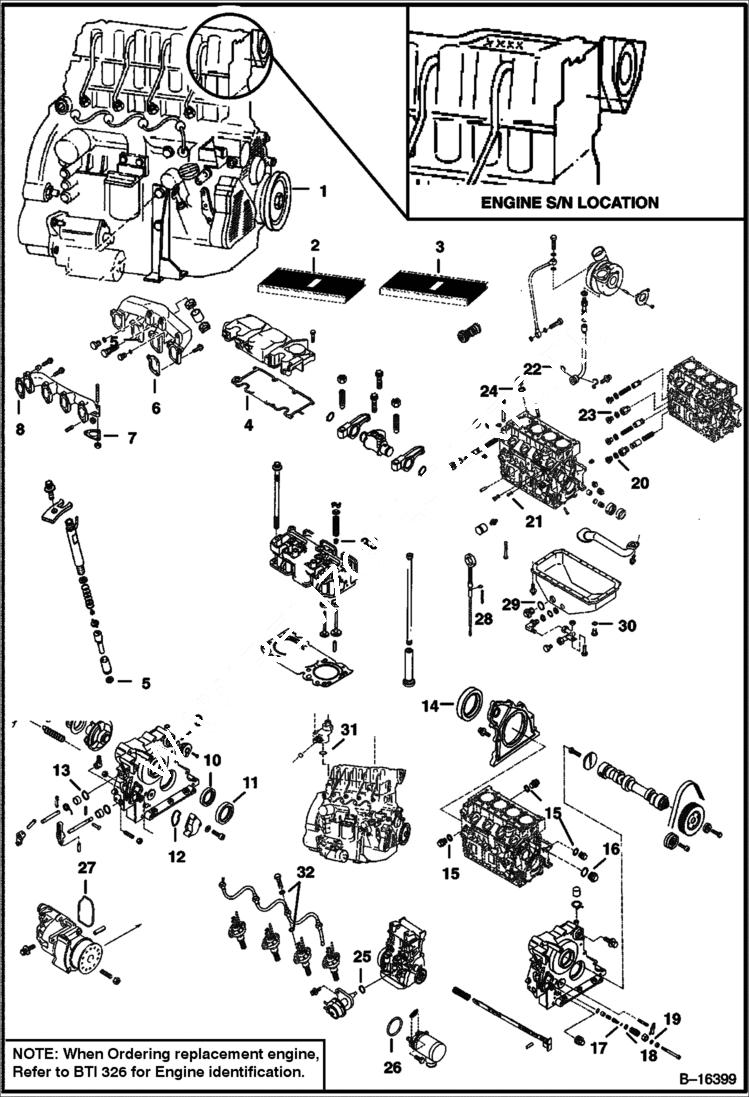

Запчасти Bobcat S-Series ENGINE & GASKET KITS POWER UNIT

1

ENGINE See BTI352 - NLA - Also includes fuel shut off harness (6686716) - Does not include starter, alternator, flywheel, or flywheel housing - Order 6686497 engine (Tier II) - A

1

6672128REM

ENGINE, DEUTZ BF4M1011F - LONG STROKE does not include Starter, Alternator, Flywheel, Pump Mount or Turbo

2

6679134

GASKET KIT See Illustration CYLINDER HEAD & COVER/ B17425 UPPER - REF. 4-9 - FOR ORDERING CORRECT HEAD GASKET - NOT INCLUDED IN KIT

3

6668899

GASKET KIT lower - Ref. 10 - 33

4

6672489

GASKET, COVER HEAD CYL See Illustration CYLINDER HEAD & COVER/ B17425

5

6666492

SEAL RING See Illustration FUEL INJECTION SYSTEM/ B17431 Was 6666479 - B

6

6670315

GASKET See Illustration MANIFOLDS/ B17422 Was 6666425 - B

7

6666473

GASKET See Illustration MANIFOLDS/ B17422

8

6666472

GASKET See Illustration MANIFOLDS/ B17422

9

6669643

O-RING See Illustration FRONT COVER/ B17429

10

6666731

SEAL See Illustration FRONT COVER/ B17429 front main

11

6666730

SEAL See Illustration FRONT COVER/ B17429 front main - crankshaft

12

6666753

WASHER See Illustration FRONT COVER/ B17429

13

6666714

O-RING See Illustration FRONT COVER/ B17429

14

6666490

SEAL See Illustration CAMSHAFT/ B17426 lip - rear main

15

6666393

SEAL RING See Illustration CRANKCASE/ B17298

16

6666394

SEAL RING See Illustration CAMSHAFT/ B17426

17

6666410

O-RING See Illustration CAMSHAFT/ B17426

18

6666408

O-RING See Illustration CAMSHAFT/ B17426

19

6666426

SEAL RING See Illustration CAMSHAFT/ B17426

20

6668887

O-RING See Illustration CRANKCASE/ B17298

21

6666699

WASHER See Illustration CRANKCASE/ B17298

22

6666401

O-RING See Illustration PISTON & CRANKSHAFT/ B14311

23

6666395

SEAL RING See Illustration CRANKCASE/ B17298

24

6666393

SEAL RING See Illustration CRANKCASE/ B17298

25

6688197

O-RING See Illustration FUEL INJECTION SYSTEM/ B17431 Was 6666420 - A

26

6666409

O-RING See Illustration FUEL INJECTION SYSTEM/ B17431

27

6666760

SEAL RING See Illustration OIL PUMP/ B14320

28

6666439

O-RING See Illustration OIL PAN/ B17299

29

6668694

SEAL See Illustration OIL PAN/ B17299

30

6666394

SEAL RING See Illustration OIL PAN/ B17299

31

6666712

O-RING See Illustration COOLING SYSTEM/ PE1545

32

6668935

SEAL RING See Illustration FUEL INJECTION SYSTEM/ B17431

33

6666460

SEAL See Illustration CYLINDER HEAD & COVER/ B17425
