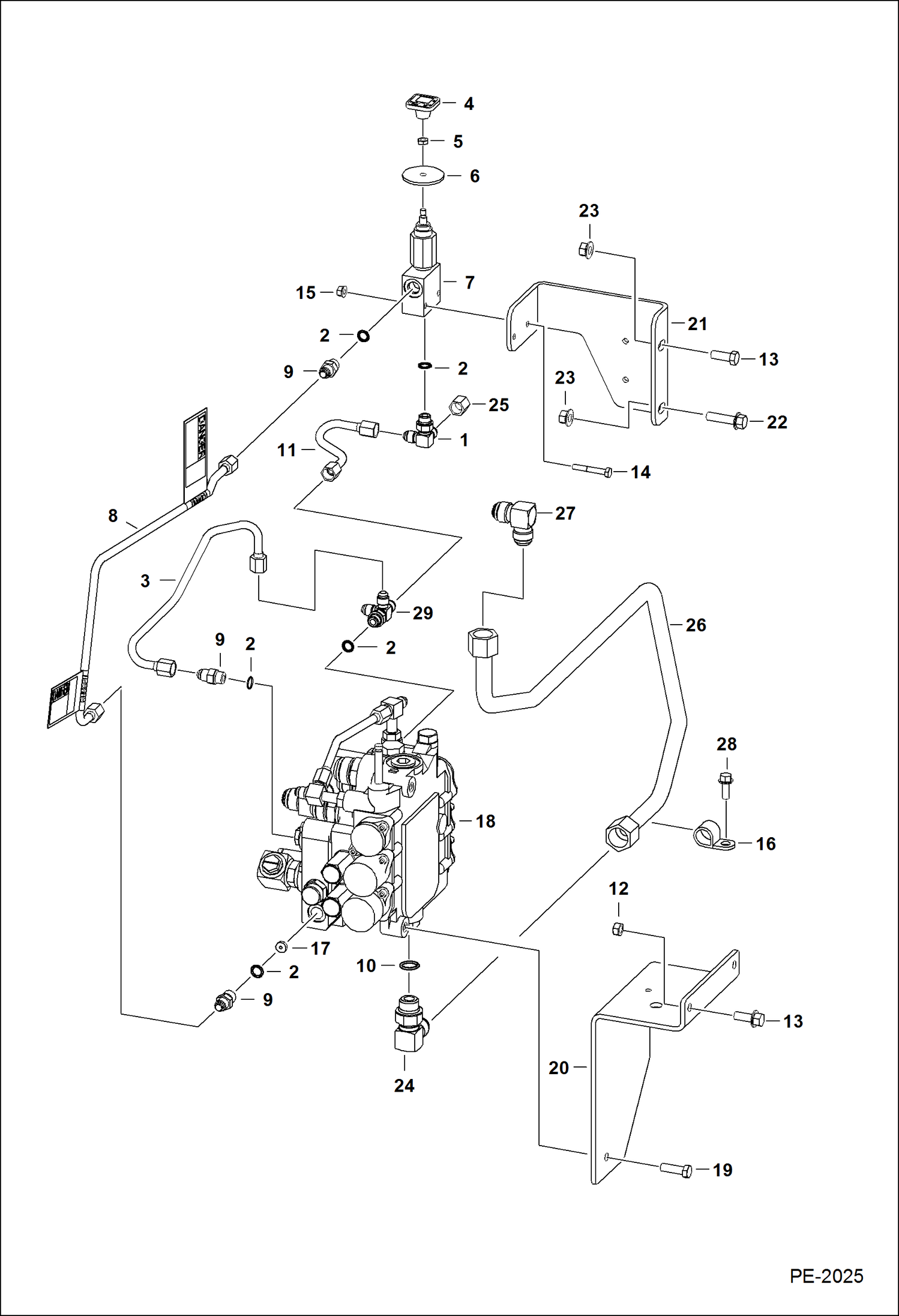

Запчасти Bobcat S-Series LIFT & TILT CONTROL CIRCUITRY (S/N 523211001, 523311001 & Above) (S/N 526211001-13999, 526311001-11999) HYDRAULIC SYSTEM

1

6725182

TEE W/Ref. 2

2

79K6

O RING 10

3

6732458

TUBELINE

4

6737524

KNOB red square - Was 6668913 - A

5

7D4

NUT

6

6707101

SEAL neoprene

7

7230495

VALVE, LIFT MANUAL See Illustration MANUAL LIFT RELEASE VALVE/ PE1547 - manual lift release - Was 6667844 - A

8

7101184

TUBELINE available only as an assembly W/two danger decals installed - Was 6732455 - A

8

6809511

DECAL, DANGER

9

15KB0606

FITTING, HYD CONNECTOR W/Ref. 2

10

79K12

O RING 10

11

TUBELINE NLA - Order 7109647 - Was 6732464 - A

11

7109647

HOSE

12

85D6

NUT, 5

13

35C616

BOLT 5

14

17C428

BOLT

15

83D4

NUT 10

16

30H46

CLIP

17

6668791

ORIFICE

18

VALVE See Illustration HYDRAULIC CONTROL VALVE/ PE1745 See Illustration HYDRAULIC CONTROL VALVE/ PE2017 CONTROL

19

17C620

BOLT

20

6735728

MOUNT

21

6718881

BRACKET

22

17C624

BOLT 5

23

83D6

NUT 5

24

17KB1212

FITTING, HYD ELBOW W/Ref. 10

25

36K5

CAP

26

6735295

TUBELINE

27

77F8

ELBOW

28

84G3716

SCREW 5

29

6718031

TEE W/Ref. 2
