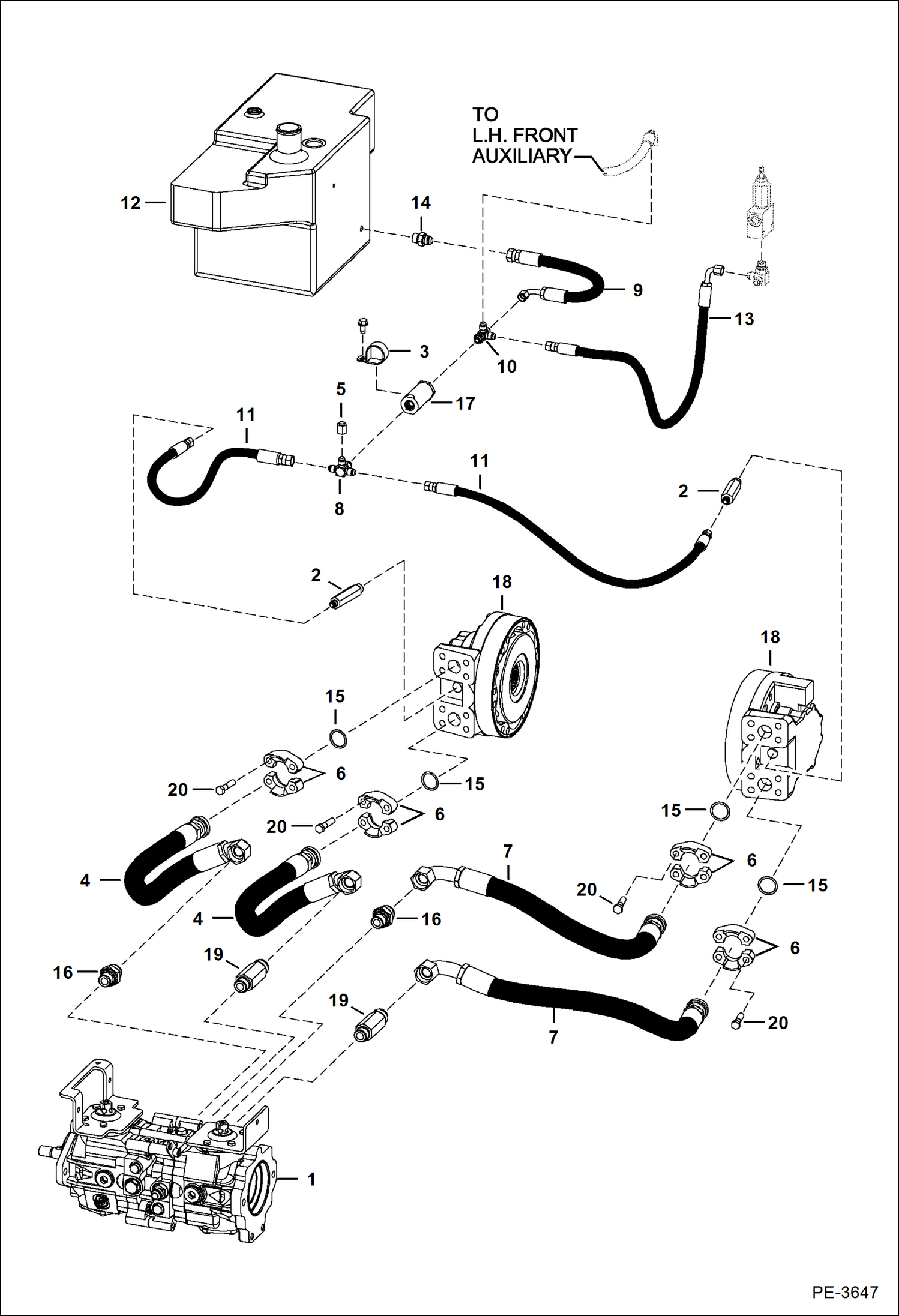

Запчасти Bobcat S-Series HYDROSTATIC CIRCUITRY (W/Motors) (Manual Controls, AHC & ACS) HYDROSTATIC SYSTEM

1

PUMP See Illustration HYDROSTATIC PUMP/GEAR PUMP/ PE2824

2

6717306

ADAPTER

2

79K6

O RING 10

3

30H79

CLAMP

4

6673954

HOSE mega seal

5

36K5

CAP

6

20J16

FLANGE

7

6679141

HOSE 33'' (838, 2) mm long - mega seal

7

7185168

HOSE, HYD 34'' (863,6 mm) long - mega seal

8

6725497

CROSS

8

79K6

O RING 10

9

6733219

HOSE

10

6718031

TEE

10

79K6

O RING 10

11

7126010

HOSE 2 straight ends

12

6731209

TANK hydraulic

13

6732483

HOSE

14

15KB0808

FITTING, HYD CONNECTOR

14

79K8

O RING 10

15

55K219

O'RING

16

15KB1612

FITTING, HYD CONNECTOR

16

79K12

O RING 10

17

6661022

FILTER, OIL HYD IN-LINE See Illustration HYDROSTATIC OIL FILTER/ B13527 - 90 micron

18

MOTOR See Illustration HYDROSTATIC MOTOR/ MS2199 - drive

19

6716243

ADAPTER

19

79K12

O RING 10

20

17C728

BOLT
