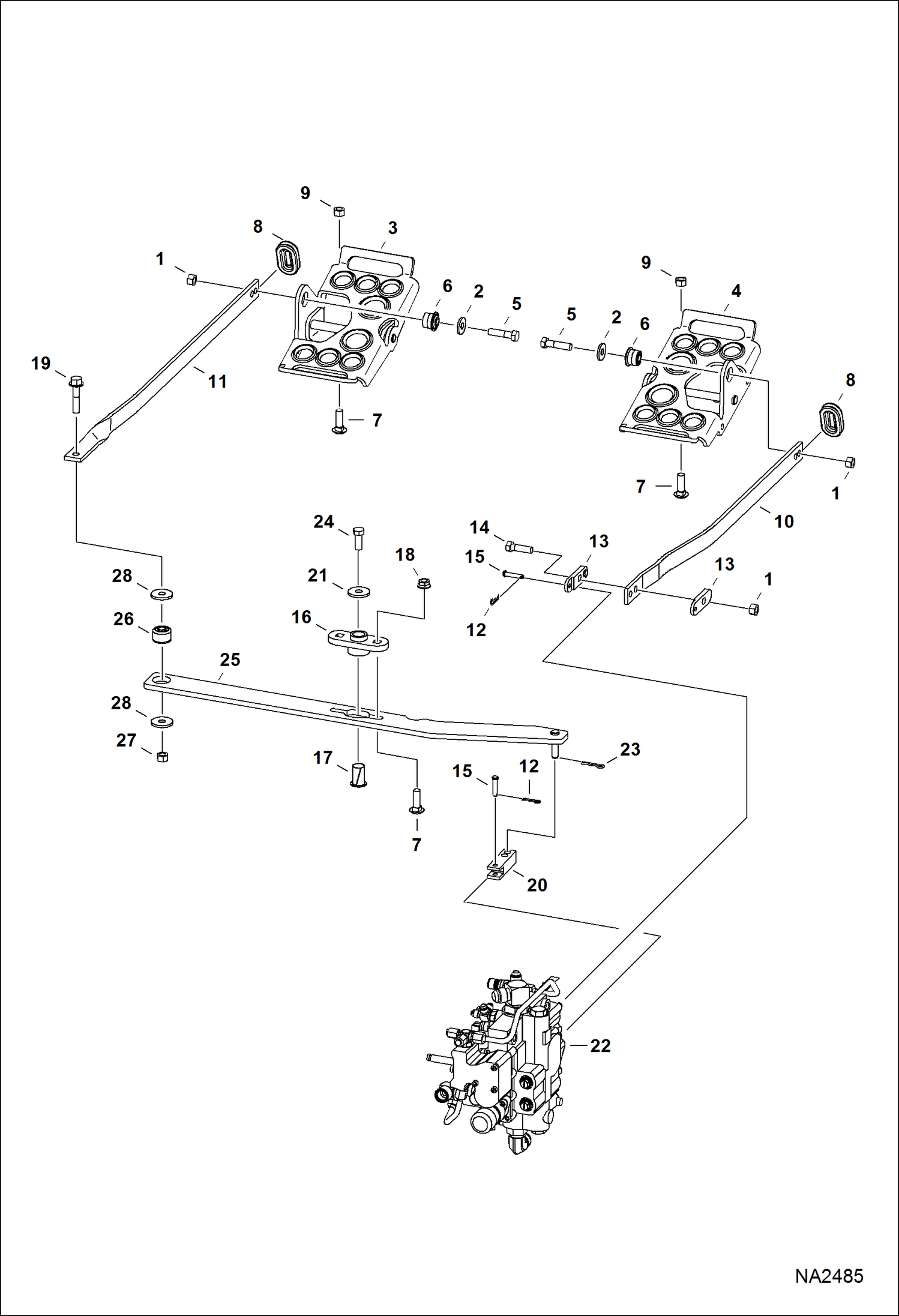

Запчасти Bobcat S-Series CONTROL PEDALS HYDRAULIC SYSTEM

1

95D6

NUT

2

6563914

WASHER

3

7123941

PEDAL ASSEMBLY LH - W/Ref. 6

4

7123942

PEDAL ASSEMBLY RH - W/Ref. 6

5

17C624

BOLT 5

6

6665701

BUSHING, PRESS FIT

7

37C620

BOLT

8

6577961

GROMMET

9

57D6

NUT 5

10

6731251

BAR

11

6731252

BAR

12

6513495

COTTER PIN

13

6708009

LINK

14

17C620

BOLT

15

6564654

PIN

16

6708043

BUSHING

17

6512026

BUSHING

18

53D6

NUT

19

49C628

BOLT

20

6706105

YOKE

21

619021

WASHER, 5

22

VALVE See Illustration HYDRAULIC CONTROL VALVE/ PE2379 See Illustration HYDRAULIC CONTROL VALVE/ PE2378

23

1306637

CLIP

24

17C616

BOLT 5

25

7122324

LEVER flat

26

6685060

BUSHING, TORSION

27

63D6

NUT

28

6737388

WASHER
