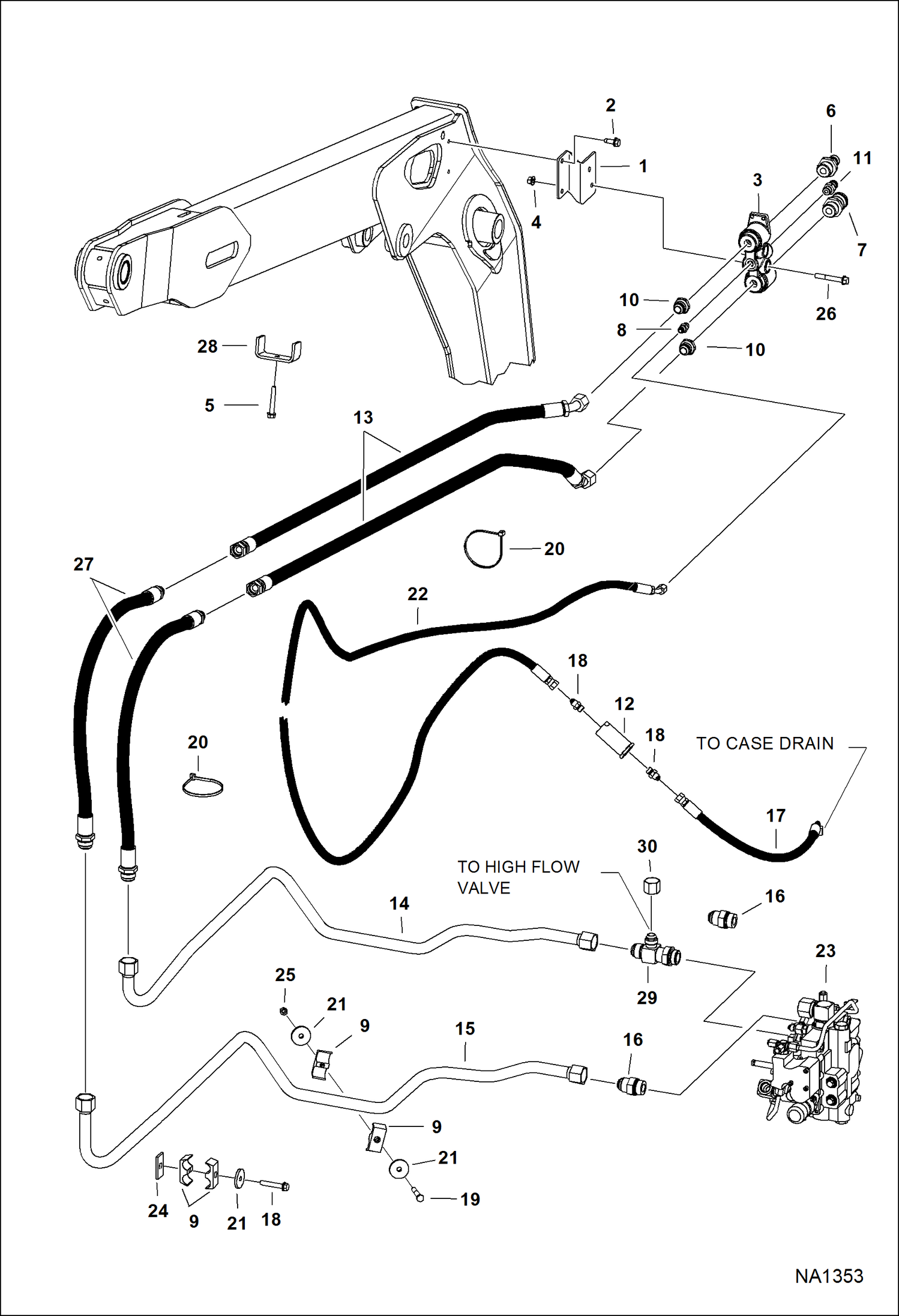

Запчасти Bobcat S-Series AUXILIARY HYDRAULICS HYDRAULIC SYSTEM

1

7102414

BRACKET

2

84G3716

SCREW 5

3

6678076

BLOCK Ref. 6, 7 & 11 & (2) of Ref. 10

4

83D6

NUT 5

5

84G3740

BOLT

6

6679837

COUPLER

6

6679841

SEAL blue - front

6

6680020

SEAL KIT (3) O-rings & (3) back-up washers

7

KIT coupler - female - FF - Order 6680018 coupler kit

7

6680020

SEAL KIT (3) O-rings & (3) back-up washers

8

15KB0606

FITTING, HYD CONNECTOR

9

6729320

CLAMP

10

6679836

ADAPTER W/spring

10

79K12

O RING 10

11

6679838

KIT, COUPLER male casedrain - W/valve, spring, seal & O-ring

12

6661022

FILTER, OIL HYD IN-LINE See Illustration HYDROSTATIC OIL FILTER/ B13527 - 90 micron

13

6736351

HOSE

14

7114816

TUBELINE Use W/Ref. 16 (15KB1616 adapter)

14

7141732

TUBELINE, HYD Use W/Ref. 29 (7141697 tee)

15

7114827

TUBELINE

16

15KB1616

FITTING, HYD CONNECTOR

16

79K16

O RING 10

17

7106215

HOSE

18

7106215

HOSE

19

17C640

BOLT 5

20

6624289

STRAP, TIE

21

872229

WASHER

22

7101377

HOSE

23

VALVE See Illustration HYDRAULIC CONTROL VALVE/ PE2379 - control

24

7113465

SPACER

25

59D6

NUT

26

31C644

BOLT

27

6736350

HOSE

28

6735796

CLAMP

29

7141697

TEE Use W/Ref. 14 (7141732 tubeline)

30

36K8

CAP standard flow only
