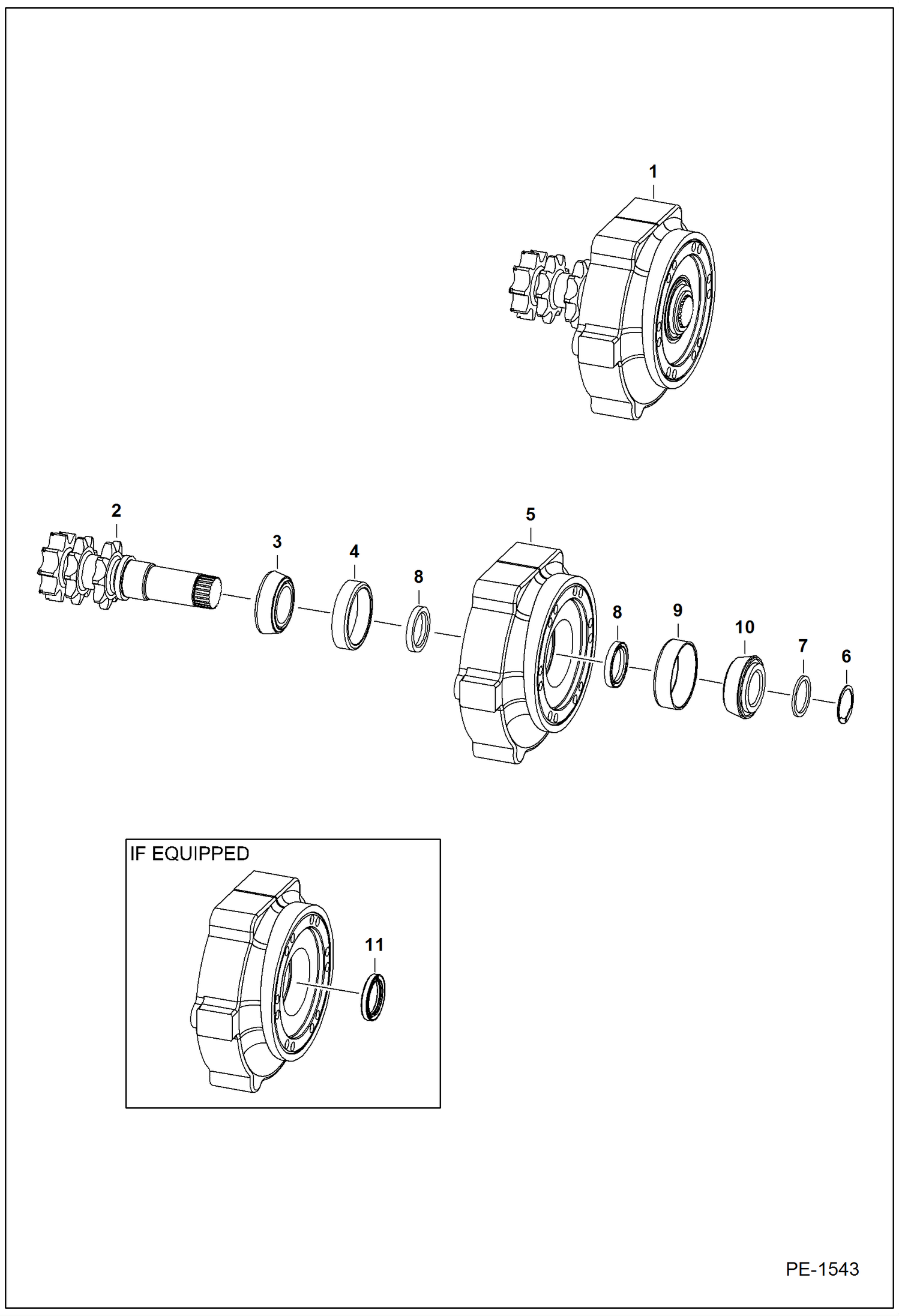

Запчасти Bobcat S-Series MOTOR CARRIER (Drive Motor Mount Assy) (Manual Controls, AHC, ACS) DRIVE TRAIN

1

6717296

MOUNT ASSY drive motor - Ref. 2-10

2

6706805

SHAFT, TRANS W/snap ring groove

3

6664845

CONE, BEARING

4

6650120

RACE

5

HOUSING NLA - Order Ref. 1 - Was 6717242 - A

6

6664848

SNAP RING .062'' (1,57mm) thick

7

6706817

SPACER .152'' (3,86mm) thickness

8

6665755

SEAL, OIL

9

CUP NLA - 59412 - Order 7100240 & 7100239 Bearing - Was 6664847 - A

9

7100240

RACE HM807010 or HM807010-20082

10

BEARING NLA - 59200 - Order 7100239 & 7100240 Race - Was 6664846 - A

10

6693525

BEARING Was 7100239 - B
