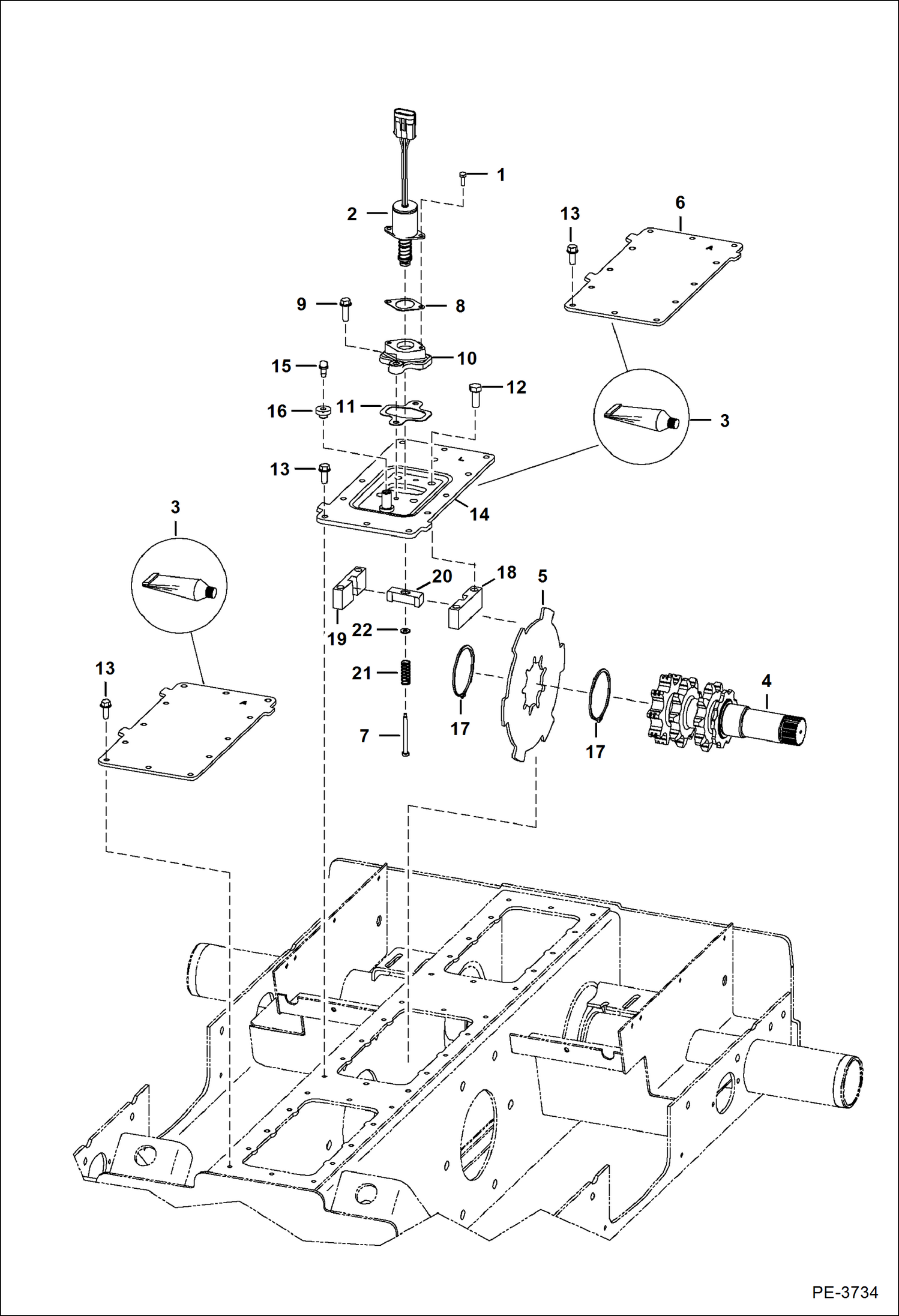

Запчасти Bobcat S-Series TRANSMISSION COVERS (W/Disc Brake) DRIVE TRAIN

1

17C412

BOLT 5

2

6681512

SOLENOID Was 7136559 - D

3

6685372

SEALANT, GASKET LIQUID 10.1 OZ tube - 0.57 kg (20 oz)

4

SHAFT See Illustration MOTOR CARRIER/ PE3329 - manual hand controls

5

7126213

DISC

6

7129987

COVER

7

6708267

BOLT

8

6706737

GASKET

9

84G3720

BOLT

10

6706718

MOUNT

11

6708016

GASKET

12

47C820

BOLT

13

84G3716

SCREW 5

14

7156264

COVER L stamped

15

6680970

BREATHER

16

6553411

BUSHING

17

6690163

RING

18

6719057

BLOCK guide - RH

19

6719056

BLOCK guide - LH

20

6714278

WEDGE, LOCK TRACTION for brake disc

21

6708018

SPRING

22

25E13

WASHER 5
