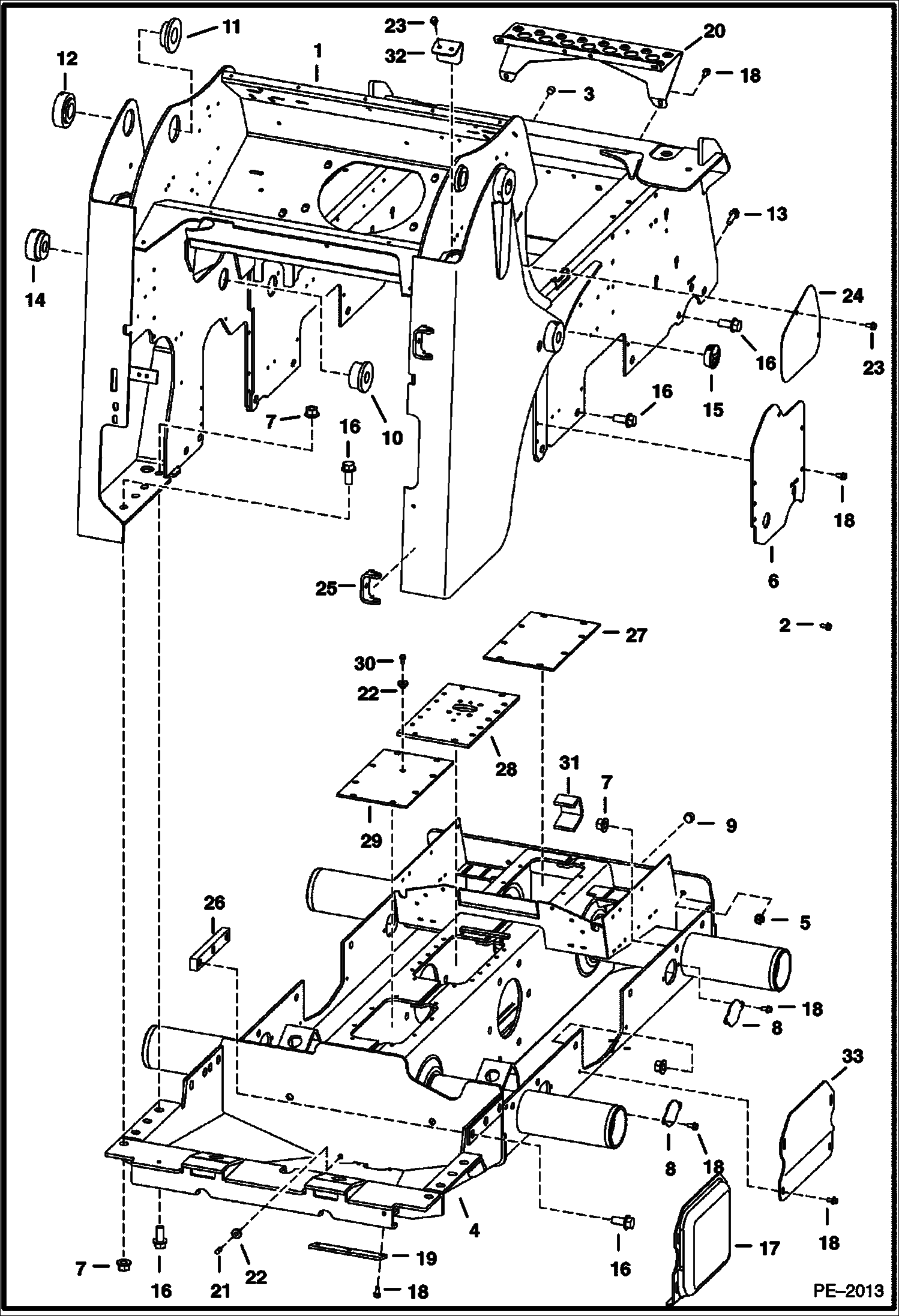

Запчасти Bobcat S-Series MAIN FRAME MAIN FRAME

1

MAINFRAME-T250 NLA - Order 7101454 & 7166136 adapter for the cooling fan - modify the crossmember for radiator - Was 6733718 - A

1

7101454

MAIN FRAME

1

7114934

STOP See BTI379 weld on - 1'' thick - Was 6733784 - A

2

84G3710

SCREW

3

6679966

PLUG

4

CHAINCASE See Illustration DRIVE TRAIN/ PE1537 FRAME ONLY

5

53D12

NUT Was 83D000008B - B

6

6736768

COVER

7

53D12

NUT Was 83D000012B - A

8

6730078

COVER

9

6731121

PLUG chaincase fill

10

6730785

BUSHING inside upright weld-on

11

6729401

BUSHING inside upright weld-on

12

6729402

BUSHING outside upright weld-on

13

31C824

BOLT 10

14

6730784

BUSHING outside upright weld-on

15

6718796

PLUG Bobcat head

16

31C1228

BOLT

17

6719168

COVER 2 speed

18

84G3712

BOLT 5

19

6700182

COVER, DRAIN

20

6732577

STEP, MFR

21

6599645

PLUG, STEEL chaincase drain

22

6553411

BUSHING

22

6553411

BUSHING

23

84G3708

SCREW

24

6733740

COVER

25

6708987

HINGE, WELD-ON

26

6706857

BLOCK threaded

27

COVER See Illustration DISC BRAKE/ PE1542

28

COVER See Illustration DISC BRAKE/ PE1542

29

COVER See Illustration DISC BRAKE/ PE1542

30

BREATHER See Illustration DISC BRAKE/ PE1542

31

6706485

HOOK tie down - weld-on

32

6736121

HOSE COVER

33

6719201

COVER single speed
