Запчасти Bobcat S-Series HYDROSTATIC MOTOR (Single Speed) HYDROSTATIC SYSTEM

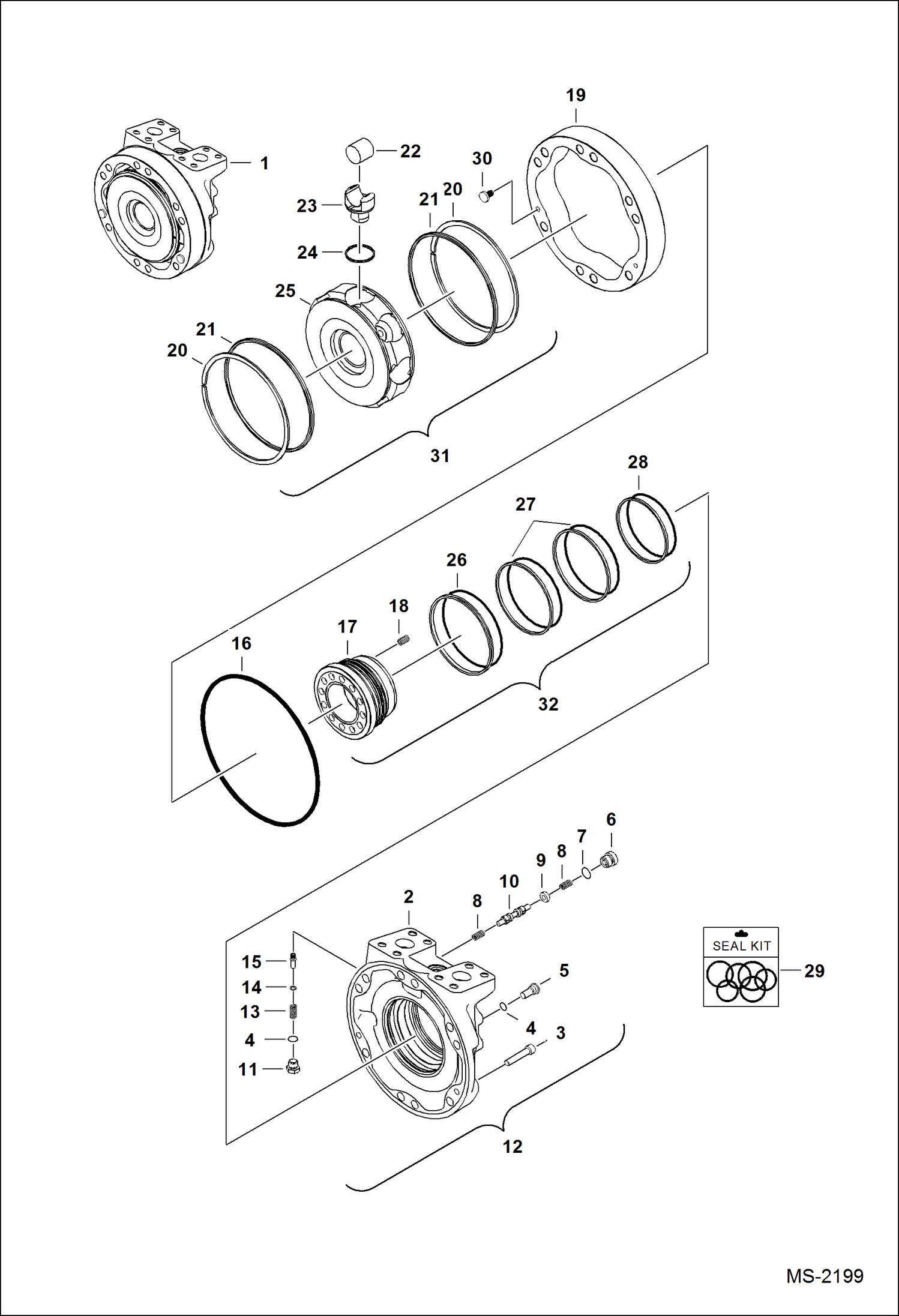

Схема запчастей Bobcat S-Series - HYDROSTATIC MOTOR (Single Speed) HYDROSTATIC SYSTEM

Артикул

Название

Примечание

Количество

1

6687825

MOTOR, DRIVE HYD Model R921810312

2

6674341

HOUSING Was 6690026 - A

3

6690039

SCREW

4

6676038

O-RING Was 6689132 - A

5

6674340

PIN Was 7020788 - A

6

6691227

PLUG Was 6688866 - A

7

6689133

O-RING

8

6674841

SPRING Was 6690042 - A

9

6675867

WASHER Was 6690043 - A

10

6675866

SPOOL Was 6690041 - A

11

6674345

PLUG Was 6690047 - A

12

REAR HOUSING ASSY. NSS- Order individual parts or Ref. 1

13

6674344

SPRING Was 6690046 - A

14

6674343

SHIM Was 6690044 - A

15

6675868

POPPET Was 6690045 - A

16

6675864

QUAD RING Was 6690033 - A

17

6674184

RING Was 6690027 - A

18

6674037

SPRING Was 6690031 - A

19

6690025

CAM

20

6674035

SNAP RING Was 6690023 - A

21

6674036

RING Was 6690024 - A

22

6690022

ROLLER

23

6689126

PISTON

24

6690048

RING

25

6690021

BLOCK

26

6674040

SEAL W/ O-ring - 87,15 mm I.D. - Was 6690028 - A

27

6675228

SEAL Was 6690049 - A

28

6674038

SEAL Was 6690029 - A

29

6676021

KIT, SEAL Was 6690004 - A

30

6688449

LOCATING PIN

31

6690158

ROTOR GROUP Ref. 21-25

32

KIT, RING AND SEALS NSS- Order individual parts or Ref. 1

Выбрано товаров: 32
