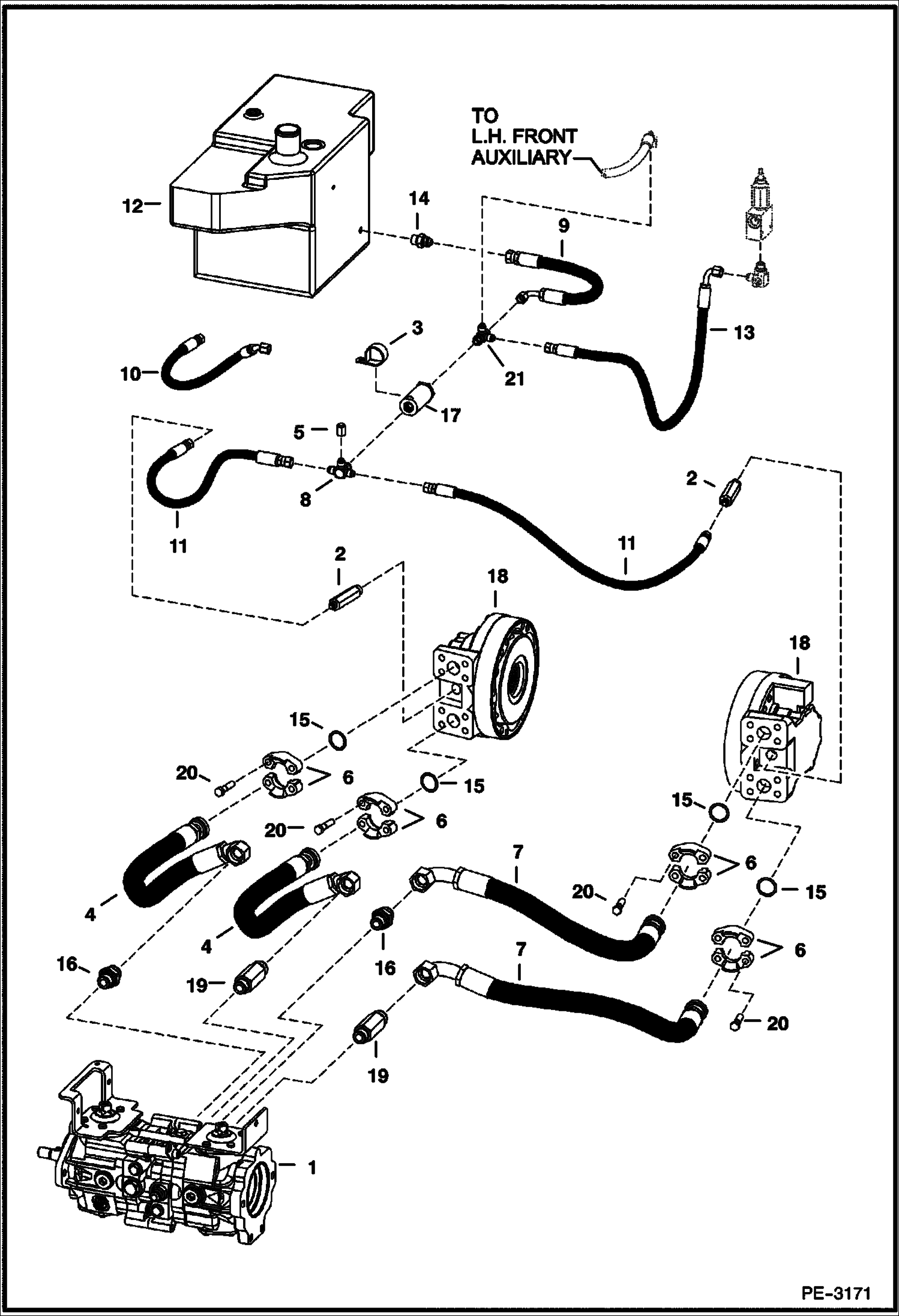

Запчасти Bobcat S-Series HYDROSTATIC CIRCUITRY (W/Motors) (Manual Controls, AHC & ACS) HYDROSTATIC SYSTEM

1

PUMP See Illustration HYDROSTATIC PUMP/GEAR PUMP/ PE2824

2

6717306

ADAPTER

2

79K6

O RING 10

3

30H79

CLAMP

4

6673954

HOSE mega seal

5

36K5

CAP

6

20J16

FLANGE

7

6679141

HOSE 33'' (838,2 mm) long - mega seal

8

6725497

CROSS

8

79K6

O RING 10

9

6733219

HOSE

10

6732484

HOSE 1 straight end & (1) 45 degree end - can use Ref. 11

11

7126010

HOSE 2 straight ends - Was 6732485 - A

12

6731209

TANK hydraulic

13

6732483

HOSE

14

15KB0808

FITTING, HYD CONNECTOR

14

79K8

O RING 10

15

55K219

O'RING

16

15KB1612

FITTING, HYD CONNECTOR

16

79K12

O RING 10

17

6661022

FILTER, OIL HYD IN-LINE - 90 micron

18

MOTOR See Illustration HYDROSTATIC MOTOR/ MS2199 drive

19

6716243

ADAPTER

19

79K12

O RING 10

20

17C728

BOLT

21

6718031

TEE

21

79K6

O RING 10
