Запчасти Bobcat S-Series HYDROSTATIC CIRCUITRY (W/Tank) (Manual Controls, AHC, ACS) HYDROSTATIC SYSTEM

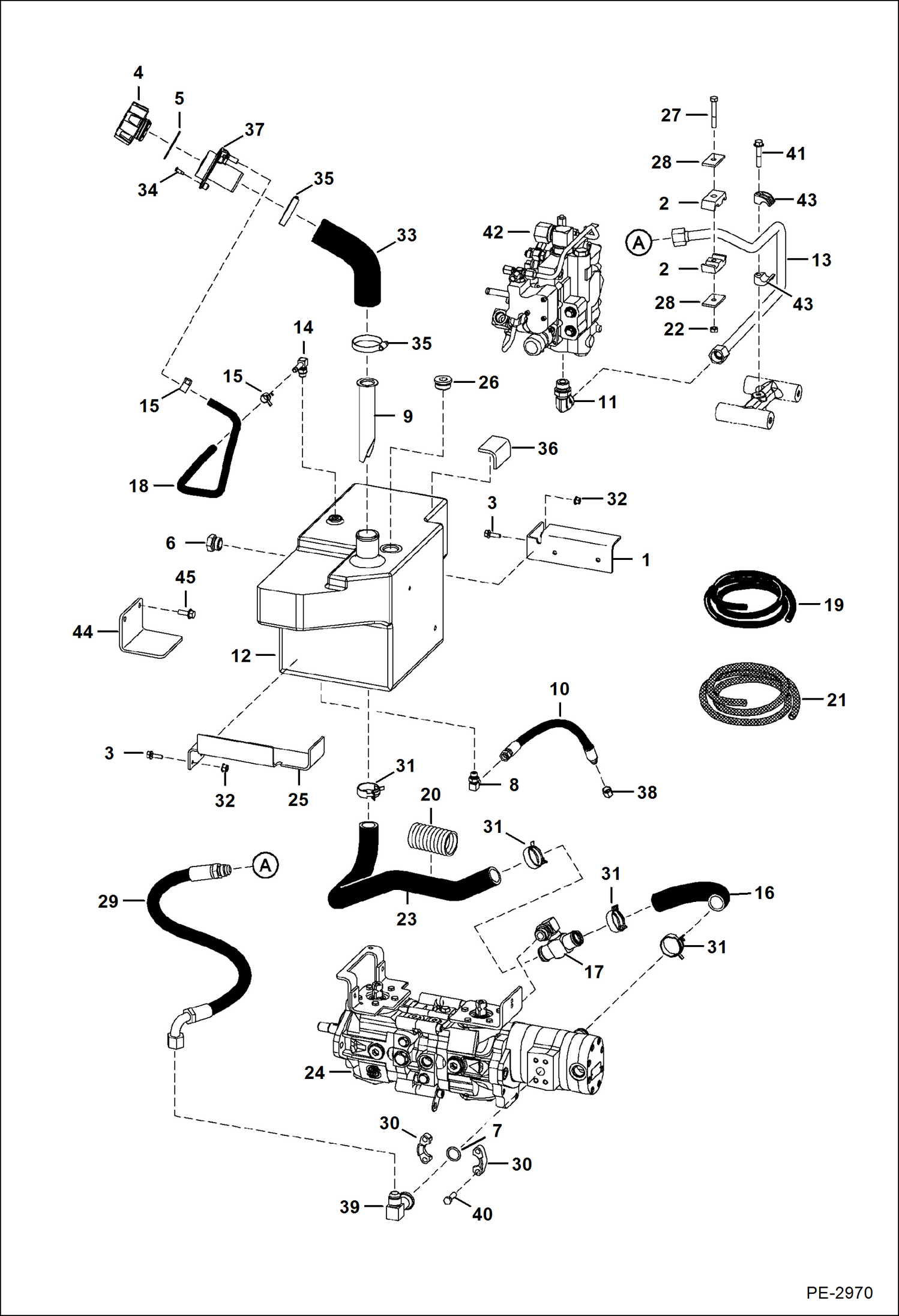

Схема запчастей Bobcat S-Series - HYDROSTATIC CIRCUITRY (W/Tank) (Manual Controls, AHC, ACS) HYDROSTATIC SYSTEM

Артикул

Название

Примечание

Количество

1

6718851

BRACKET

2

6592506

CLAMP

3

35C516

BOLT 10

4

6727475

CAP, OIL HYD breather & fill - Also Order Ref. 6

5

6700631

GASKET

6

6665915

GAUGE sight

6

79K12

O RING 10

6

6734563

WASHER KIT

6

6734561

WASHER

6

25K30118

O RING 10

7

55K214

O-RING

8

17KB0606

FITTING

8

79K6

O RING 10

9

7120881

SCREEN, FILLER Was 6569219 - A

10

7106212

HOSE

11

7101797

ELBOW

11

79K12

O RING 10

12

6731209

TANK hydraulic

13

7115066

TUBELINE

13

7126157

TUBELINE

14

6727313

ELBOW

14

79K6

O RING 10

15

5HM15

CLAMP

16

7109343

HOSE

17

7107785

TEE

17

79K12

O RING 10

18

HOSE NLA - 23'' (584 mm long) - Order Ref. 19

19

6586251

HOSE bulk - sold per foot

20

SHIELD NLA - 5'' (127 mm) long - Order Ref.21

21

6705749

SHIELD bulk - sold per foot

22

59D6

NUT

23

7108441

HOSE

24

PUMP See Illustration HYDROSTATIC PUMP/GEAR PUMP/ PE2824 - hydrostatic

25

6718850

BRACKET

26

47K10

PLUG tank flushing hole

26

79K16

O RING 10

27

17C644

BOLT

28

6592507

PLATE

29

7115185

HOSE

30

19J12

CLAMP

31

5HM42

HOSECLAMP

32

83D5

NUT 5

33

6731638

HOSE

34

7106279

BOLT

35

42HL250

CLAMP

36

6578278

PAD

37

6727354

INLET

38

36K5

CAP

39

7106040

ELBOW split flange

40

17C620

BOLT

41

35C632

BOLT

42

VALVE See Illustration HYDRAULIC CONTROL VALVE/ PE2379 - control

43

7100462

CLAMP

44

7135068

BRACKET

45

84G3716

SCREW 5

Выбрано товаров: 55
