Запчасти Bobcat S-Series LIFT & TILT CONTROL CIRCUITRY HYDRAULIC SYSTEM

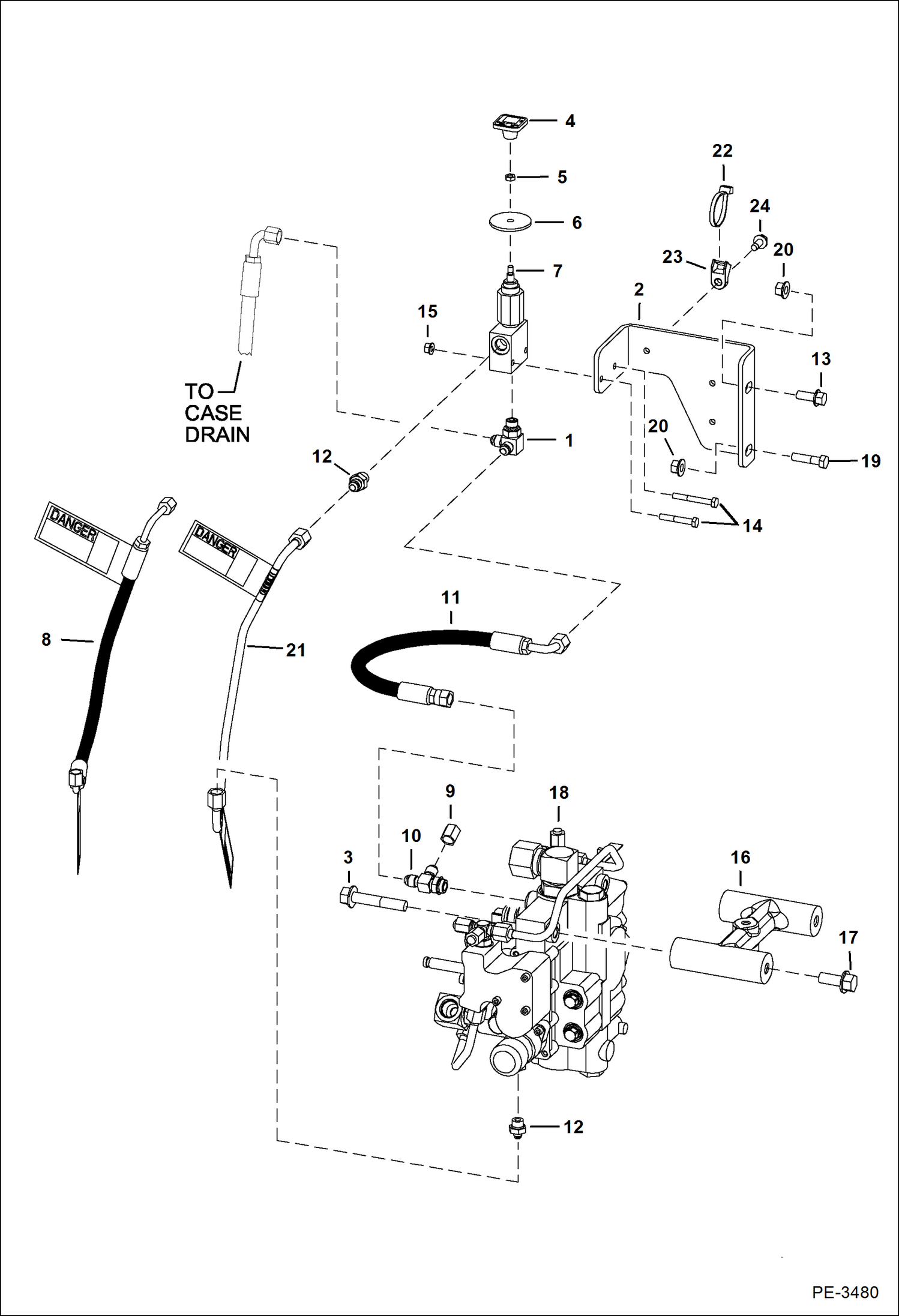

Схема запчастей Bobcat S-Series - LIFT & TILT CONTROL CIRCUITRY HYDRAULIC SYSTEM

Артикул

Название

Примечание

Количество

1

6725182

TEE

1

79K6

O RING 10

2

6718881

BRACKET

3

17C844

BOLT

4

6737524

KNOB

5

7D4

NUT

6

6707101

SEAL neoprene

7

7230495

VALVE, LIFT MANUAL manual lift - Was 6667844 - A

8

HOSE NLA - W/decals - Order 7148987 tube - Was 7103172 - A

8

6809511

DECAL, DANGER

9

36K5

CAP

10

21KB0606

FTG HYD STRAIGHT TEE

10

79K6

O RING 10

11

7110284

HOSE

12

15KB0406

FTG HYD S CONNECTOR Use W/Ref. 8

12

79K6

O RING 10

12

15KB0606

FITTING, HYD CONNECTOR Use W/Ref. 21

12

79K6

O RING 10

13

35C616

BOLT 5

14

17C428

BOLT

15

83D4

NUT 10

16

7109934

MOUNT, VALVE

17

35C820

BOLT

18

VALVE See Illustration HYDRAULIC CONTROL VALVE/ PE2378 See Illustration HYDRAULIC CONTROL VALVE/ PE2379 - control

19

35C616

BOLT 5 Was 17C624

20

83D6

NUT 5

21

7148997

TUBELINE, HYD available only as an assembly W/two danger decals installed

21

6809511

DECAL, DANGER

22

6624289

STRAP, TIE

23

6678667

MOUNT

24

84G3112

BOLT 5

Выбрано товаров: 31
