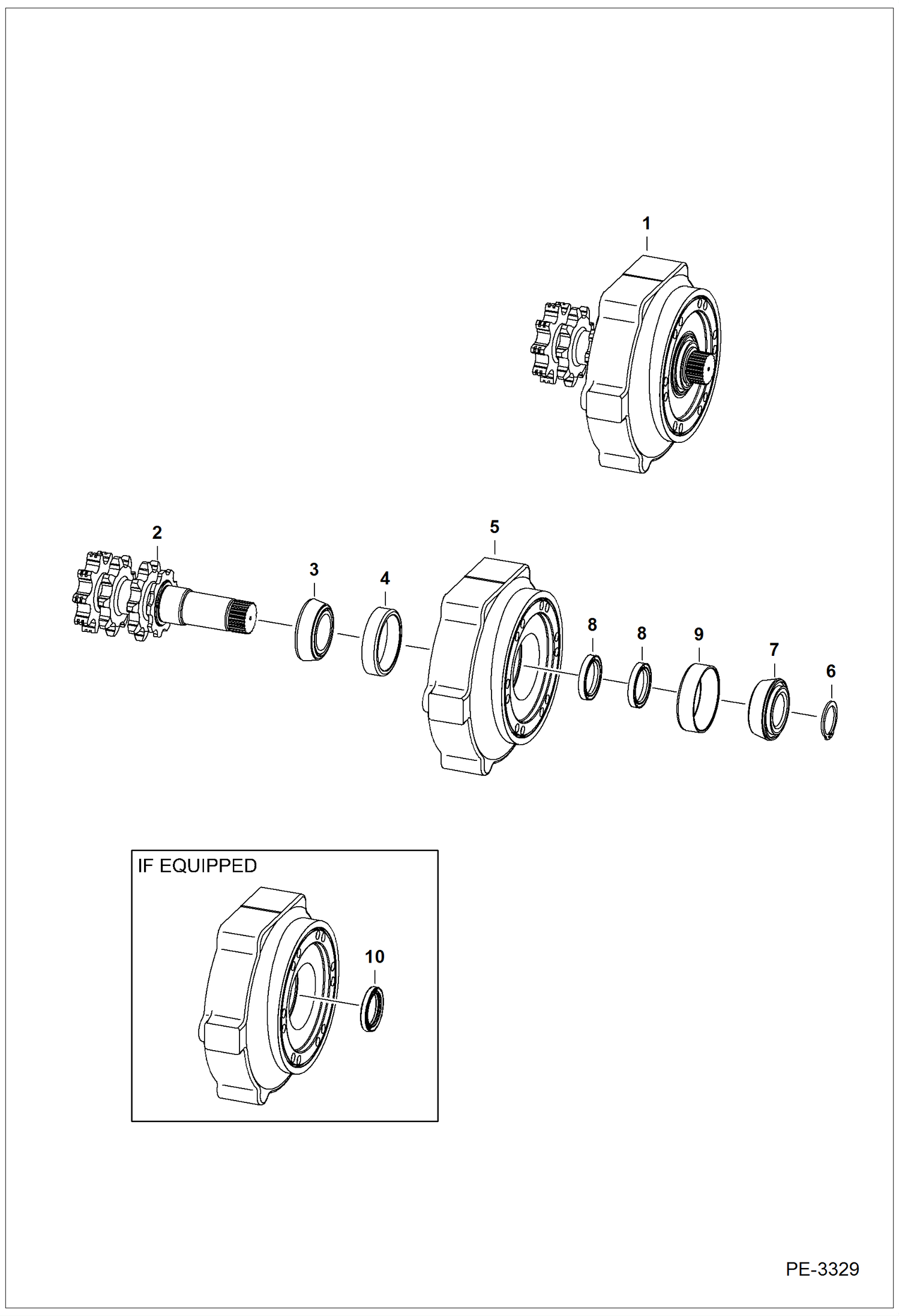

Запчасти Bobcat S-Series MOTOR CARRIER (Drive Motor Mount Assy) (Manual Controls, AHC, & ACS) (S/N 530714319 & Above) (S/N 530811606 & Above) DRIVE TRAIN

1

7214470

CARRIER, MOTOR drive motor - Ref. 2-8 - Was 7126215 - A

2

7147579

SHAFT TRANS

3

6664845

CONE, BEARING

4

6650120

RACE

5

HOUSING NLA - Order Ref. 1 - Was 7214469 - A

6

6693415

RING

7

6693525

BEARING

8

6665755

SEAL, OIL

9

7100240

RACE

10

SHAFT, TRANS NLA - Order Ref. 6, 7 & 10 - Was 7126214 - A

11

SNAP RING NLA - Order Ref. 6 & 7

12

SPACER NLA - Order Ref. 6 & 7

13

BEARING NLA - Order Ref. 6 & 7
