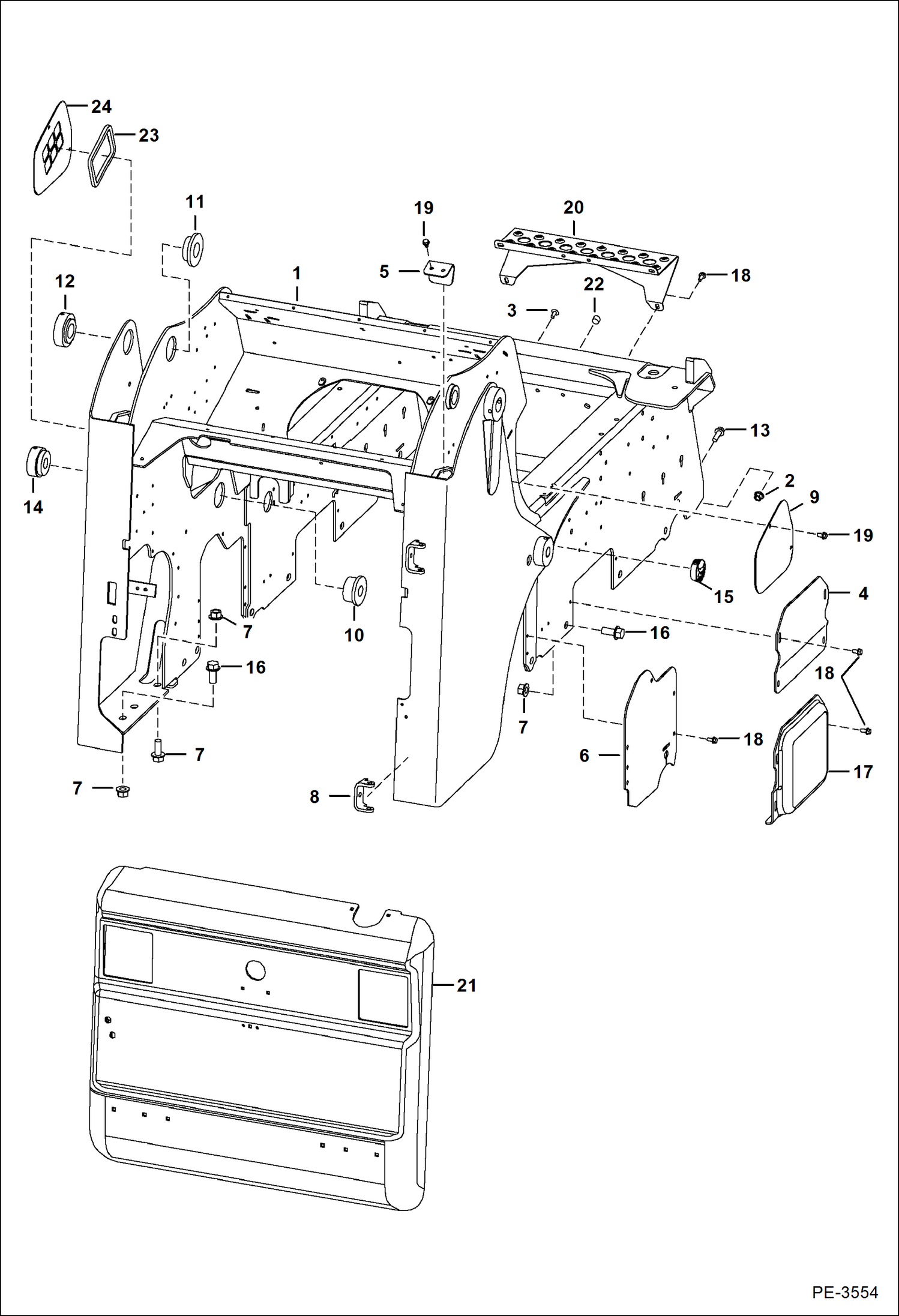

Запчасти Bobcat S-Series MAIN FRAME (S/N 530740069 & Above) MAIN FRAME

1

7147407

FRAME, MAIN ASSY

1

7114934

STOP See BTI379 weld on - 1'' thick - Was 6733784 - A

2

83D8

NUT 5

3

6679966

PLUG

4

6719201

COVER

5

6736121

HOSE COVER

6

7124839

COVER

7

53D12

NUT

8

6708987

HINGE, WELD-ON

9

6733740

COVER

10

6730785

BUSHING inside upright weld-on

11

6729401

BUSHING inside upright weld-on

12

6729402

BUSHING outside upright weld-on

13

31C824

BOLT 10

14

6730784

BUSHING outside upright weld-on

15

6718796

PLUG Bobcat head

16

31C1228

BOLT

17

6719168

COVER 2 speed

18

84G3712

BOLT 5

19

84G3708

SCREW

20

6732577

STEP, MFR

21

6729991

REAR DOOR

22

6669308

RETAINER

23

7126496

SEAL

24

7124567

COVER W/vent holes
