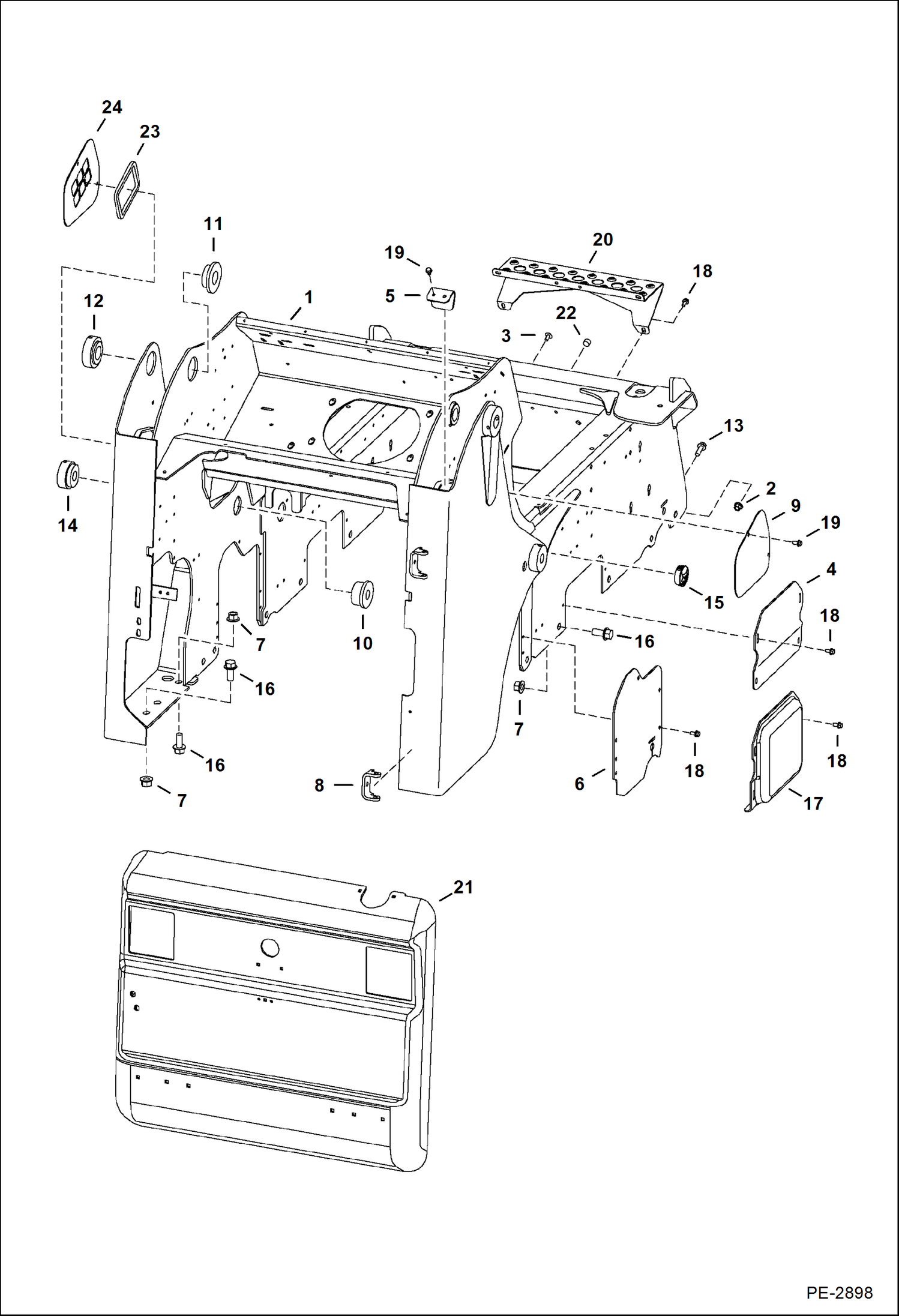

Запчасти Bobcat S-Series MAIN FRAME (S/N 530740068 & Below) MAIN FRAME

1

MAIN FRAME See Illustration HYDROSTATIC CIRCUITRY/ PE3280 - NLA - Order 7147407 - Also Order 7142858, 7142859 tubelines, 7142876 bulkhead mount, & (3) of 84G3712 screw - if cooling has not been upgrad

1

MAIN FRAME See Illustration HYDROSTATIC CIRCUITRY/ PE3280 - NLA - Order 7147407 - Also Order 7142858, 7142859 tubelines, 7142876 bulkhead mount, & (3) of 84G3712 screw - Was 7124886 - A

1

7114934

STOP See BTI379 weld on - 1'' thick - Was 6733784 - A

2

83D8

NUT 5

3

6679966

PLUG

4

6719201

COVER

5

6736121

HOSE COVER

6

COVER NLA - Order 7124839 and remove and discard Ref. 16 bolt that interferes with cover - Was 7107573 - A

6

7124839

COVER

7

53D12

NUT

8

6708987

HINGE, WELD-ON

9

6733740

COVER

10

6730785

BUSHING inside upright weld-on

11

6729401

BUSHING inside upright weld-on

12

6729402

BUSHING outside upright weld-on

13

31C824

BOLT 10

14

6730784

BUSHING outside upright weld-on

15

6718796

PLUG Bobcat head

16

31C1228

BOLT

17

6719168

COVER 2 speed

18

84G3712

BOLT 5

19

84G3708

SCREW

20

6732577

STEP, MFR

21

6729991

REAR DOOR See Illustration REAR DOOR/ PE3062

22

6669308

RETAINER

23

7126496

SEAL

24

6733740

COVER W/O vent holes - See Ref. 9

24

7124567

COVER W/vent holes
