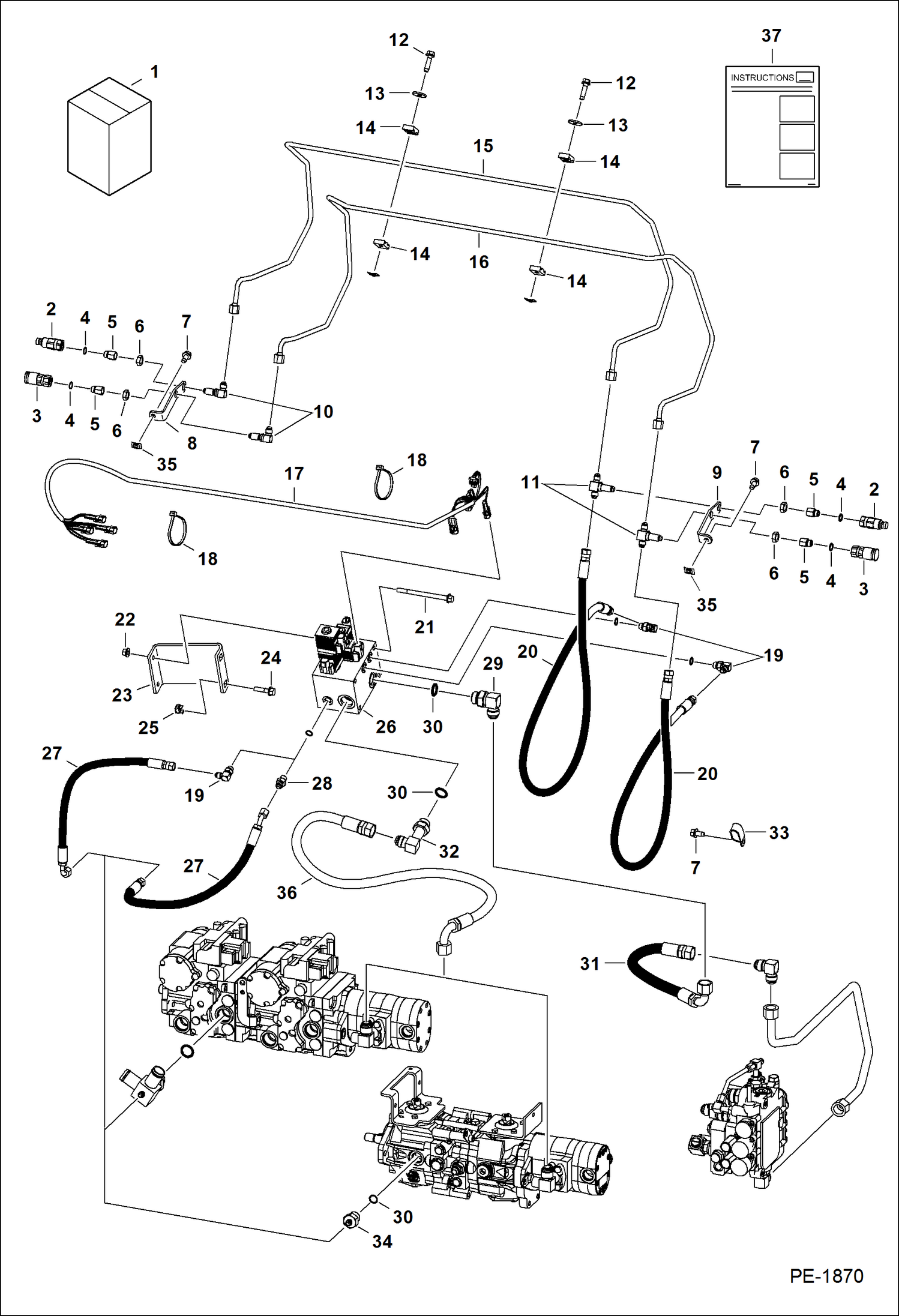

Запчасти Bobcat S-Series REAR AUXILIARY HYDRAULICS ACCESSORIES & OPTIONS

1

6736500

KIT Ref. 2-35

2

6667804

COUPLER, FF MALE

3

6667803

COUPLER, FF FEMALE

4

79K6

O RING 10

5

6706633

ADAPTER W/Ref. 4

6

86F5

NUT

7

84G3712

BOLT 5

8

6736440

MOUNT L.H.

9

6736438

MOUNT R.H.

10

88F5

ELBOW bulkhead

11

90F5

TEE bulkhead

12

84G3724

BOLT

13

619021

WASHER, 5

14

6726277

CLAMP

15

6736443

TUBELINE

16

6736442

TUBELINE

17

6736011

HARNESS Was 7102338 - D

18

6624289

STRAP, TIE

19

17KB0606

FITTING W/Ref. 4

20

6735684

HOSE

21

17C680

BOLT

22

83D6

NUT 5

23

6737201

MOUNT

24

35C624

BOLT

25

6685663

NUT, RETAINING Was 6678785 - B

26

VALVE See Illustration REAR AUXILIARY VALVE/ B21972R REAR AUX.

27

HOSE NLA - (1) 45 degree end & (1) straight end - 28'' (711mm) long - Use W/Ref. 28 - not in kit - Order 6711166 hose & 17KB606 elbow - Was 6735685 - B

27

6711166

HOSE (1) 90 degree end & (1) straight end - 26'' (660mm) long - Use W/Ref. 19 17KB606 elbow

28

ADAPTER W/Ref. 4 - Not in kit - Use W/Ref. 27 6735685 hose - Order 17KB606 elbow & 6711166 hose - Was 15KB606 - B

29

17KB1212

FITTING, HYD ELBOW W/Ref. 30

30

79K12

O RING 10

31

7111994

HOSE Was 6735683 - B

32

6716443

ELBOW W/Ref. 30

33

31H38

CLAMP

34

15KB0612

FITTING, HYD CONNECTOR W/Ref. 30

35

6684033

NUT retaining

36

6902540

INSTRUCTIONS
