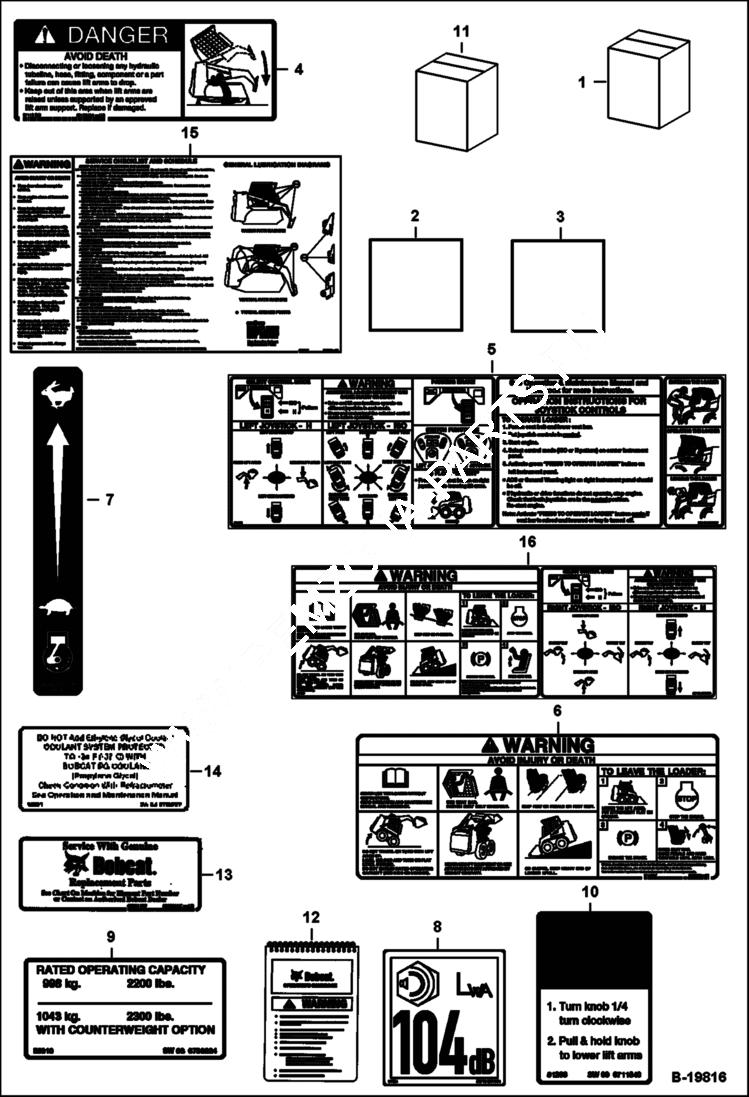

Запчасти Bobcat S-Series DECALS (Inside) ACCESSORIES & OPTIONS

1

6903123

DECAL KIT decal

1

6737004AR

DECAL KIT decal - SEE NOTE

1

6737004BR

DECAL KIT decal - SEE NOTE

1

6737004JP

DECAL KIT decal - SEE NOTE

1

7101422AR

TRANSLATION KIT translation - SEE NOTE - Tier II engine

1

7101422BR

TRANSLATION KIT translation - SEE NOTE - Tier II engine

2

6553976

SAFETY TREAD 127 x 203 mm (5 x 8'')

3

6554100

TREAD 76,2 x 152,4 mm (3 x 6'')

4

6717343

DECAL, DANGER

5

6727926

DECAL, OPERATION hand & foot controls - not in kit

6

6728539

DECAL

7

6735140

DECAL, THROTTLE

8

6731994

DECAL, DECIBEL noise level - 104db - European - not in kit

9

7177807

DECAL, ROC 998 kg (2200 lbs) - A

10

6711840

DECAL manual lift release

11

6719563

HANDBOOK, OPERATOR'S W/wire rope

11

6558309

WIRE ROPE bulk - sold per foot - Also Order (2) of 6558310 sleeve

11

6558310

SLEEVE wire rope

11

84G3112

BOLT 5

12

6902446

OM, S220 LDR operator

13

6565200

DECAL, FILTER

14

6708929

DECAL, COOLANT propylene glycol

15

6734534

DECAL, SERVICE service/warning/filters

16

6734646

DECAL, WARNING selectable joystick controls - not in kit

16

6734647

DECAL, OPERATION selectable joystick controls - Europe only - not in kit
