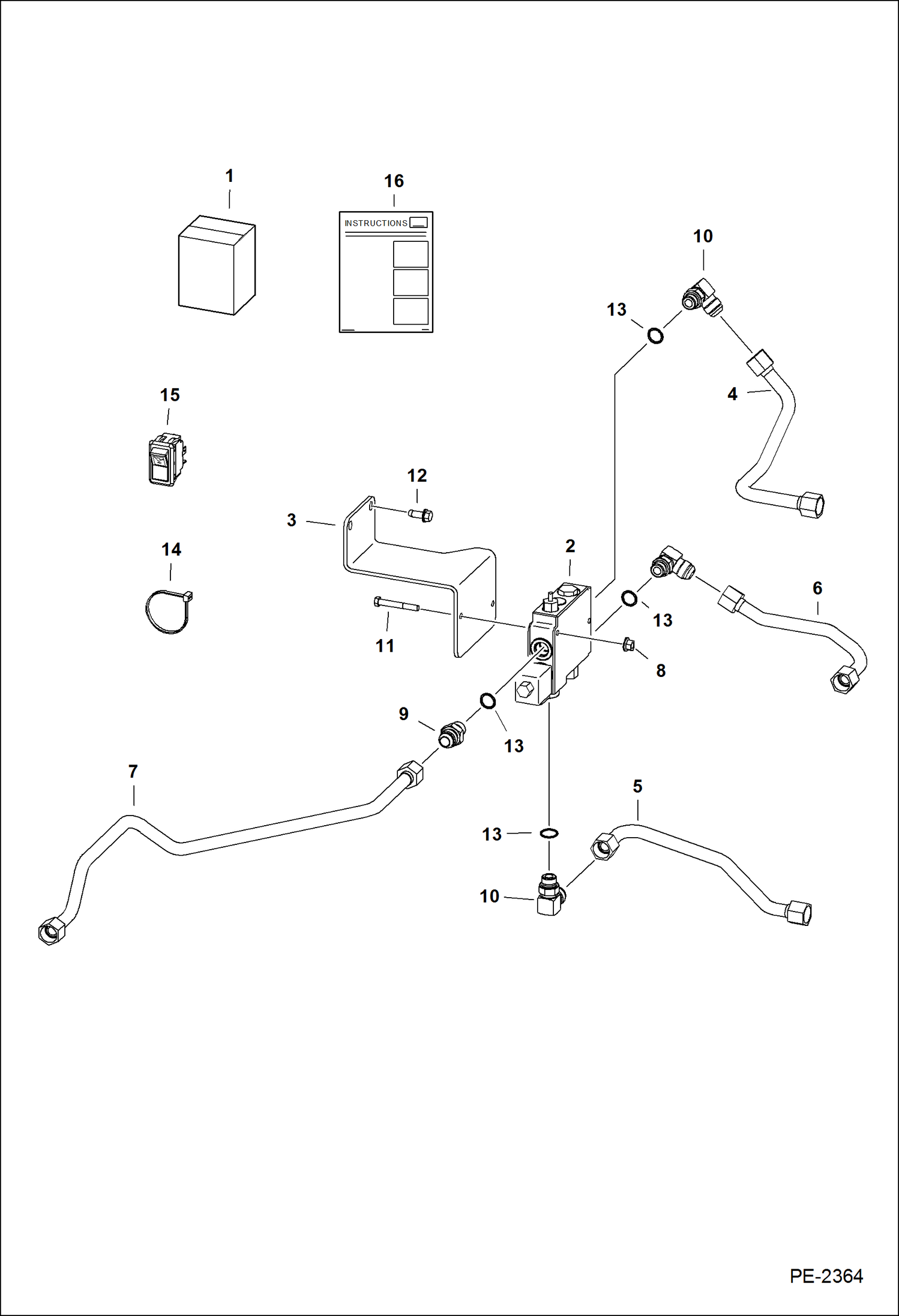

Запчасти Bobcat S-Series BUCKET POSITIONING KIT (S/N 526214000 & Above, 526312000 & Above) ACCESSORIES & OPTIONS

1

7104830

KIT, BPV Ref. 2-16

2

6673959

VALVE, BPV See Illustration BUCKET POSITIONING VALVE/ MS1943 Was 6675669 - B

3

6730898

MOUNT

4

6732991

TUBELINE

5

6732992

TUBELINE

6

7108458

TUBELINE

7

7114823

TUBELINE Was 6734208 - A

8

17C540

BOLT

9

15KB1210

FITTING, HYD CONNECTOR W/Ref. 13

10

17KB1210

FITTING, HYD ELBOW W/Ref. 13

11

83D5

NUT 5

12

84G3716

SCREW 5

13

79K10

O RING 10

14

6624289

STRAP, TIE

15

6690947

SWITCH, BPV

16

6903132

INSTRUCTIONS
