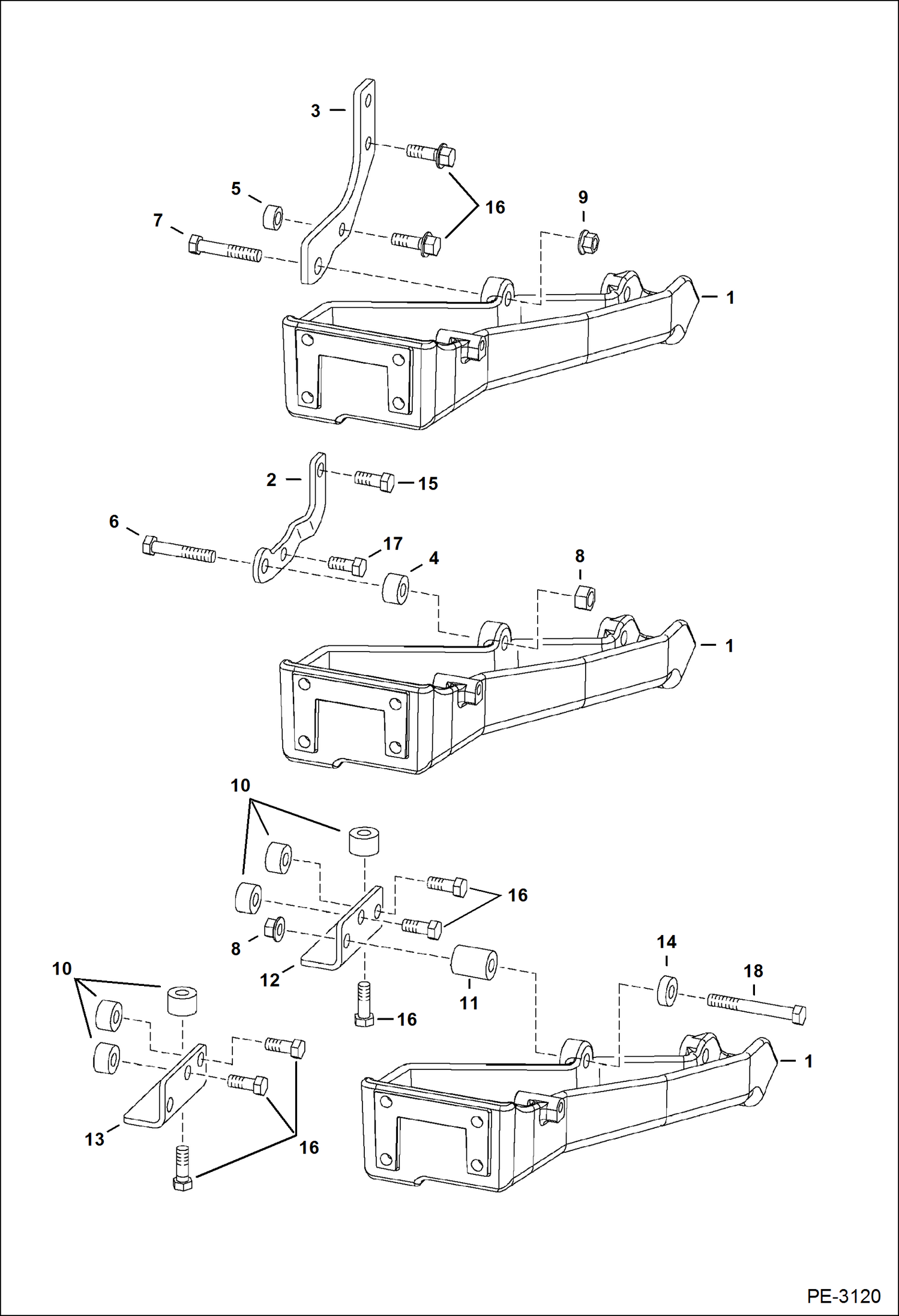

Запчасти Bobcat S-Series ENGINE & PUMP MOUNTS (S/N 523211001, 523311001 & Above) (S/N 526215621, 526312161 & Below) POWER UNIT

1

6729942

MOUNT engine/pump

2

BRACKET NLA - Order Ref. 3, 5, 7 & 9 - Was 6735979 - A

3

7128608

SUPPORT for SJC pump

4

6736349

SPACER

5

7105753

SPACER

6

6675221

BOLT

7

17C940

BOLT

8

83D8

NUT 5

9

83D9

NUT

10

6732575

SPACER

11

6735729

SPACER 2.94'' (74,7mm) long

12

6735727

BRACKET for manual pumps - W/ 4 holes - Note hole pattern

13

7127545

BRACKET W/ 4 holes - Note hole pattern - Required for pumps with new mounting hole pattern.

14

6716408

SPACER

15

17C820

BOLT

16

17C824

BOLT 5 for Ref. 3

16

17C824

BOLT 5 for Ref. 12 (6735727 bracket) & Ref. 13 (7127545 bracket)

17

17C816

BOLT

18

17C888

BOLT
