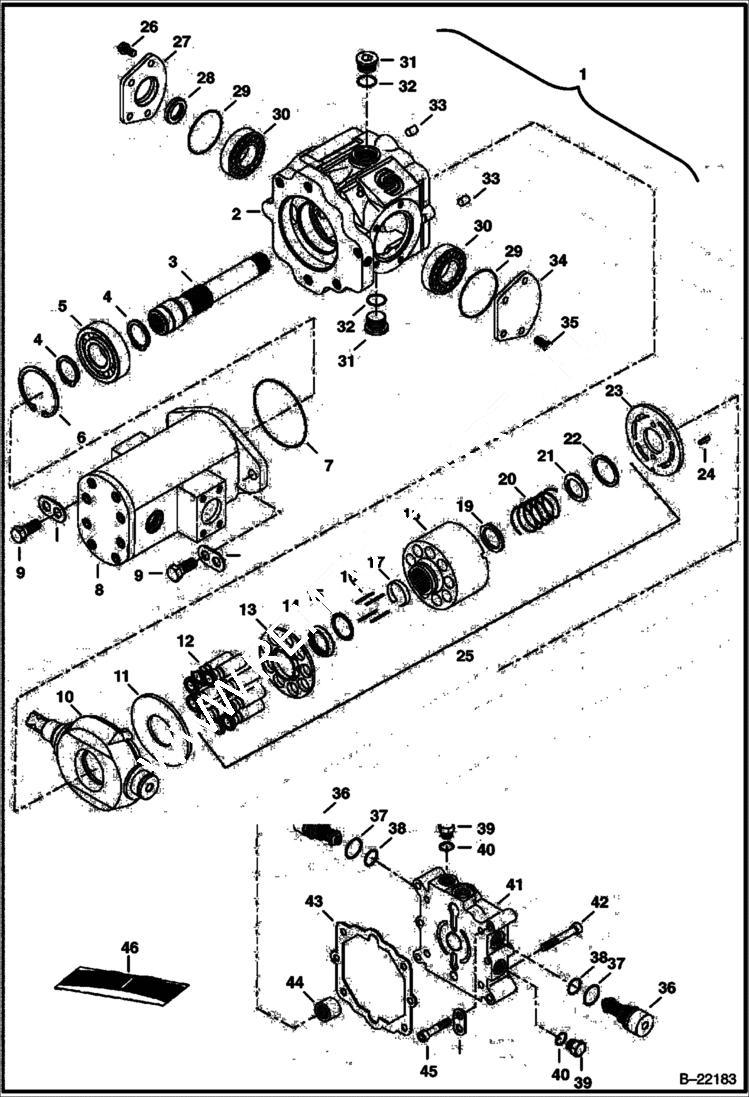

Запчасти Bobcat S-Series HYDROSTATIC PUMP (W/External Charge Pump) (Right Half) HYDROSTATIC SYSTEM

1

PUMP NLA - Model 4445137 - complete W/gear pump - standard flow - Order 6686706 pump or 6686706REM pump - Also Order 7127545 bracket - must use 6576196 bracket & 6706096 bracket from original pump - W

1

PUMP NLA - Model 4445162 - complete W/gear pump - standard flow - Order 6686706 pump or 6686706REM pump - Also Order 7127545 bracket - Was 6685034 - A

1

6686706

PUMP, HYD TANDEM Model 4445185 - complete W/gear pump - standard flow - Also order 7127545 bracket

1

6686706

PUMP, HYD TANDEM Model 4445185 - complete W/gear pump - standard flow

1

PUMP NLA - Model 4445138 - complete W/gear pump - high flow - Order 6687832 pump or 6687023REM pump - Also Order 6686712 gear pump & 7127545 bracket - must use 6576196 bracket & 6706096 bracket from o

1

PUMP NLA - Model 4445163 - complete W/gear pump - high flow - Order 6687832 pump or 6687023REM pump - Also Order 7127545 bracket - Was 6685035 - A

1

PUMP, HYD TANDEM NLA - Model 4445196 - complete W/gear pump - high flow - Order 6687832 pump or 6687023REM pump - Also Order 6686712 gear pump & 7127545 bracket - Was 6687023 - A

1

6687023REM

PUMP, HYD TANDEM, W/O GEAR PUMP

1

HYDRO PUMP NLA - complete W/gear pump - model 4445179 - high flow - 40 GPM - Order 6688682 pump & 7127545 bracket - Was 6685837 - A

1

PUMP, HYD TANDEM ASSY NLA - complete W/gear pump - model 4445220 - high flow - 37 GPM - Order 6687832 Hydrostat & 6688670 Gear Pump - Also order 7127545 bracket - Was 6688682 - A

1

PUMP, HYD TANDEM ASSY NLA - complete W/gear pump - model 4445220 - 37 GPM - Order 6687832 Hydrostat & 6688670 Gear Pump - Was 6688682 - A

1

6687832

PUMP, HYD TANDEM W/O GEAR PUMP Model 4445208

2

6682262

HOUSING Was 6689602 - A

3

6682264

SHAFT

4

658128

RING, SNAP

5

654299

BEARING

6

669863

RING, SNAP

7

6671520

O-RING

8

GEAR PUMP See Illustration GEAR PUMP/ B22184 See Illustration HIGH FLOW HYDRAULICS/ B22288

9

6682263

BOLT

10

SWASH PLATE NLA - Order 6685344 - Was 6671513 - A

10

6685344

SWASHPLATE W/threaded shaft hole - Was 6671513 - A

11

6650627

PLATE

12

PISTON NSS - Order Ref. 25

13

RETAINER NSS - Order Ref. 25

14

GUIDE NSS - retainer - Order Ref. 25

15

6666338

WASHER

16

6650629

PIN

17

6650630

RETAINER

18

BLOCK NSS - cylinder - Order Ref. 25

19

WASHER NSS - Was 6667724 - A

20

SPRING NSS - Was 6667725 - A

21

6666882

WASHER

22

RETAINER NLA - Order Ref. 25 - Was 6666881 - A

23

6676148

PLATE, VALVE

24

6650636

PIN spring

25

6675341

GROUP, ROTARY Ref. 12-22

26

BOLT

27

6657067

COVER cover assy. - W/Ref. 28

28

6678226

SEAL, OIL lip

29

6660814

O-RING

30

6669411

BEARING

31

47K8

PLUG W/Ref. 32

32

79K12

O RING 10

33

6675342

PIN

34

6657068

COVER

35

6650668

BOLT

36

6670685

RELIEF VALVE 5000 PSI (345 bar) - W/Ref. 48 & 49 - Was 6689601 - A

37

6657028

O-RING

38

79K8

O RING 10

39

6645086

PLUG W/Ref. 40

40

6661481

O-RING

41

6669405

CAP, END

42

6650637

BOLT Was 6650674 - A

43

6650634

GASKET

44

6650635

BEARING

45

6652018

BOLT

46

6671516

KIT, SEAL
