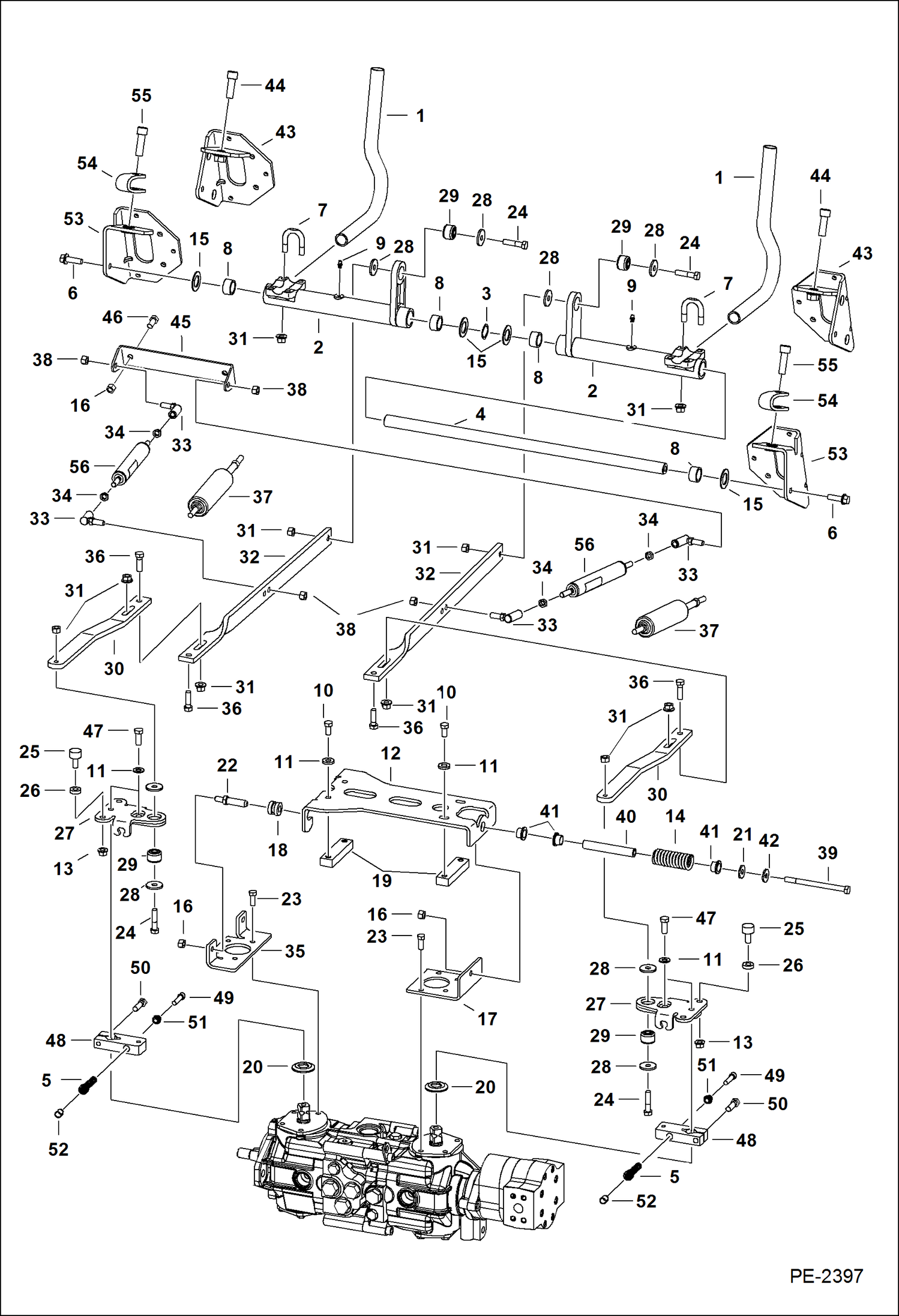

Запчасти Bobcat S-Series HAND CONTROLS (S/N 526211108, 526311003 & Above) HYDROSTATIC SYSTEM

1

6702543

LEVER, STEERING

2

BELLCRANK NLA - 1.0475'' (26,2 mm) I.D. hole for Ref. 29 (6678067 bushing) - Use W/Ref. 8 (6673710 bearing) & Ref. 9 (6518200 grease zerk) - Order 7110571 bellcrank, Ref. 9 (10H35 grease zerk) & (2) o

2

BELLCRANK NLA - Use W/Ref. 8 (6673710 bearing) & Ref. 9 (10H35 grease zerk) - Order 7110571 bellcrank & (2) of Ref. 8 (6703879 bushing) - Was 7110572 - A

2

7110571

BELLCRANK, STEERING W/notch for Ref. 8 (6703879 bushing) - Use W/Ref. 9 (10H35 grease zerk)

3

6599741

WASHER wave

4

6716545

ROD

5

6734433

SPRING Use W/Ref. 48 (NLA/ 6734299 bracket)

6

45C620

BOLT

7

6732997

U-BOLT

8

6673710

BEARING, NEEDLE Use W/Ref. 2 (NLA/ 7101048 & NLA/ 7110572 bellcranks)

8

6703879

BUSHING, PLASTIC W/tab - Use W/Ref. 2 (7110571 bellcrank)

9

6518200

FITTNG, GREASE 10 press fit - Use W/Ref. 2 (NLA/ 7101048 bellcrank)

9

10H35

FITTING, GREASE 10 threaded - Use W/Ref. 2 (NLA/ 7110572 bellcrank & 7110571 bellcrank)

10

17C616

BOLT 5 Was 7105192 - B

11

7103217

WASHER .065'' thick

12

6734298

MOUNT

13

98D6

NUT

14

6701535

SPRING

15

6716916

WASHER

16

95D6

NUT

17

7109904

BRACKET Was 6685346 - A

18

6706098

GUIDE

19

6702716

BLOCK

20

6687913

SEAL

21

6563914

WASHER

22

6577058

PIN

23

1CM820

BOLT

24

17C626

BOLT

25

6673789

BEARING

26

7100699

WASHER .24'' thick

27

PINTLE ARM NLA - Order 7110365 & Ref. 48 (7103708 bracket), Ref. 49 (7103711 bolt) & Ref. 51 (7105223 spacer) - Was 6734429

27

7110365

ARM, PINTLE Was 7103710 - A

28

619021

WASHER, 5

29

6685060

BUSHING, TORSION torsion - 26,8 mm (1.055'') OD - Was 6678067 - A

30

6731253

LINK

31

83D6

NUT 5

32

6716117

LINK

33

6599744

BALL JOINT

34

8D6

NUT 5

35

7109905

BRACKET Was 6685345 - A

36

17C620

BOLT

37

GAS SPRING NLA - Japan Option - Order Ref. 56 - Was 6649551 - A

38

96D6

NUT

39

17C680

BOLT

40

6715164

SLEEVE, SPRING

41

6715163

BUSHING, PRESS FIT

42

25E24

WASHER AHC

43

BRACKET NLA - RH - Order Ref 53-55 - Was 6733022 - A

43

BRACKET NLA - LH - Order Ref 53-55 - Was 6733024 - A

44

93G824

BOLT Was 73G824 - A

45

6706106

MOUNT damper - W/O mount for back-up alarm switch

45

7147580

MOUNT damper - W/mount for back-up alarm switch - Was 7100795 - A

46

17C612

BOLT 5

47

47C620

BOLT Was 7105193 - A

48

BRACKET NLA - Order 7103708 pintle arm, Ref. 27 (7110365 pintle arm), Ref. 49 (7103711 bolt) & Ref. 51 (7105223 spacer) - Was 6734299

48

7103708

BRACKET pintle arm

49

74G520

BOLT Use W/Ref. 48 (NLA/ 6734299 bracket)

49

7103711

BOLT Use W/Ref. 48 (NLA/ 6734299 bracket)

50

73G624

BOLT Was 7105194

51

INSERT NLA - threaded - Use W/Ref. 48 (NLA/ 6734299 bracket) - Was 6737378 - A

51

7105223

SPACER Use W/Ref. 48 (7103708 bracket)

52

ROLL PIN NLA - Use W/Ref. 48 (NLA/ 6734299 bracket) - Was 4JM01214B - A

53

7128600

BRACKET RH

53

7128601

BRACKET LH

54

7121779

PAD

55

73G828

BOLT

56

7188108

GAS SPRING
