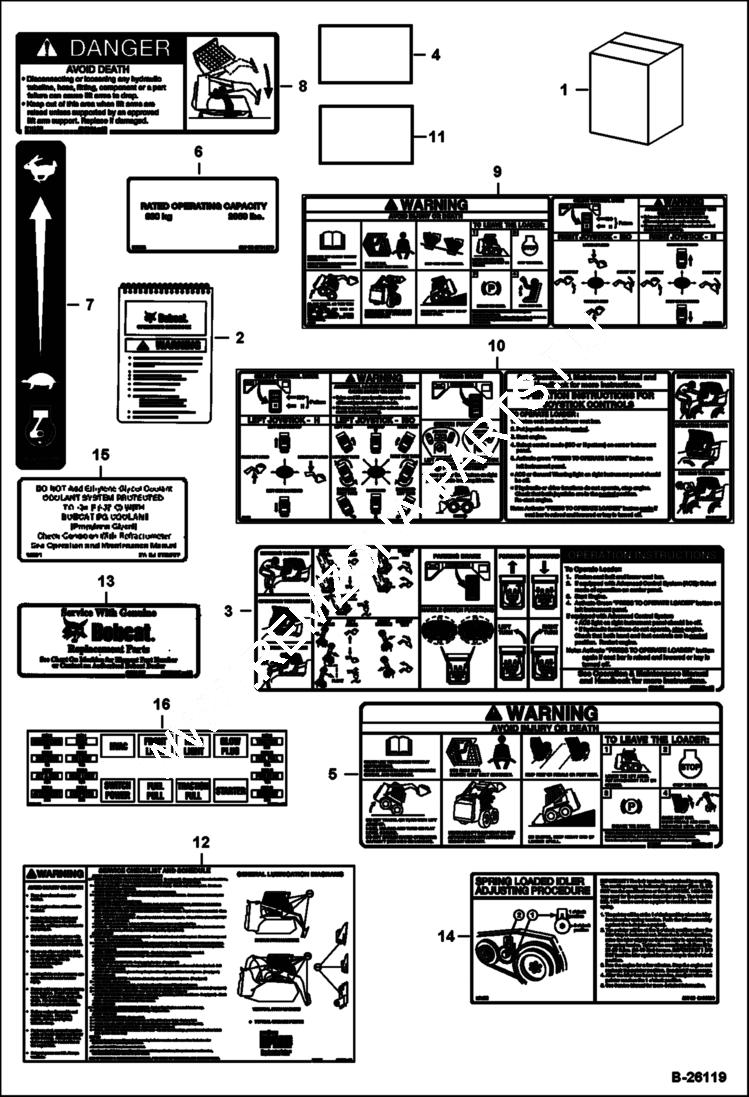

Запчасти Bobcat S-Series DECALS (Inside) ACCESSORIES & OPTIONS

1

6904998

DECAL KIT

1

7120287AR

KIT, DECAL decal - SEE NOTE

1

7120287BR

KIT, DECAL decal - SEE NOTE

1

7120287JP

KIT, DECAL decal - SEE NOTE

1

7120286AR

KIT, TRANSLATION S205 SPANISH translation - SEE NOTE

1

7120286BR

KIT, TRANSLATION S205 PORTUGUESE translation - SEE NOTE

2

6902600

HANDBOOK, OPERATOR'S W/wire rope - not in kit - Was 6718719 - B,D

2

6558309

WIRE ROPE bulk - sold per foot - Also Order (2) of 6558310 sleeve

2

6558310

SLEEVE wire rope

2

17C512

BOLT 5

2

61D5

NUT

2

84G3112

BOLT 5

3

6727926

DECAL, OPERATION hand & foot controls - not in kit

4

6554100

TREAD 76,2 x 152,4 mm (3 x 6'')

5

6728539

DECAL

5

6734646

DECAL, WARNING selectable joystick controls - not in kit

6

7184780

DECAL, CAPACITY LIFT Was 6734179 - A

7

6735140

DECAL, THROTTLE

8

6717343

DECAL, DANGER

9

6734646

DECAL, WARNING selectable joystick controls - not in kit

10

6734647

DECAL, OPERATION selectable joystick controls - not in kit

11

6553976

SAFETY TREAD 127 x 203 mm (5 x 8'')

12

6734534

DECAL, SERVICE service checklist & schedule - Was 7124877 - A

13

6565200

DECAL, FILTER not in kit

14

6709030

DECAL belt tension - spring loaded idler

15

6708929

DECAL, COOLANT propylene glycol

16

7117407

DECAL, FUSE inside fuse cover - 51 x 178 mm (2 x 7'')

16

7159779

DECAL fuse relay - 51 x 178 mm (2 x 7'')
