Запчасти Bobcat S-Series DRIVE TRAIN DRIVE TRAIN

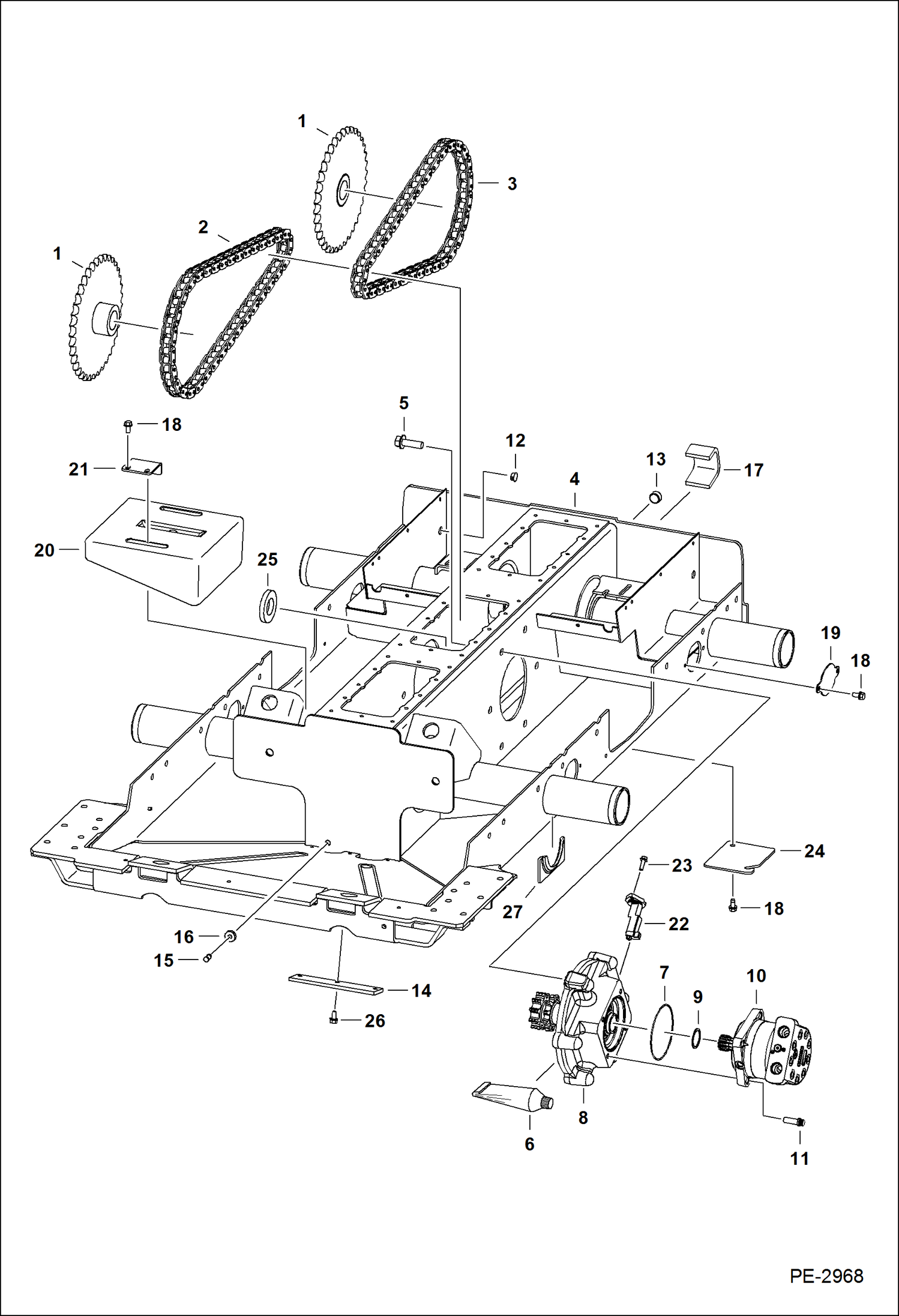

Схема запчастей Bobcat S-Series - DRIVE TRAIN DRIVE TRAIN

Артикул

Название

Примечание

Количество

1

7134137

SPROCKET Was 6577204 - A

2

CHAIN NLA - 68 pitch - hour glass shape link - Diamond - Was 6703915 - A

2

CHAIN NLA - 68 pitch - oval shape link - Diamond - Was 6731217 - A

2

6689652

CHAIN, DRIVE 68 pitch - hour glass shape link - Tsubaki

2

6510171

LINK conn. - hour glass shape - Diamond

2

6675332

LINK conn. - oval shape - Diamond

2

6690709

LINK conn. - hour glass shape - Tsubaki

3

CHAIN NLA - 62 pitch - hour glass shape link - Diamond - Was 6579127 - A

3

CHAIN NLA - 62 pitch - oval shape link - Diamond - Was 6731218 - A

3

6689651

CHAIN, DRIVEX 62 pitch - hour glass shape link - Tsubaki

3

6510171

LINK conn. - hour glass shape - Diamond

3

6675332

LINK conn. - oval shape - Diamond

3

6690709

LINK conn. - hour glass shape - Tsubaki

4

CHAINCASE See Illustration DISC BRAKE/ PE2278 NLA - Order 7122291 chaincase & 7121922 cover - Was 7106531 - A

4

7122291

CHAINCASE single speed motor

4

7130074

CHAINCASE 2-speed motor

5

35C1032

BOLT

6

6685372

SEALANT, GASKET LIQUID 10.1 OZ tube - 0.57 kg (20 oz)

7

25K30508

O-RING, 10

8

MOUNT ASSY. See Illustration MOTOR CARRIER/ PE3454 single speed motor - manual controls

8

MOUNT ASSY See Illustration MOTOR CARRIER/ PE1818 single speed motor - selectable joystick controls

8

MOUNT ASSY. See Illustration MOTOR CARRIER/ PE3455 2-speed motor - manual controls

8

MOUNT ASSY See Illustration MOTOR CARRIER/ PE3118 2-speed motor - selectable joystick controls

9

6664815

SEAL, OIL supplied W/motor

10

MOTOR See Illustration HYDROSTATIC MOTOR/ PE2620 W/Ref. 9 - single speed

10

MOTOR 2-speed

11

93G824

BOLT single speed motor - Was 73G824 - A

11

93G1032

BOLT 2-speed motor

12

6657719

PLUG 0.75'' dia hole

13

6731121

PLUG chaincase fill

14

6700182

COVER, DRAIN

15

6599645

PLUG, STEEL chaincase drain

16

6553411

BUSHING

17

6706485

HOOK tie down - weld-on

18

84G3712

BOLT 5 single speed motor

18

84G3712

BOLT 5 2-speed motor

19

6730078

COVER

20

7102077

COUNTERWEIGHT

21

7102823

STOP

22

SENSOR, SPEED TRAVEL See BTI419 wheel speed - selectable joystick controls - Was 6677181 - A

23

35C412

BOLT selectable joystick controls

24

7240780

COVER, ACCESS 2-speed motor - Was 6716010 - A

25

6680055

MAGNET selectable joystick controls

26

84G3712

BOLT 5

26

84G3716

SCREW 5

27

7191233

BRACE, AXLE weld-on

Выбрано товаров: 46
