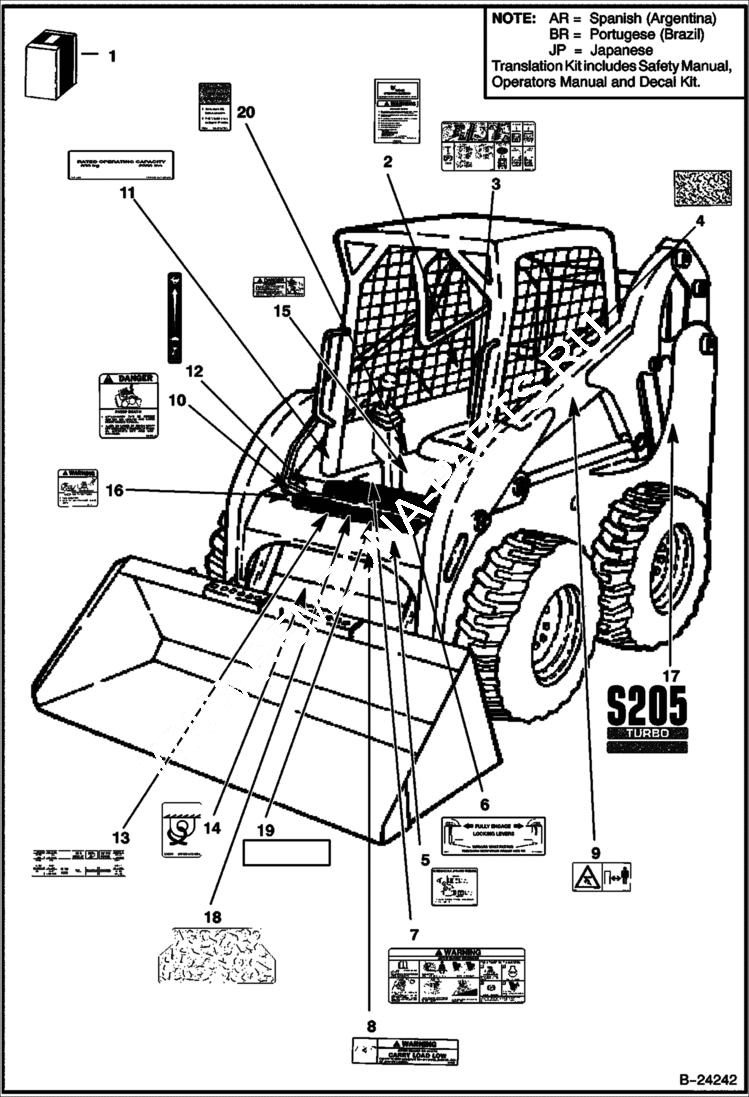

Запчасти Bobcat S-Series DECALS ACCESSORIES & OPTIONS

1

6903171

KIT decal

1

7107990AR

KIT decal - SEE NOTE

1

7107990BR

KIT decal - SEE NOTE

1

7107990JP

KIT decal - SEE NOTE

1

7107991AR

KIT translation - SEE NOTE

1

7107991BR

KIT translation - SEE NOTE

2

6902600

HANDBOOK, OPERATOR'S W/wire rope - not in kit - Was 6718719 - B,D

2

6558309

WIRE ROPE bulk - sold per foot - Also Order (2) of 6558310 sleeve

2

6558310

SLEEVE wire rope

2

17C512

BOLT 5

2

61D5

NUT

2

84G3112

BOLT 5

3

6727926

DECAL, OPERATION hand & foot controls - not in kit

3

6734647

DECAL, OPERATION selectable joystick controls - not in kit

4

6554100

TREAD 76,2 x 152,4 mm (3 x 6'')

5

6731757

DECAL, OPERATION to release auxiliary hyd. pressure - not in kit

6

6561383

DECAL, OPERATION 5 Bob-Tach locking levers

7

6728539

DECAL

7

6734646

DECAL, WARNING selectable joystick controls - not in kit

8

6579528

DECAL, WARNING carry load low

9

6713507

DECAL stay clear - European -Not in Kit

10

6702301

DECAL, DANGER

11

7184780

DECAL, CAPACITY LIFT Was 6734179 - A

12

6735140

DECAL, THROTTLE

13

6718774

DECAL fuse/relay - 2'' x 7'' (50,8 mm x 177,8 mm) -Not in Kit

14

6727595

DECAL

15

6717343

DECAL, DANGER

16

6710358

DECAL warning

17

7102366

DECAL model

18

SAFETY TREAD NLA - 12'' x 25.30'' (304,8 mm x 642,6 mm) - Order 7108222 - Was 6712791 - A

18

7108222

SAFETY TREAD 22.5'' (571,5 mm) wide irregular shape

19

6702302

DECAL, DANGER

20

6711840

DECAL lift lock
