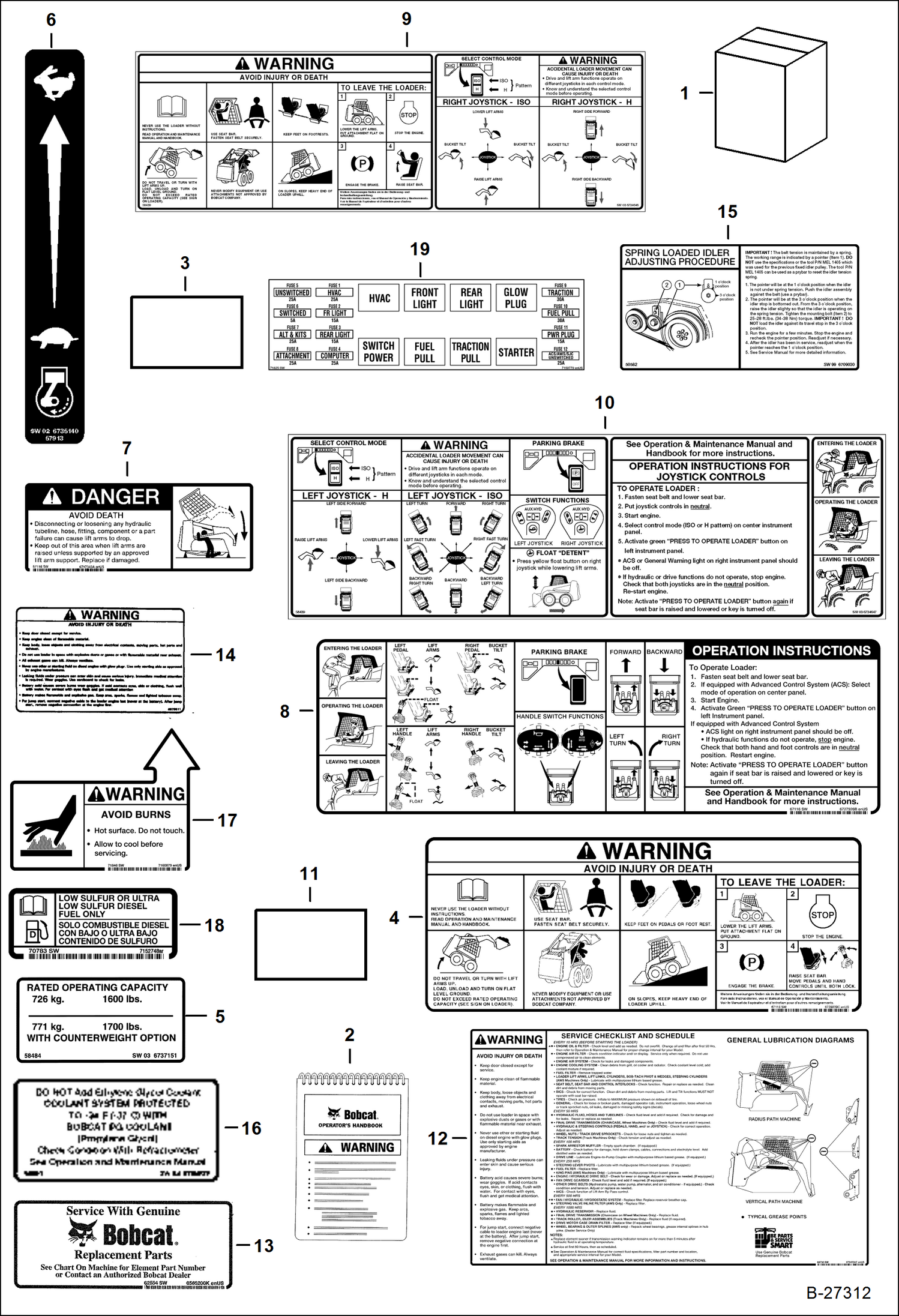

Запчасти Bobcat S-Series DECALS (Inside) ACCESSORIES & OPTIONS

1

6904997

KIT, DECAL

1

7164428AR

KIT, DECAL TRANSLATION

1

7164428BR

KIT, DECAL TRANSLATION

1

7164428CA

KIT, DECAL TRANSLATION Was 7164428JP - D

2

6986651

OHB, W WIRE ROPE not in kit - Was 6902600 - B,D

2

6558309

WIRE ROPE bulk - sold per foot - Also Order (2) of 6558310 sleeve

2

6558310

SLEEVE wire rope

2

17C512

BOLT 5

2

61D5

NUT

2

84G3112

BOLT 5

3

6554100

TREAD 76,2 x 152,4 mm (3 x 6'')

4

6728539

DECAL

5

7184779

DECAL, CAPACITY LIFT Was 6725374 - A

6

6735140

DECAL, THROTTLE

7

6717343

DECAL, DANGER

8

6727926

DECAL, OPERATION hand & foot controls - not in kit

8

6717639

DECAL seat & seat bar operating - AHC - not in kit

9

6734646

DECAL, WARNING selectable joystick controls - not in kit

10

6734647

DECAL, OPERATION selectable joystick controls - not in kit

11

6553976

SAFETY TREAD 127 x 203 mm (5 x 8'')

12

6734534

DECAL, SERVICE service checklist & schedule

13

6565200

DECAL, FILTER not in kit

14

6579511

DECAL warning - not in kit

15

6709030

DECAL belt tension - spring loaded idler

16

6708929

DECAL, COOLANT propylene glycol

17

7160879

DECAL warning

18

7152748

DECAL, FUEL DIESEL low sulfer

19

7159779

DECAL fuse relay - 51 x 178 mm (2 x 7'')
