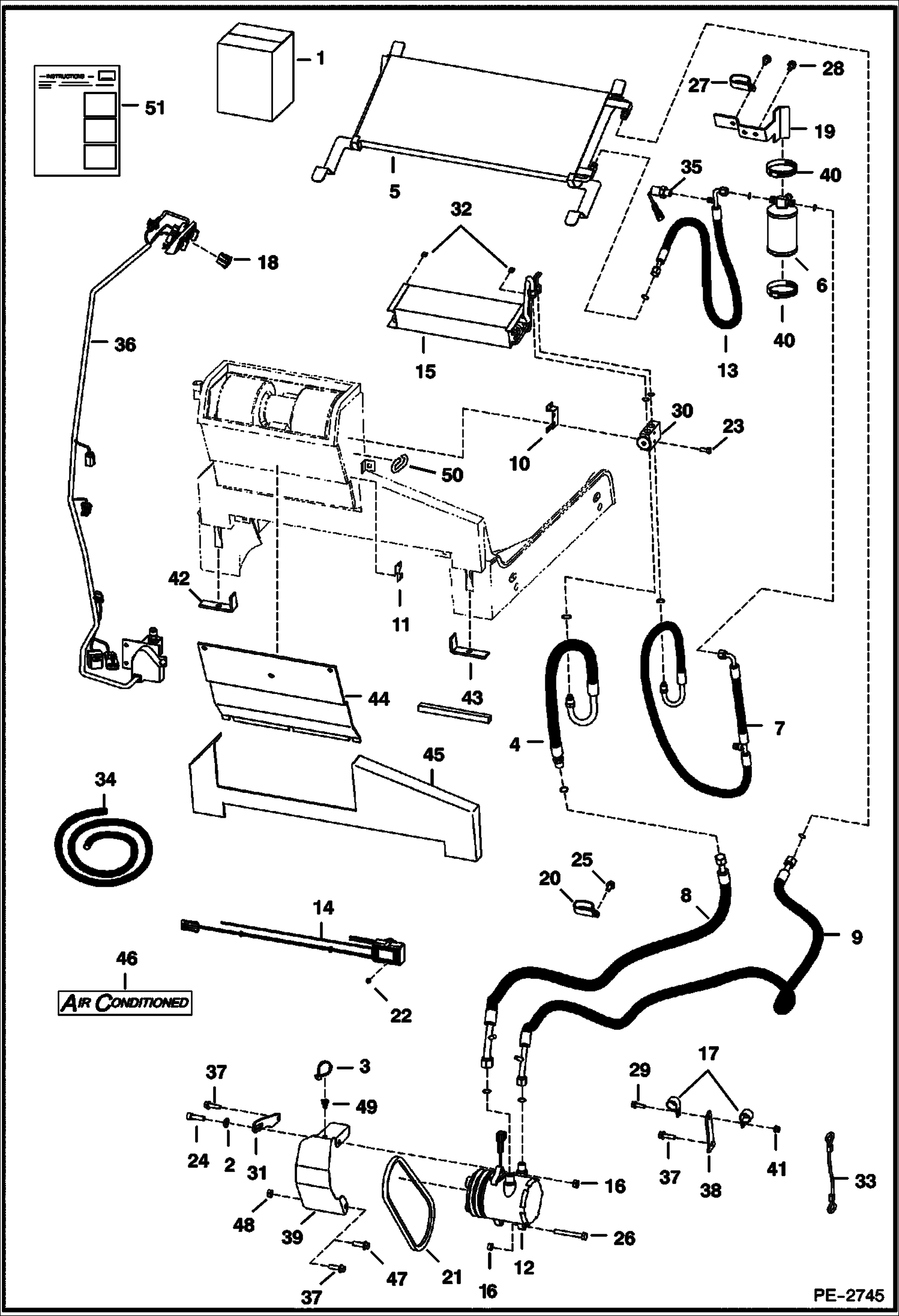

Запчасти Bobcat S-Series HEATER & A/C (A/C Kit) (Used on Heaters W/Metal Housing) ACCESSORIES & OPTIONS

1

7116903

KIT, A/C Ref. 2-49

1

7116903

KIT, A/C Ref. 2-49

2

6557831

WASHER

3

6624289

STRAP, TIE

4

6726623

HOSE

4

7009978

O-RING #10 - Was 6675825 - A

5

6733001

CONDENSER A/C

6

6674235

RECEIVER DRIER

6

6676062

VALVE relief

7

6698442

HOSE Was 6675075 - A

7

6677122

CAP

7

7009976

O-RING #6 - Was 6675824 - A

8

6726656

HOSE

8

6685199

CAP

8

7009978

O-RING #10 - Was 6675825 - A

9

6726661

HOSE, A/C ASSY

9

CAP NLA - Was 6685198 - A

9

7009977

O-RING #8 - Was 6675538 - A

10

6676984

MOUNT valve

11

6690480

COVER plate - Was 6677105 - B

11

6692416

COVER

12

6733655

COMPRESSOR, A/C W/Ref. 46

12

6679145

CLUTCH

12

6648307

CONNECTOR 2-pin

12

6648308

CONNECTOR

13

6727414

HOSE W/Ref. 35

13

7009976

O-RING #6 - Was 6675824 - A

14

6683004

THERMOSTAT

15

6690477

EVAPORATOR

15

7009977

O-RING #8 - Was 6675538 - A

16

53DM10

NUT

17

30H50

CLIP

18

7169112

SWITCH, ROCKER A/C Was 6719176 - A

19

6726620

BRACKET receiver drier

20

31H49

CLAMP

21

6726988

BELT compressor

22

6726621

SCREW

23

1CM635

BOLT

24

2GM1040

BOLT Was 2GM1035 - B

25

84G3716

SCREW 5

26

5CM1080

SCREW

27

31H46

CLAMP

28

84G3710

SCREW

29

35C512

BOLT Was 35C516 - B

30

6675534

BLOCK, VALVE A/C expansion valve

30

7009977

O-RING #8 - Was 6675538 - A

31

6726648

BRACKET swing

32

6676539

CLIP

33

6808831

WIRE ROPE

34

6676538

INSULATION bulk - sold per foot

35

6675779

SWITCH, PRESS pressure

36

7116260

HARNESS, CAB DLX not in kit

36

7143071

HARNESS not in kit

37

35C620

BOLT 5

38

6728011

BRACKET

39

6731495

SHIELD belt

40

44H48

CLAMP

41

83D5

NUT 5

42

6675608

INSULATION

43

6675609

INSULATION

44

6689179

INSULATION

45

6689180

INSULATION

46

6729077

DECAL air conditioned

47

35C624

BOLT

48

97D6

NUT 10

49

7015668

MOUNT, STRAP TIE push in - Use W/tie strap - Was 6678666 - B

50

INSULATION NLA - 6'' (152,4 mm) long - Order Ref. 34

51

6904257

INSTRUCTIONS
