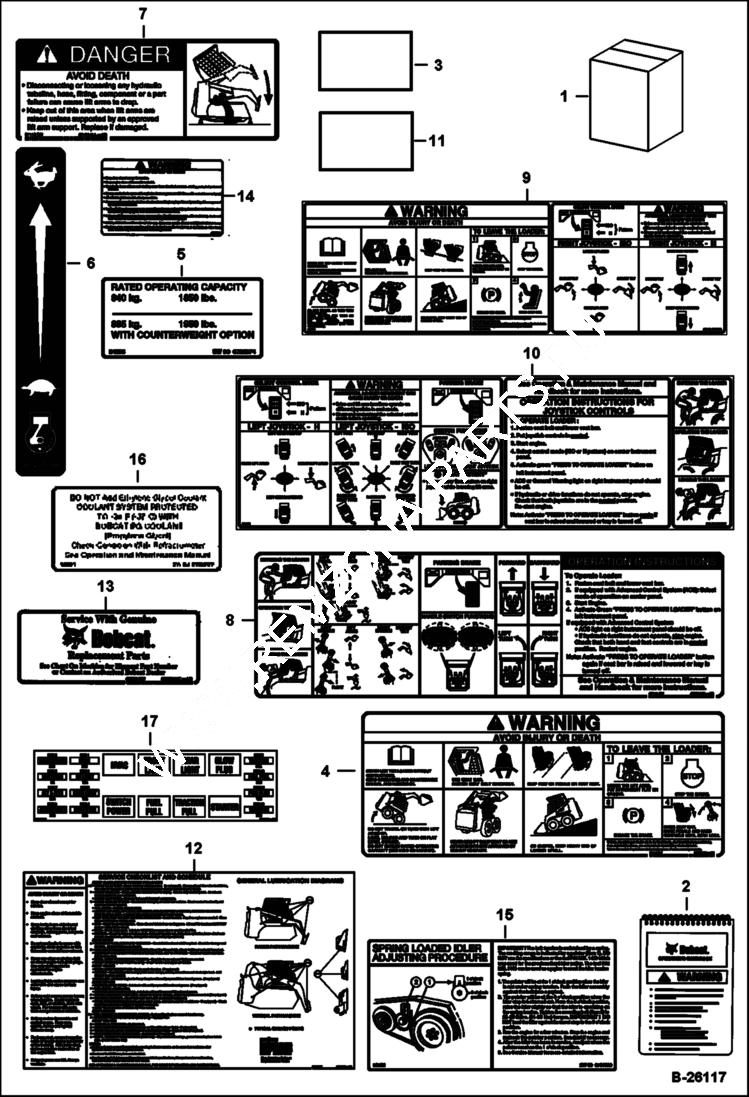

Запчасти Bobcat S-Series DECALS (Inside) ACCESSORIES & OPTIONS

1

6904997

KIT, DECAL

1

7120264AR

KIT, DECAL decal

1

7120264BR

KIT, DECAL decal

1

7120264JP

KIT, DECAL decal

1

7163317AR

KIT, DECAL

1

7163317BR

KIT, DECAL

1

7163317JP

KIT, DECAL

1

KIT, TRANSLATION S185 SPANISH NLA - Order 6904134 operator manual, 6902600 handbook, 6556500 safety manual, 6900621 instructions, 6901499 instructions & 7120264AR decal kit - Was 7120300AR - A

1

7120300BR

KIT, TRANSLATION S185 PORTUGUESE translation

2

6902600

HANDBOOK, OPERATOR'S W/wire rope - not in kit - Was 6718719 - B,D

2

6558309

WIRE ROPE bulk - sold per foot - Also Order (2) of 6558310 sleeve

2

6558310

SLEEVE wire rope

2

17C512

BOLT 5

2

61D5

NUT

2

84G3112

BOLT 5

3

6554100

TREAD 76,2 x 152,4 mm (3 x 6'')

4

6728539

DECAL

5

7184779

DECAL, CAPACITY LIFT Was 6725374 - A

6

6735140

DECAL, THROTTLE

7

6717343

DECAL, DANGER

8

6727926

DECAL, OPERATION hand & foot controls - not in kit

8

6717639

DECAL seat & seat bar operating - AHC - not in kit

8

6727926

DECAL, OPERATION hand & foot controls - not in kit - Was 6727941 - A

9

6734646

DECAL, WARNING selectable joystick controls - not in kit

10

6734647

DECAL, OPERATION selectable joystick controls - not in kit

11

6553976

SAFETY TREAD 127 x 203 mm (5 x 8'')

12

6734534

DECAL, SERVICE service checklist & schedule - Was 7124877 - A

13

6565200

DECAL, FILTER not in kit

14

6579511

DECAL warning - not in kit

15

6709030

DECAL belt tension - spring loaded idler

16

6708929

DECAL, COOLANT propylene glycol

17

7117407

DECAL, FUSE inside fuse cover - 51 x 178 mm (2 x 7'')

17

7159779

DECAL fuse relay - 51 x 178 mm (2 x 7'')
