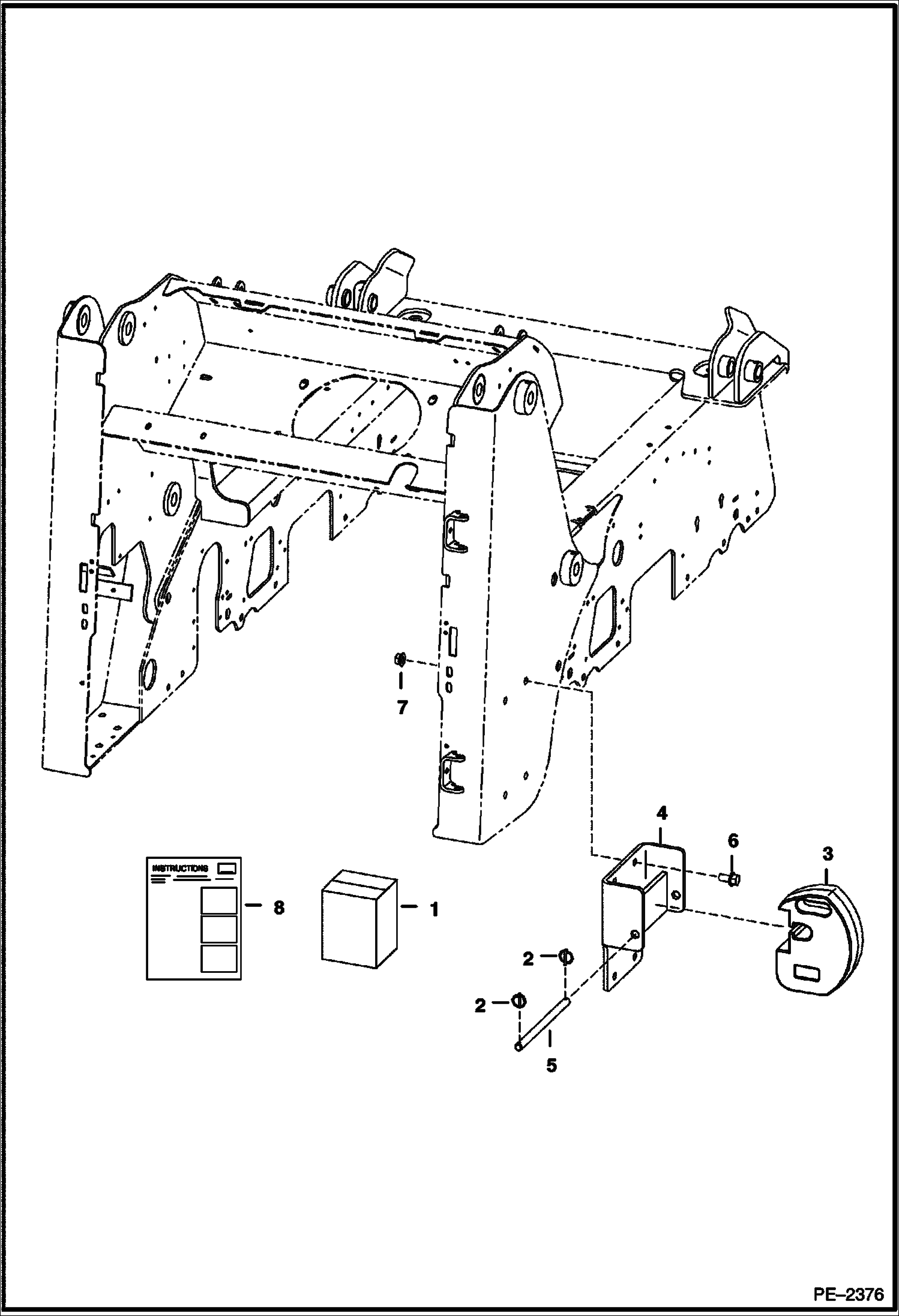

Запчасти Bobcat S-Series COUNTERWEIGHT KIT (300 lb) (136 kg) ACCESSORIES & OPTIONS

1

KIT NLA - Was 7105763 - A

2

6649706

PIN

3

COUNTERWEIGHT NLA - 49 lb (20,142 kg) - Was 6811483 - B

4

MOUNT ASSY NLA - Was 7105817 - A

5

ROD NLA - Was 7105826 - A

6

35C1020

BOLT

7

57D10

NUT

8

INSTRUCTIONS NLA - Was 6903282 - A
