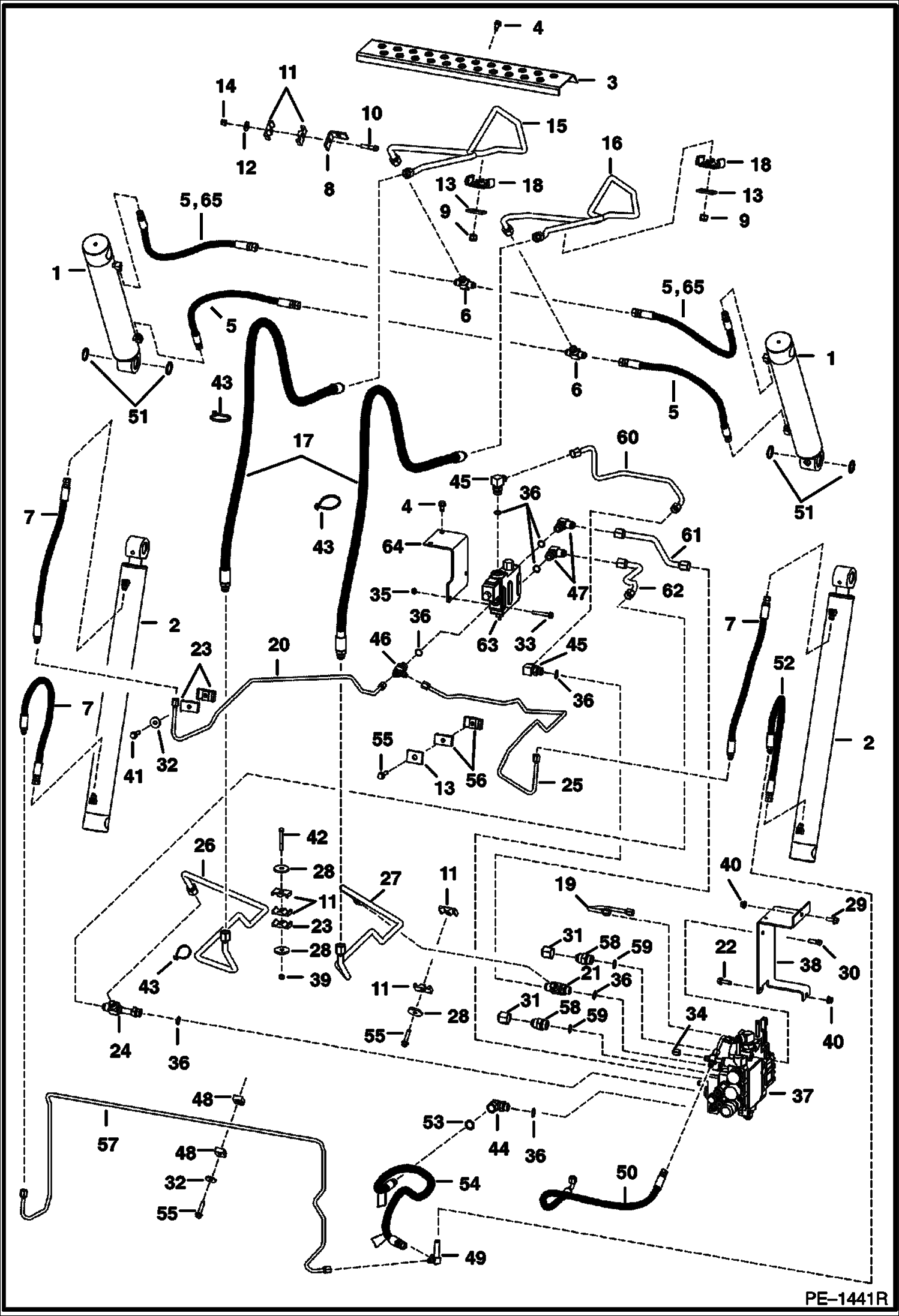

Запчасти Bobcat S-Series HYDRAULIC CIRCUITRY (W/Bucket Position Valve) HYDRAULIC SYSTEM

1

CYLINDER See Illustration TILT CYLINDER/ PE1056 TILT

2

CYLINDER See Illustration LIFT CYLINDER/ B13593 LIFT

3

6717502

BOOM STEP W/2 in. (50,8 mm) mtg. hole surface

3

6735669

BOOM STEP W/ 3.4'' (86,4 mm) mtg hole surface

4

84G3712

BOLT 5

5

6718066

HOSE .5625'' thread & .75'' thread female ends - Use (2) per tilt cylinder W/.5625'' thread base end fitting

5

6718066

HOSE .5625'' thread & .75'' thread female ends - Use (1) per tilt cylinder W/.75'' thread base end fitting

6

6716061

TEE

7

7116564

HOSE Was 7104132 - A

8

6718238

BRACKET

9

59D8

NUT 5

10

17C628

BOLT

11

6701893

CLAMP

12

27E6

WASHER 5

13

6553709

WASHER

14

59D6

NUT

15

6718030

TUBE

16

6725337

TUBE

17

6719439

HOSE

18

6717933

CLAMP

19

6727702

TUBE

19

6735837

TUBE

20

6726168

TUBE

21

TEE NLA - W/flared end O-rings - Was 10KN00007B - A

21

97K6

O RING flared end

21

97K8

O-RING flared end

21

10K7

TEE W/O flared end O-rings

22

84G3720

BOLT

23

6726277

CLAMP

24

6730142

TEE check boss face to determine correct replacement O-ring - W/Ref. 36

25

6730201

TUBE

25

7217617

TUBELINE, HYD Was 6733186 - B

26

6730203

TUBE

27

6730202

TUBE

28

872229

WASHER

29

35C616

BOLT 5

30

17C620

BOLT

31

36K8

CAP

32

619021

WASHER, 5

33

35C536

BOLT

34

36K5

CAP

35

57D5

NUT

36

99K10

O'RING tapered boss face

36

79K10

O RING 10 flat boss face

37

VALVE See Illustration HYDRAULIC CONTROL VALVE/ PE1138R

38

6726253

MOUNT

39

59D5

NUT 5

39

59D6

NUT

40

83D6

NUT 5

41

84G3724

BOLT

42

17C540

BOLT

42

17C644

BOLT

43

6624289

STRAP, TIE

44

ELBOW NLA - flat boss face - W/1 in. Nut - W/ Ref 36 - Was 6727639 - A

44

6814531

ELBOW flat boss face - W/1.0625'' Nut - W/Ref. 53

45

ELBOW NLA - flat boss face - W/1 in. Nut - W/Ref 36 - Was 6715716 - A

45

17KB0810

FITTING, HYD ELBOW flat boss face - W/1.0625'' Nut - W/Ref. 36

46

TEE NLA - tapered boss face - W/Ref 36 - Was 6717503 - A

46

97K6

O RING flared end

46

21KB0610

FITTING, HYD TEE flat boss face - W/Ref. 36

47

ELBOW NLA - tapered boss face - W/Ref 36 - Was 17KV00007B - A

47

97K10

O-RING 10 flared end

47

17KB1010

FITTING, HYD ELBOW flat boss face - W/Ref. 36

48

6727707

CLAMP

49

6727638

TEE

49

97K6

O RING flared end

49

97K8

O-RING flared end

50

6737648

HOSE Was 6725436 - A

51

225855

SEAL, OIL 10 38 mm (1.5'') OD

52

7116565

HOSE Was 7104133 - A

53

79K8

O RING 10

54

6727705

HOSE available only as an assembly W/two danger decals installed

54

6809511

DECAL, DANGER

55

84G3728

BOLT

56

6727708

CLAMP

57

6726167

TUBE

58

ADAPTER NLA - W/Ref. 59 - tapred boss face - Was 6812646 - A

58

97K12

O'RING flared end

58

15KB1212

FITTING, HYD CONNECTOR flat boss face - W/Ref. 59

59

99K12

O RING tapered boss face

59

79K12

O RING 10 flat boss face

60

6726180

TUBE

61

6733684

TUBE Was 6730285 - A

62

6730209

TUBE

63

VALVE See Illustration BUCKET POSITIONING VALVE/ MS1943 NLA - Order 6673959 valve - Was 6666341 - A

64

6727646

BRACKET

65

7114236

HOSE .75'' thread female ends - Use (1) per tilt cylinder W/.75'' thread base end fitting
