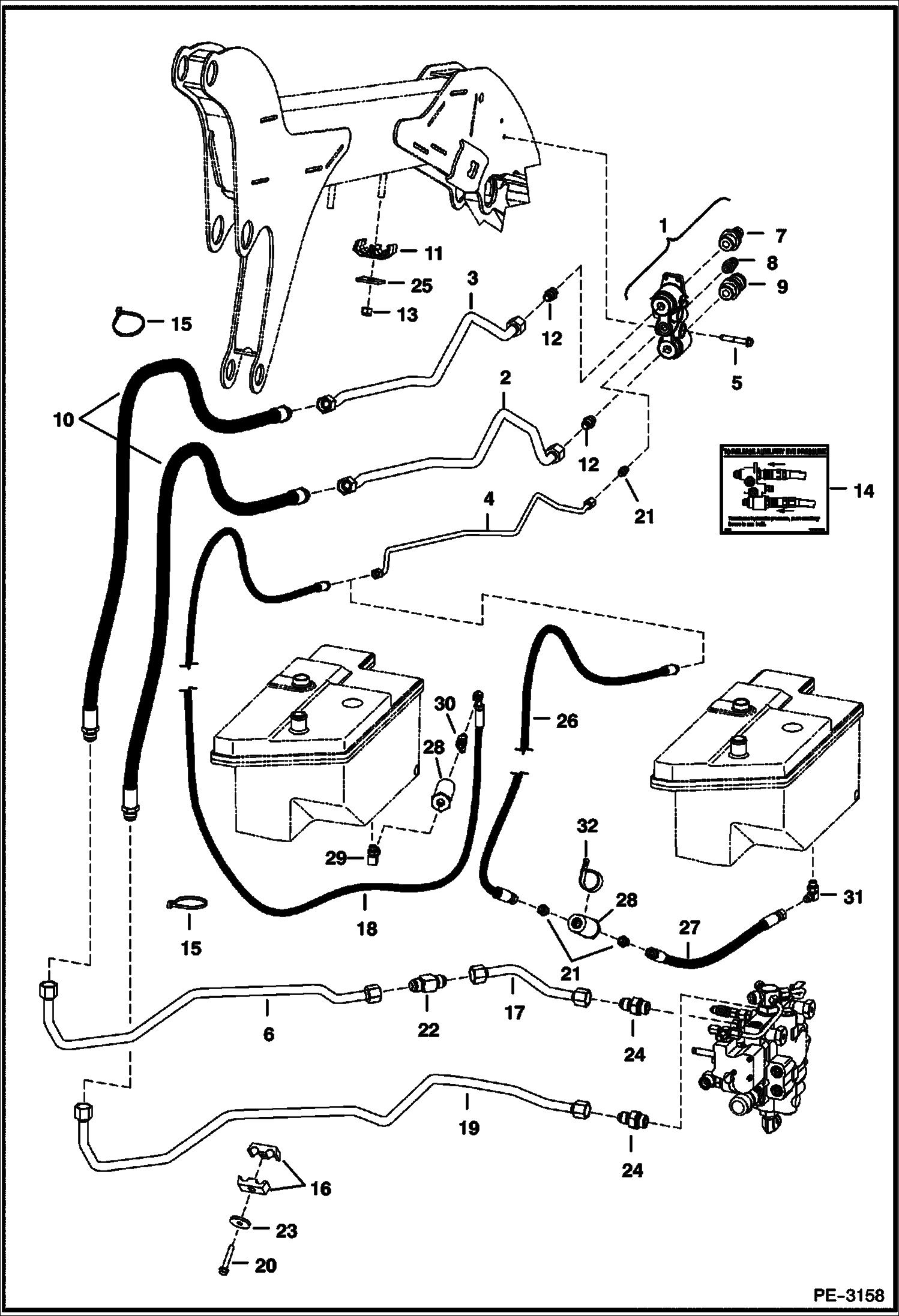

Запчасти Bobcat S-Series AUXILIARY HYDRAULICS (W/Pressure Relief Coupler Block) HYDRAULIC SYSTEM

1

6678076

BLOCK coupler - Ref. 7-9 & (2) of Ref. 12

2

6731230

TUBE

3

6731229

TUBE

4

6731231

TUBE

5

84G3740

BOLT

6

7115413

TUBE

7

6679837

COUPLER coupler - male - FF

7

6679841

SEAL blue

7

6680020

SEAL KIT (3) O-rings & (3) back-up washers

8

6679838

KIT, COUPLER male casedrain - W/valve, spring, seal & O-ring

8

6679840

SEAL blue

9

KIT coupler - female - FF - Order 6680018 coupler kit - Was 6679839 - A

9

6680018

COUPLER, KIT female - Use W/hydraulic breaker

9

6680020

SEAL KIT (3) O-rings & (3) back-up washers

10

6727657

HOSE W/cover

11

6717951

CLAMP

12

6679836

ADAPTER W/spring

12

79K12

O RING 10

13

59D8

NUT 5

14

6731757

DECAL, OPERATION to release auxiliary hyd. pressure - not in kit

15

6624289

STRAP, TIE

16

6592506

CLAMP

17

7115412

TUBE

18

7114121

HOSE single speed motor

19

7110264

TUBE

20

84G3740

BOLT

21

15KB0606

FITTING, HYD CONNECTOR

21

79K6

O RING 10

22

7114294

ADAPTER

23

872229

WASHER

24

15KB1216

FITTING, HYD CONNECTOR

24

79K6

O RING 10

25

6553709

WASHER

26

7126168

HOSE 2-speed motor

27

7126166

HOSE 2-speed motor

28

6661022

FILTER, OIL HYD IN-LINE See Illustration HYDROSTATIC CIRCUITRY/ PE2739 See Illustration HYDROSTATIC CIRCUITRY/ PE2743 See Illustration HYDROSTATIC CIRCUITRY/ PE3100

29

6715190

ELBOW See Illustration HYDROSTATIC CIRCUITRY/ PE2739 See Illustration HYDROSTATIC CIRCUITRY/ PE2743 See Illustration HYDROSTATIC CIRCUITRY/ PE3100

29

79K6

O RING 10

30

21KB0606

FTG HYD STRAIGHT TEE See Illustration HYDROSTATIC CIRCUITRY/ PE2739 See Illustration HYDROSTATIC CIRCUITRY/ PE2743 See Illustration HYDROSTATIC CIRCUITRY/ PE3100

30

79K6

O RING 10

31

17KB0606

FITTING

31

79K6

O RING 10

32

30H79

CLAMP
