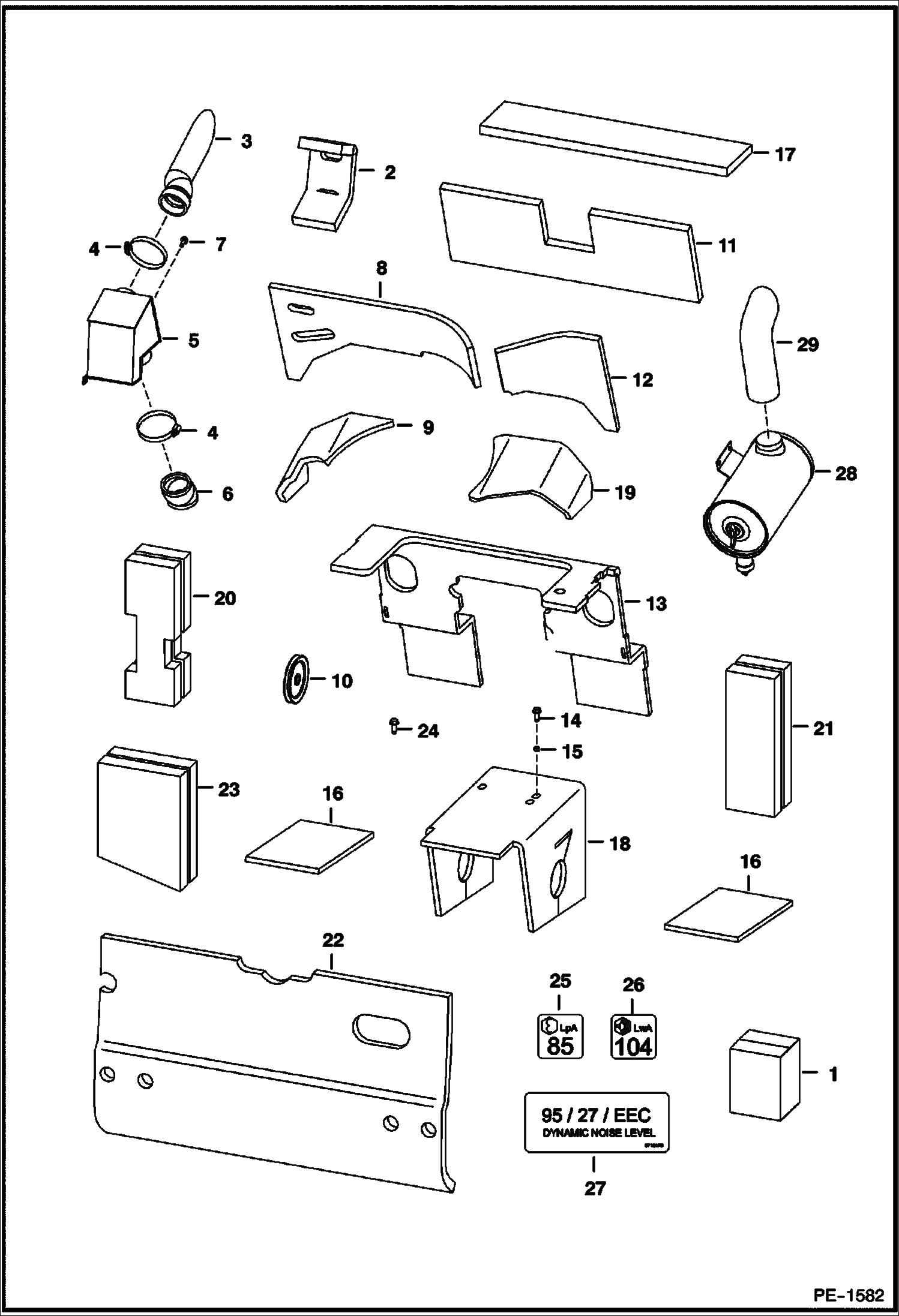

Запчасти Bobcat S-Series SOUND KIT (S/N 517625001 & Above, 518115001 & Above, 519028001 & Above, 519215001 & Above) ACCESSORIES & OPTIONS

1

6725419

KIT

2

6703331

INSULATION air inlet

3

HOSE NLA - Order Ref. 28 & 29 - intake - Was 6719886 - A

4

42H44

HOSECLAM5

5

MUFFLER NLA - Order Ref. 28 & 29 - intake - Was 6719649 - A

6

HOSE NLA - Order Ref. 28 & 29 - air cleaner - Was 6728476 - A

7

84G3112

BOLT 5

8

6719332

INSULATION blower housing

9

6704769

INSULATION blower housing

10

6712970

PULLEY

11

6732724

INSULATION cross member - Was 6719409 - A

12

6719333

INSULATION blower housing

13

6719372

INSULATION steering panel

14

84G3716

SCREW 5

15

6562619

BUSHING

16

6719330

INSULATION pedal

17

6725361

INSULATION cross member

18

6719331

INSULATION transmission top

19

6719334

INSULATION blower housing

20

6719327

INSULATION fender - L.H.

21

6719328

INSULATION fender - R.H.

22

6715106

INSULATION rear door

23

6703968

INSULATION transmission - Was 6719329 - A

24

84G3712

BOLT 5

25

6579385

DECAL noise level

26

6731994

DECAL, DECIBEL noise level - 104db - B

27

6715428

DECAL dynamic level

28

6735285

AIR CLEANER

29

6735349

HOSE
