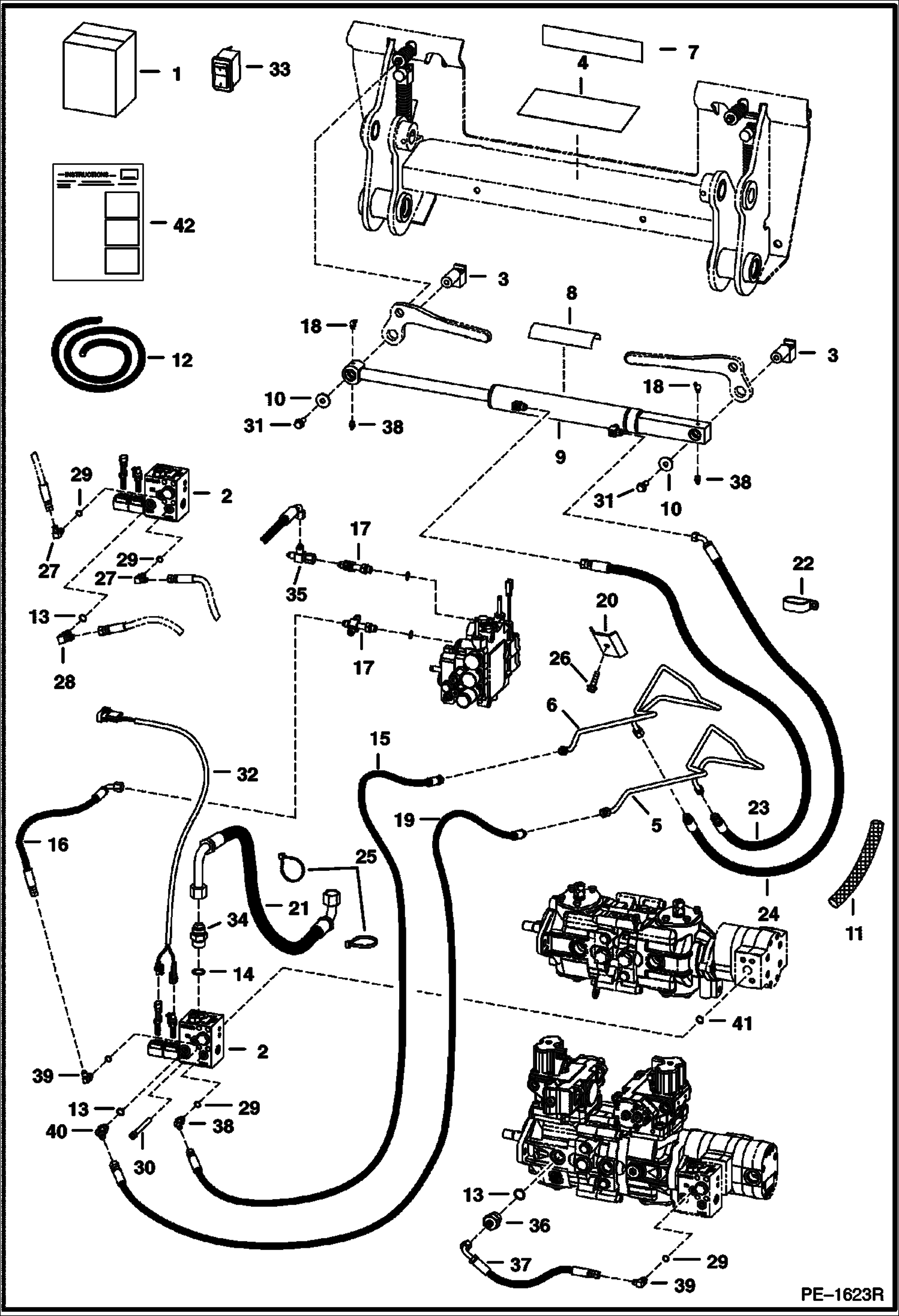

Запчасти Bobcat S-Series POWER BOB-TACH KIT ACCESSORIES & OPTIONS

1

6735465

KIT power Bob-Tach - Was 6727654 - A

2

VALVE See Illustration POWER BOB-TACH/ MS1835

3

6731119

PIVOT, WEDGE Not in kit - Was 6714576 - A

4

6719888

DECAL

5

6725552

TUBE

6

6725553

TUBE

7

6725907

DECAL, OPERATION power Bob-Tach

8

6555341

SAFETY TREAD Was 6554100 - B

9

CYLINDER See Illustration POWER BOB-TACH/ PE1064

10

619021

WASHER, 5

11

COVER NLA - Order Ref. 12 - 32'' (813 mm) long

12

6656155

HOSE COVER bulk - sold per foot - 1.25'' (31,8mm) ID

13

99K6

O RING tapered boss face

13

79K6

O RING 10 flat boss face

14

99K12

O RING tapered boss face

14

79K12

O RING 10 flat boss face

15

6719451

HOSE

16

6535882

HOSE

16

6731662

HOSE

17

CROSS See Illustration HYDRAULIC CONTROL VALVE/ B17109 Not in Kit

17

97K6

O RING flared end

18

10H35

FITTING, GREASE 10 straight

19

6718358

HOSE

20

6719884

BRACKET

21

6737503

HOSE Was 6727656 - A

22

31H49

CLAMP Was 30H000085B - A

23

6729202

HOSE

24

6729203

HOSE

25

6624289

STRAP, TIE

26

84G3716

SCREW 5 Was 84G003714B - A

27

ELBOW NLA - W/Ref. 29 - tapered boss face - Was 17KV00003B - A

27

97K4

O'RING flared end

27

17KB0404

FTG HYD ELBOW 90 flat boss face - W/Ref. 29

28

ELBOW NLA - W/Ref. 13 - tapered boss face - Was 17KV00005B - A

28

97K6

O RING flared end

28

17KB0606

FITTING W/Ref. 13 - flat boss face

29

99K4

O'RING tapered boss face

29

79K4

O RING 10 flat boss face

30

73G656

SCREW

31

35C616

BOLT 5

32

6730770

HARNESS

33

6676732

SWITCH vertical

33

6674585

SWITCH horizontal

34

ADAPTER NLA - W/Ref. 14 - tapered boss face - Was 15KV00008B - A

34

97K12

O'RING flared end

34

15KB1212

FITTING, HYD CONNECTOR W/Ref. 14 - flat boss face

35

13K5

TEE See Illustration MANUAL LIFT RELEASE SYSTEM/ PE1492R USED W/REAR AUX. OPTION - OPEN END CONNECTS TO Ref. 13

36

15KB0612

FITTING, HYD CONNECTOR W/Ref. 13 - flat boss face

37

7100044

HOSE 17.75'' (450,9mm) long - Not in Kit

37

6806403

HOSE 16'' (406,4 mm) long - manual controls

37

7110367

HOSE 1143 mm (45'') long - SJC

38

NLA - W/Ref. 29 - tapered boss face

38

97K4

O'RING flared end

38

18KB0404

FTG HYD ELBOW 45 W/Ref. 29 - flat boss face - Was 7109882 - B

39

NLA - W/Ref. 29 - tapered boss face

39

97K4

O'RING flared end

39

17KB0404

FTG HYD ELBOW 90 W/Ref. 29 - flat boss face

40

NLA - W/Ref. 29 - tapered boss face

40

97K6

O RING flared end

40

18KB0606

FITTING, HYD ELBOW W/Ref. 13 - flat boss face - Was 7109881 - B

41

55K214

O-RING

42

6902421

INSTRUCTIONS Was 6701439 - A
