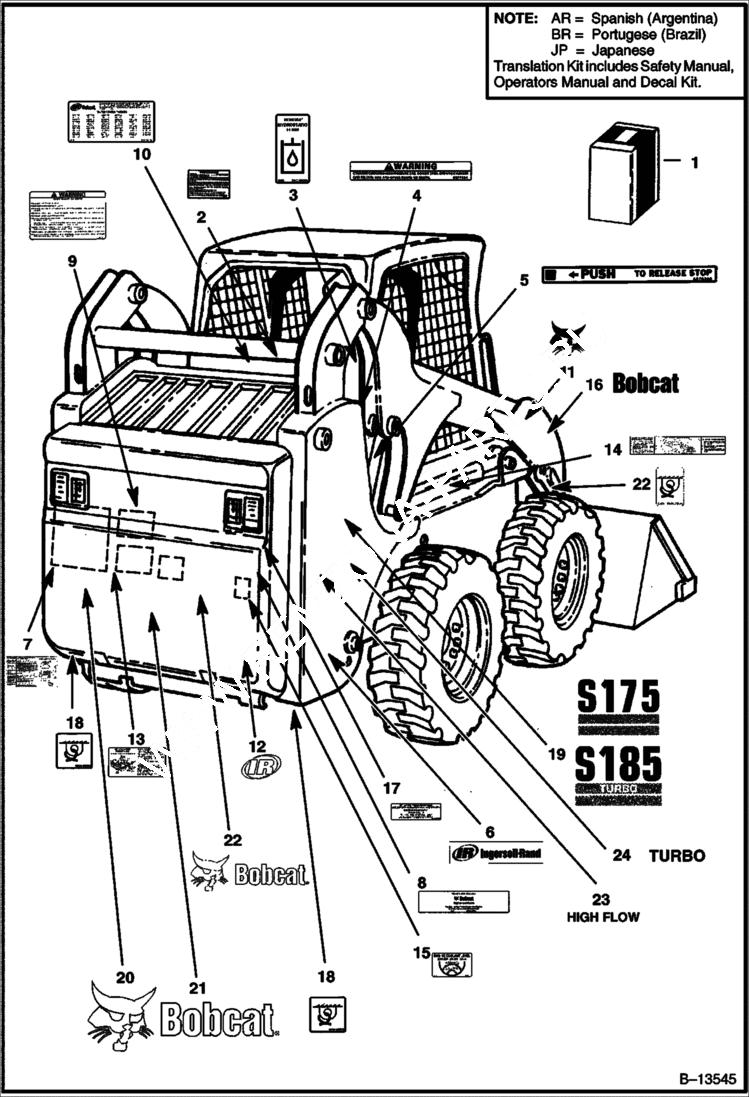

Запчасти Bobcat S-Series DECALS ACCESSORIES & OPTIONS

1

6902296

KIT decal

1

6734551AR

KIT decal - SEE NOTE - S175 - Was 6719796 AR - B,D

1

6734551BR

KIT decal - SEE NOTE - S175 - Was 6719796BR - B,D

1

6734551JP

KIT decal - SEE NOTE - S175 - Was 6719796 JP - B,D

1

6734555AR

KIT decal - SEE NOTE - S185

1

6734555BR

KIT decal - SEE NOTE - S185

1

6734555JP

KIT decal - SEE NOTE - S185

1

6734550AR

KIT translation - SEE NOTE - S175 - Was 6719795 AR - B,D

1

6734550BR

KIT translation - SEE NOTE - S175

1

6734554AR

KIT translation - SEE NOTE - S185 - Was 6719795BR - B,D

1

6734554BR

KIT translation - SEE NOTE - S185

2

6560573

DECAL spark arrestor

3

6565990

DECAL, OIL HYD 5 hydrostatic fluid fill

4

6577754

DECAL, WARNING 5 gas spring

5

6578368

DECAL, OPERATION push to release stop

6

DECAL NLA - IR Logo - Black - Was 6735864 - A

7

6734534

DECAL, SERVICE service/warning/service parts - Was 6718398 - A

8

6565200

DECAL, FILTER

9

6579511

DECAL warning - Not in Kit

10

DECAL NLA - patent - Was 6557224 - C

11

6731507

DECAL RH - Bobcat head - black

11

6731508

DECAL LH - Bobcat head - black

12

DECAL NLA - IR - not in kit - Was 6732423 - A

13

6709030

DECAL belt tension - spring loaded idler

14

6719018

DECAL boom stop

15

6719574

DECAL coolant level

16

6731336

DECAL Bobcat - black - Was 6731509 - A

17

6708929

DECAL, COOLANT propylene glycol

18

6727595

DECAL Was 6595014 - B

19

6732532

DECAL Model S175

19

6732533

DECAL Model S185

20

DECAL NLA - Bobcat head - white - Order ref. 22 - Was 6732420 - A

21

DECAL NLA - rear door - Bobcat - white - Order Ref. 22 - Was 6732419 - A

22

6735901

DECAL, LOGO BOBCAT HEAD white

23

6727913

DECAL hi-flow - Not in Kit

24

6727912

DECAL turbo - Not in Kit
