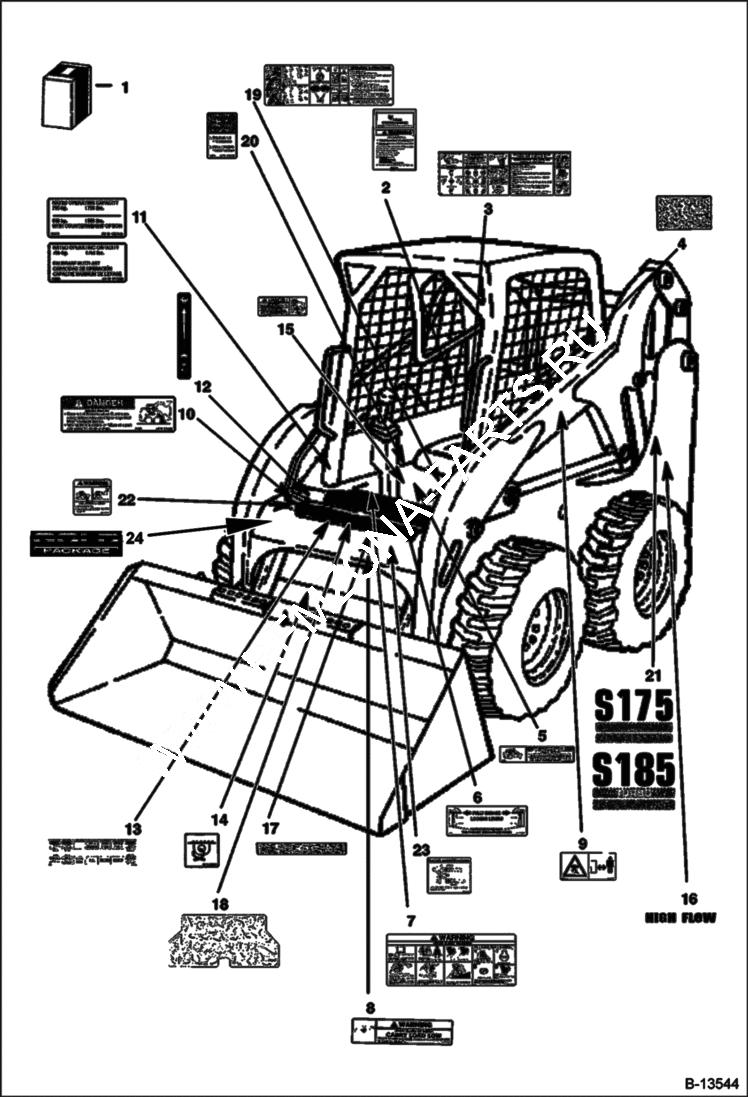

Запчасти Bobcat S-Series DECALS ACCESSORIES & OPTIONS

1

6902296

KIT decal - Was 6901068 - B,D

1

6734551AR

KIT decal - SEE NOTE - S175 - Was 6719796 AR - B,D

1

6734551BR

KIT decal - SEE NOTE - S175 - Was 6719796BR - B,D

1

6734551JP

KIT decal - SEE NOTE - S175 - Was 6719796 JP - B,D

1

6734555AR

KIT decal - SEE NOTE - S185

1

6734555BR

KIT decal - SEE NOTE - S185

1

6734555JP

KIT decal - SEE NOTE - S185

1

6734550AR

KIT translation - SEE NOTE - S175 - Was 6719795AR - B,D

1

6734550BR

KIT translation - SEE NOTE - S175

1

6734554AR

KIT translation - SEE NOTE - S185 - Was 6719795BR - B,D

1

6734554BR

KIT translation - SEE NOTE - S185

2

6902600

HANDBOOK, OPERATOR'S W/wire rope - not in kit - Was 6718719 - B,D

2

6558309

WIRE ROPE bulk - sold per foot - Also Order (2) of 6558310 sleeve

2

6558310

SLEEVE wire rope

2

17C512

BOLT 5

2

61D5

NUT

2

84G3112

BOLT 5

3

6727926

DECAL, OPERATION hand & foot controls - not in kit - Was 6728327 - A

3

6727926

DECAL, OPERATION hand & foot controls - not in kit

4

6554100

TREAD 76,2 x 152,4 mm (3 x 6'')

5

6702301

DECAL, DANGER Was 6579639 - A

6

6561383

DECAL, OPERATION 5 Bob-Tach locking levers

7

6728539

DECAL Was 6718698 - A

8

6579528

DECAL, WARNING carry load low

9

6713507

DECAL stay clear - European -Not in Kit

10

6702302

DECAL, DANGER Was 6579509 - A

11

7184778

DECAL, CAPACITY LIFT Was 6725092 - A

11

6718200

DECAL load 1750 - Not in Kit

11

7184779

DECAL, CAPACITY LIFT Was 6725374 - A

12

6735140

DECAL, THROTTLE Was 6557565 - A

13

6718774

DECAL fuse/relay - 2'' x 7'' (50,8 mm x 177,8 mm)

14

6727595

DECAL Was 6595014 - B

15

6717343

DECAL, DANGER

16

6727913

DECAL high flow - Not in Kit

17

6710746

SAFETY TREAD 1.25'' x 15'' (31,8 mm x 381 mm)

18

SAFETY TREAD NLA - 12'' x 25.30'' (304,8 mm x 642,6 mm) - Order 7108222 - Was 6712791 - A

18

7108222

SAFETY TREAD 22.5'' (571,5 mm) wide irregular shape

19

6727926

DECAL, OPERATION hand & foot controls - not in kit - Was 6718703 - A

19

6717639

DECAL seat & seat bar operating - AHC - Not in Kit

19

6727926

DECAL, OPERATION hand & foot controls - not in kit - Was 6727941 - A

20

6711840

DECAL lift lock

21

6732532

DECAL Model S175

21

6732533

DECAL Model S185

22

6710358

DECAL warning

23

6731757

DECAL, OPERATION to release auxiliary hyd. pressure - not in kit

24

6735862

DECAL gold package
