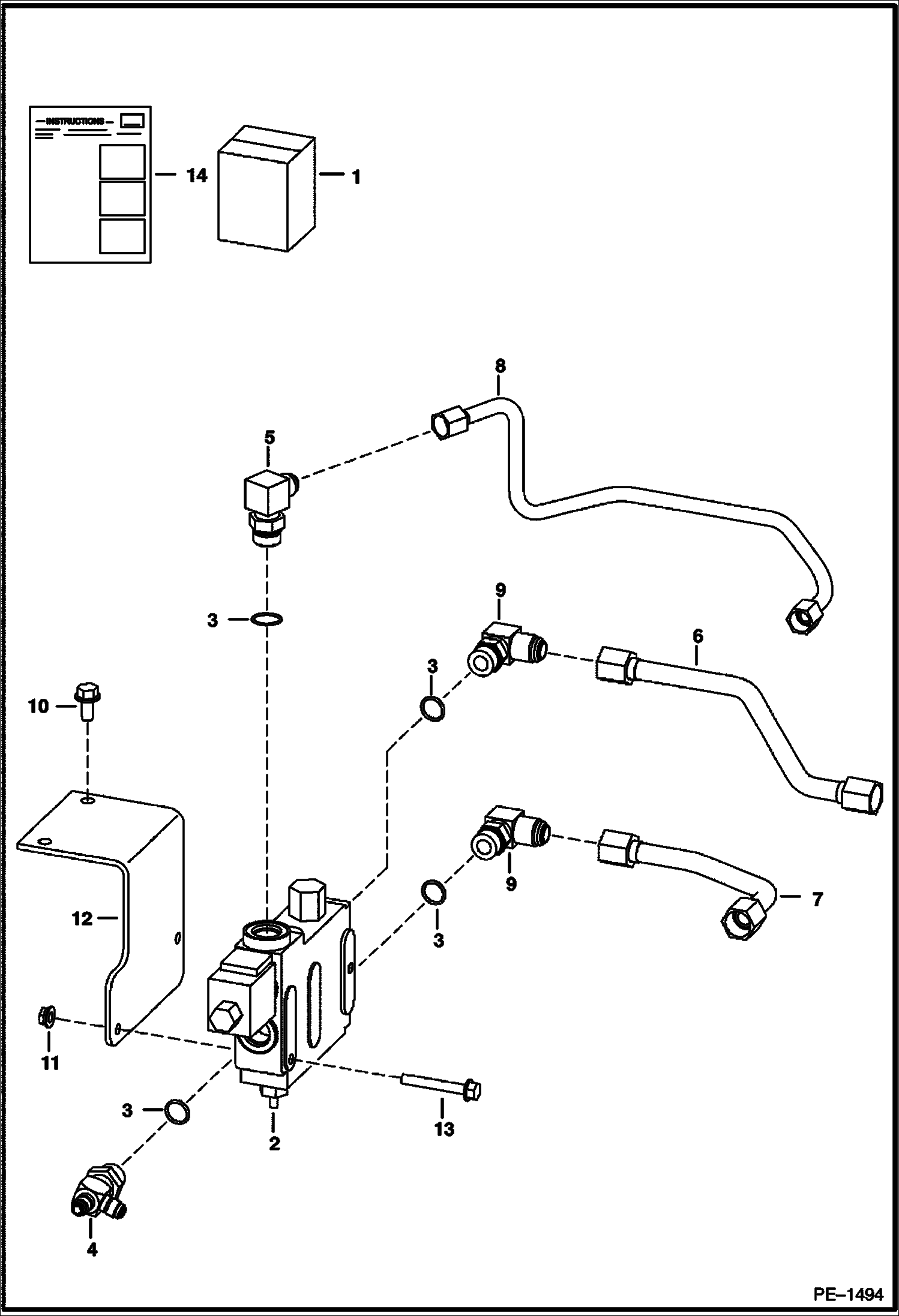

Запчасти Bobcat S-Series BUCKET POSITIONING VALVE KIT ACCESSORIES & OPTIONS

1

6730886

KIT Ref. 2 - 15

2

VALVE See Illustration BUCKET POSITIONING VALVE/ MS1943 NLA - Order 6673959 valve - if loader is not equipped with an on/off switch, Also Order 6647784 plug, 79K8 O-ring, 6647785 spring & 6647783 load

3

99K10

O'RING tapered boss face

3

79K10

O RING 10 flat boss face

4

TEE NLA - tapered boss face - W/Ref 3 - Was 6717503 - A

4

97K6

O RING flared end

4

21KB0610

FITTING, HYD TEE W/Ref 3 - flat boss face

5

ELBOW NLA - flat boss face - flared end O-ring - W/Ref. 3 - Was 6715716 - A

5

97K8

O-RING flared end

5

17KB0810

FITTING, HYD ELBOW

6

6733684

TUBE Was 6730285 - A

7

6730209

TUBE

8

6726180

TUBE

9

17KB1010

FITTING, HYD ELBOW W/Ref. 3 - Was 17KV00007B - A

9

97K10

O-RING 10 flared end

10

84G3712

BOLT 5

11

57D5

NUT

12

6727646

BRACKET

13

35C536

BOLT

14

6900838

INSTRUCTIONS
