Запчасти Bobcat S-Series EUROPEAN ACCESSORIES (Road Kit) ACCESSORIES & OPTIONS

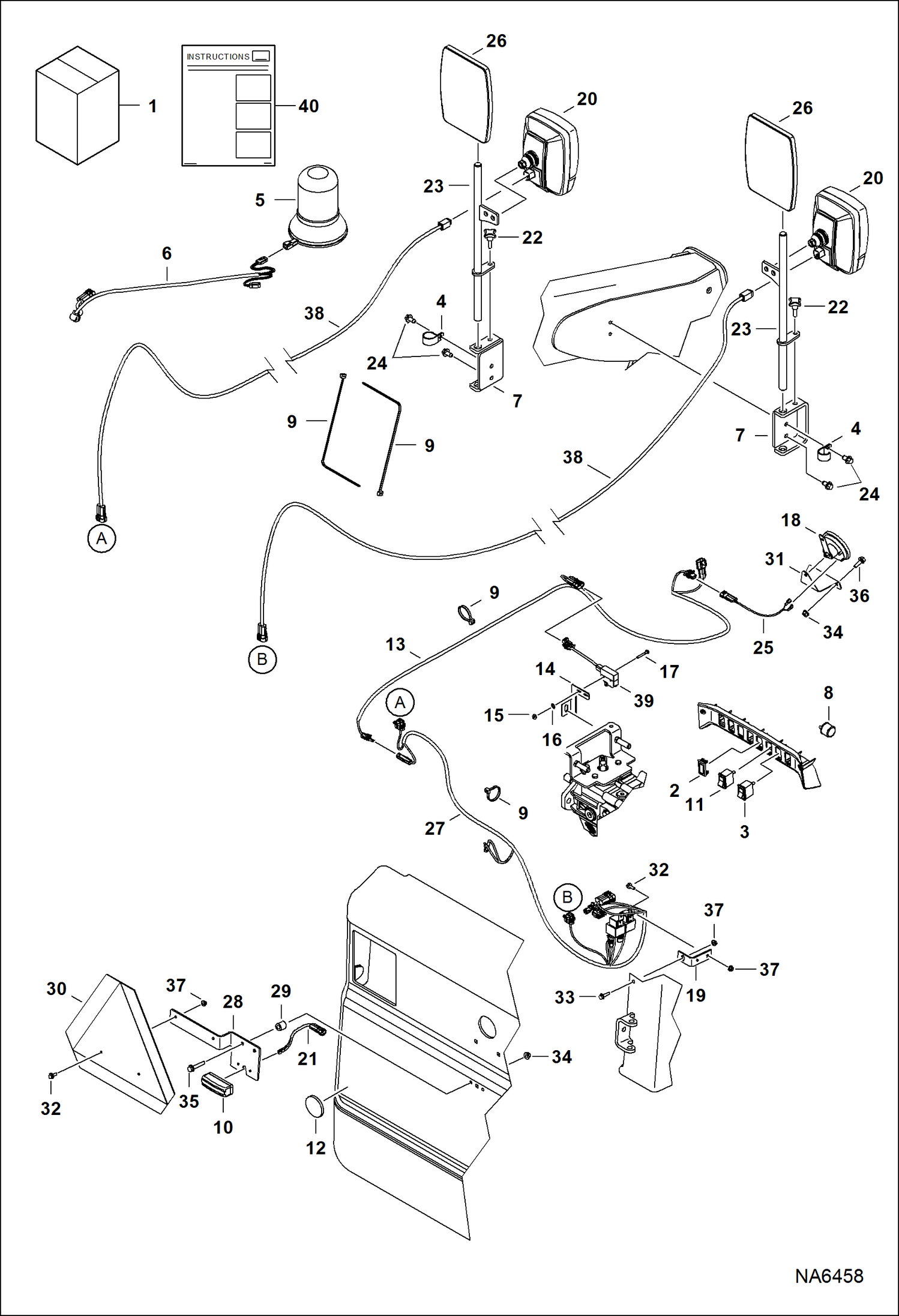

Схема запчастей Bobcat S-Series - EUROPEAN ACCESSORIES (Road Kit) ACCESSORIES & OPTIONS

Артикул

Название

Примечание

Количество

1

KIT SALES #71782369

2

6665314

PLUG

3

6668816

SWITCH

4

30H73

CLAMP

5

6675523

BEACON

6

6718872

HARNESS

7

7194092

BRACKET, RH

7

7194093

BRACKET, LH

8

6557904

FLASHER

9

6624289

STRAP, TIE

10

6665729

LIGHT

11

6668815

SWITCH

12

7191035

LENS, REFLECTIVE

13

7151691

HARNESS, BRAKE LIGHTS

14

7155044

BRACKET fuse

15

12D6

NUT 10

16

12E6

WASHER

17

85G616

SCREW 10

18

6671106

HORN

19

6702650

MOUNT .

20

7153089

LIGHT, FRONT ASSY

21

7153090

HARNESS, LIGHT LICENSE

22

7191193

HANDLE, KNOB RH

23

7153519

SHAFT, SPINDLE RH

23

7153521

SHAFT, SPINDLE LH

24

26GM10020

BOLT

25

6713994

HARNESS

26

7153522

MIRROR, SIDE HEAD

27

7141369

HARNESS, KIT ROAD

28

7156220

BRACKET

29

7157740

SPACER

30

7157745

SLOW MOVING PLATE - 12

31

7156351

BRACKET

32

29CM616

BOLT

33

29CM625

BOLT

34

43DM8

NUT

35

29CM845

BOLT

36

29CM825

BOLT

37

43DM6

NUT

38

7152108

HARNESS, LIFT ARM

39

6661150

SWITCH, ROLLER MICRO

40

INSTRUCTIONS NLA

Выбрано товаров: 42
