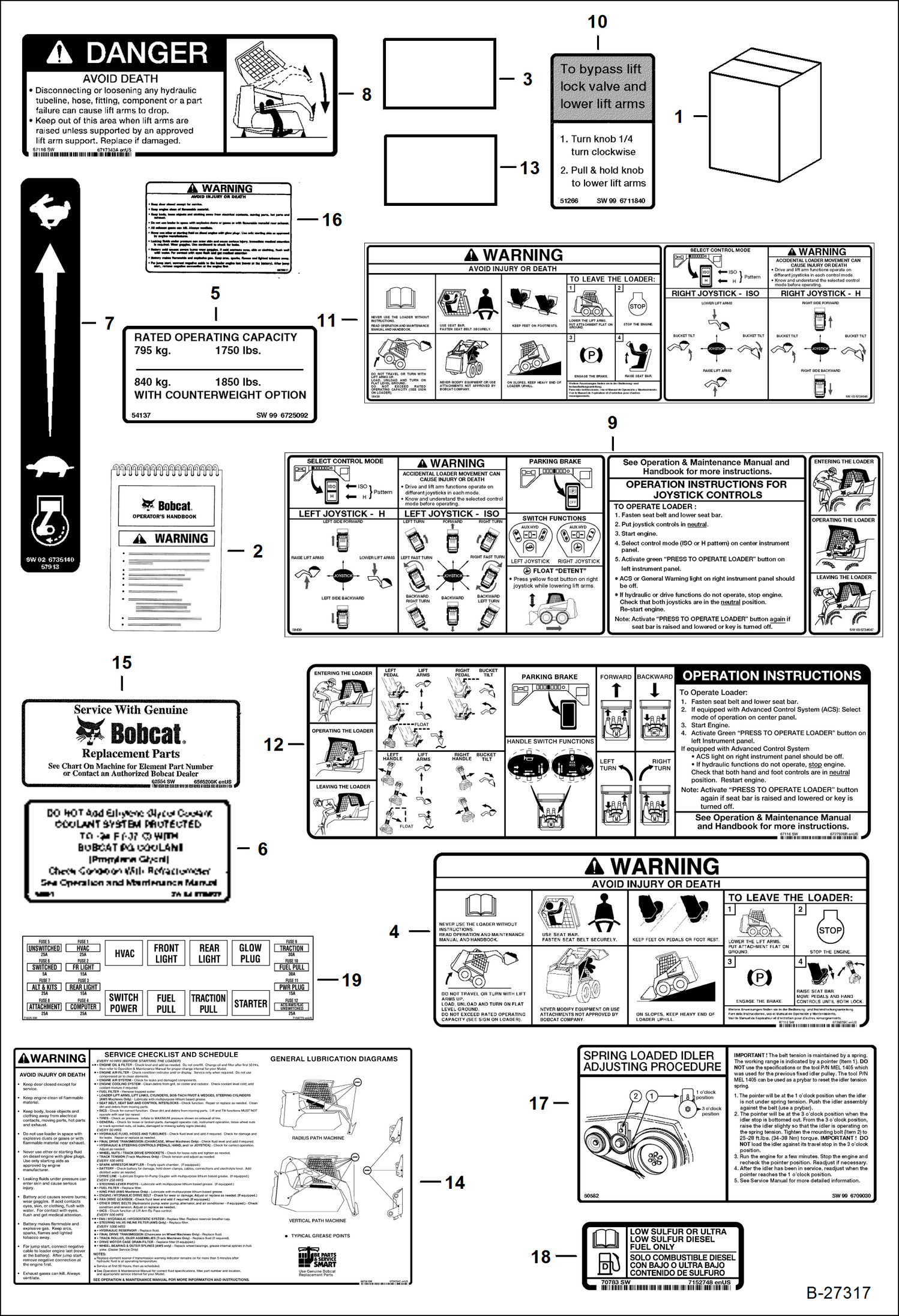

Запчасти Bobcat S-Series DECALS (Inside) ACCESSORIES & OPTIONS

1

6904996

KIT, DECAL

1

7120283AR

KIT, DECAL TRANSLATION

1

7120283BR

KIT, DECAL TRANSLATION

1

7120283JP

KIT, DECAL TRANSLATION

1

7163321AR

KIT, DECAL TRANSLATION

1

7163321BR

KIT, DECAL TRANSLATION

1

7163321CA

KIT, DECAL TRANSLATION Was 7163321JP - D

1

7120282AR

KIT, TRANSLATION S175 SPANISH Argentina

1

7120282BR

KIT, TRANSLATION S175 PORTUGUESE Brazil

2

6986651

OHB, W WIRE ROPE not in kit - Was 6902600 - B,D

2

6558309

WIRE ROPE bulk - sold per foot - Also Order (2) of 6558310 sleeve

2

6558310

SLEEVE wire rope

2

17C512

BOLT 5

2

61D5

NUT

2

84G3112

BOLT 5

3

6554100

TREAD 76,2 x 152,4 mm (3 x 6'')

4

6728539

DECAL

5

7184778

DECAL, CAPACITY LIFT Was 6725092 - A

5

6718200

DECAL load 1750 - not in kit

6

6708929

DECAL, COOLANT propylene glycol

7

6735140

DECAL, THROTTLE

8

6717343

DECAL, DANGER

9

6734647

DECAL, OPERATION selectable joystick controls - not in kit

10

6711840

DECAL lift lock

11

6734646

DECAL, WARNING selectable joystick controls - not in kit

12

6727926

DECAL, OPERATION hand & foot controls - not in kit

12

6717639

DECAL seat & seat bar operations - AHC - not in kit

13

6553976

SAFETY TREAD 127 x 203 mm (5 x 8'')

14

6734534

DECAL, SERVICE service checklist & schedule

15

6565200

DECAL, FILTER not in kit

16

6579511

DECAL warning - not in kit

17

6709030

DECAL belt tension - spring loaded idler

18

7152748

DECAL, FUEL DIESEL low sulfur

19

7117407

DECAL, FUSE inside fuse cover - 51 x 178 mm (2 x 7'')

19

7159779

DECAL fuse relay - 51 x 178 mm (2 x 7'')
