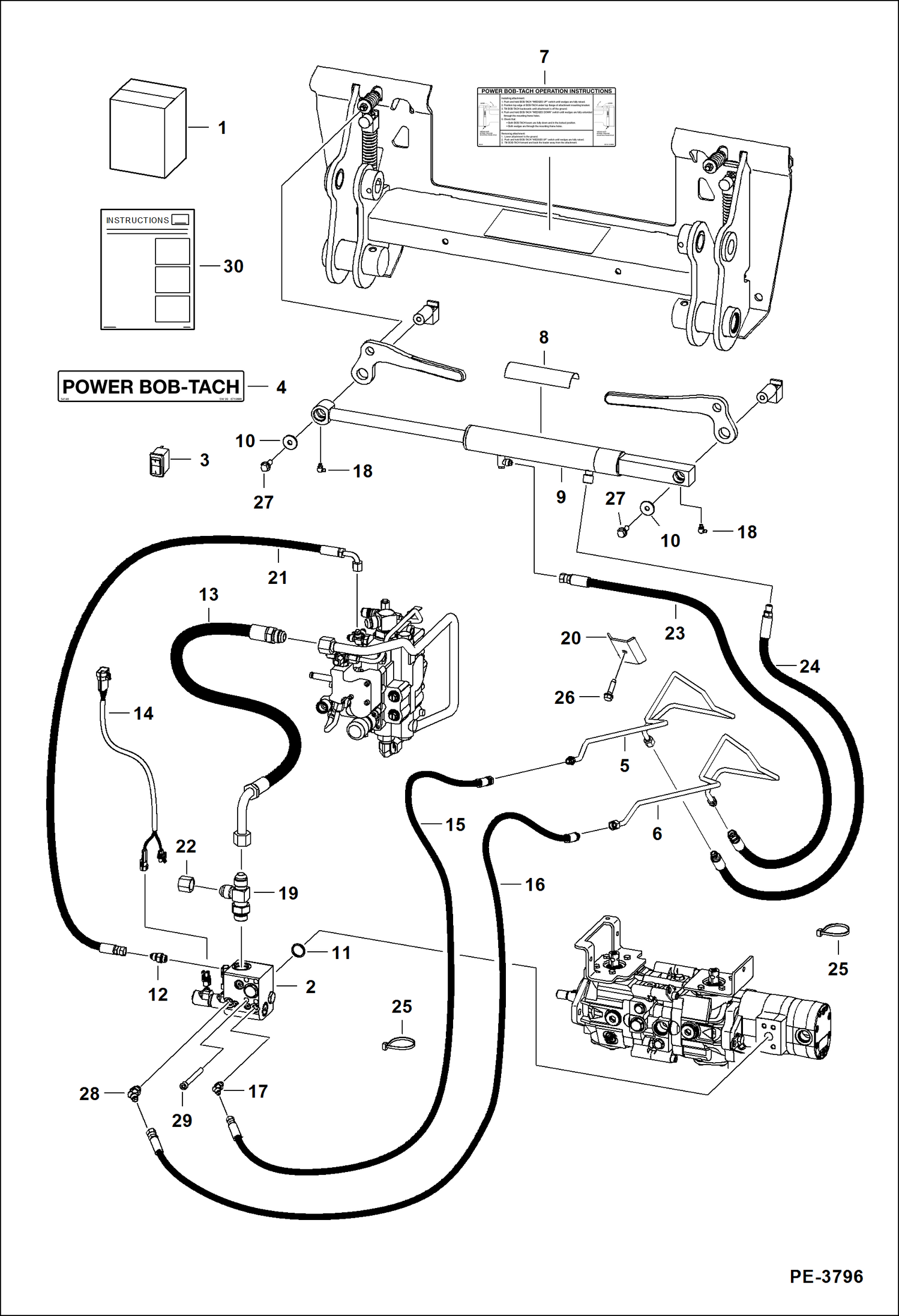

Запчасти Bobcat S-Series POWER BOB-TACH (Kit) (Bottom Mounted Cylinder Ports) ACCESSORIES & OPTIONS

1

7120898

KIT, POWER BOB-TACH if loader is not equipped W/deluxe cab accessories harness, heater, A/C, SJC, ACS, cab enclosure door kit, rear wiper or any of the following cab harness connected rotating beacon,

1

7120898

KIT, POWER BOB-TACH

2

VALVE See Illustration POWER BOB-TACH/ MS2724

3

6676732

SWITCH vertical

4

6719888

DECAL not in kit

5

6725552

TUBE

6

6725553

TUBE

7

6725907

DECAL, OPERATION power Bob-Tach

8

6555341

SAFETY TREAD

9

7160395

CYLINDER, POWER BOB-TACH See Illustration POWER BOB-TACH/ PE3799 - W/bottom mounted ports

10

619021

WASHER, 5

11

55K214

O-RING

12

15KB0404

FTG HYD S Connector

13

7115185

HOSE

14

7165185

HARNESS Was 7112290 - A

15

6719451

HOSE

16

6718358

HOSE

17

18KB0404

FTG HYD ELBOW 45

18

12H25

FITTING 90 degree

19

21KB1212

FITTING, HYD TEE W/bystander sound - not in kit

19

16KB1212

FITTING, HYD CONNECTOR straight - W/O bystander sound - not in kit

20

6719884

BRACKET

21

7110367

HOSE 1143 mm (45'') long - SJC

22

36K8

CAP

22

HOSE See Illustration SOUND/NOISE REDUCTION OPTION/ PE2840

23

7161046

HOSE, HYD 40.5'' (1028,7 mm) long

24

7161047

HOSE, HYD 35.5'' (901,7 mm) long

25

6624289

STRAP, TIE

26

84G3728

BOLT Was 84G3724 - A

27

35C616

BOLT 5

28

18KB0606

FITTING, HYD ELBOW 45 degree

28

17KB0606

FITTING 90 degree

29

73G656

SCREW

30

6904714

INSTRUCTIONS
