Запчасти Bobcat S-Series LIFT ARMS & BOB-TACH MAIN FRAME

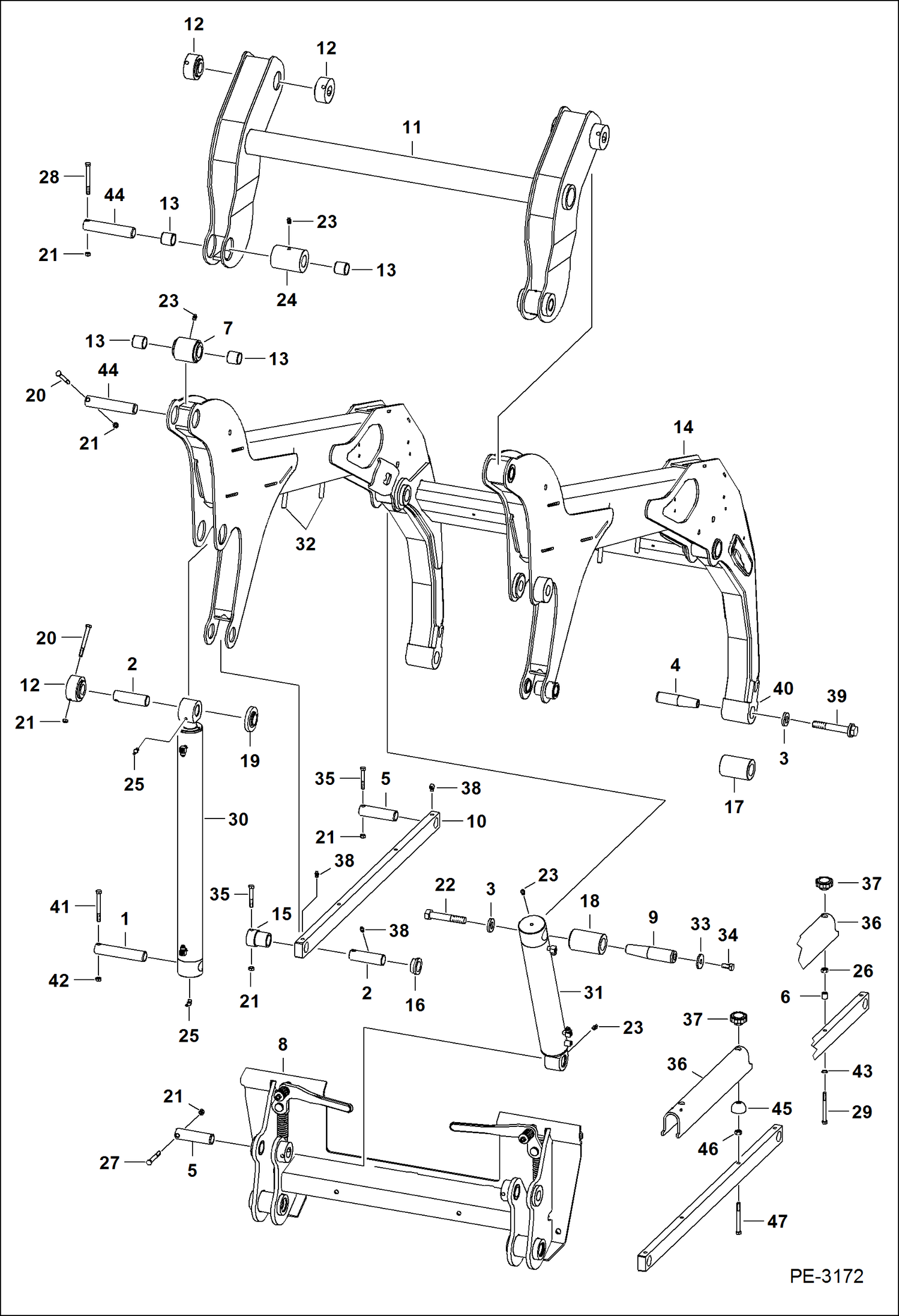

Схема запчастей Bobcat S-Series - LIFT ARMS & BOB-TACH MAIN FRAME

Артикул

Название

Примечание

Количество

1

6717560

PIN 1.25'' x 6.46'' (31,8 mm x 164,0 mm)

2

6718789

PIN 1.25'' x 4.40'' (31,8 mm x 111,8 mm)

3

27E10

WASHER

4

7101078

PIN, PIVOT TAPERED tapered - 38 x 103 mm (1.5 x 4.05'')

5

6577954

PIN, PIVOT 1.25'' x 4.65'' (31,7 mm x 118 mm)

6

6532347

SPACER

7

7216444

BUSHING, WELD-ON W/Ref. 13 - Was 6717039 - A

8

BOB-TACH See Illustration BOB-TACH/ PE1540

9

6734662

PIN, PIVOT TAPERED tapered - 1.5'' x 5.7'' (38,1 mm x 144,8 mm)

10

6727863

ROD LINK LH

10

6727863

ROD LINK RH - Also Order (2) each of Ref. 45-47 for mounting Ref. 36 lift arm stop

11

6732264

FRAME LINK

12

6717246

BUSHING weld on

13

6717562

BUSHING, WEAR

14

LIFT ARM See BTI380 NLA - Was 6737182 - A

14

LIFT ARM See BTI380 NLA - Was 7114758 - A

14

7114257

LIFT ARM

15

6717026

BUSHING weld on

16

6717025

BUSHING weld on

17

7120498

BUSHING weld on - service only - 3.05 '' (77,5 mm) long - for Ref. 14 (NLA/6737182 lift arm) - W/tapered hole for 1.5'' (38,1 mm) dia pin

17

7160425

BUSHING, TAPERED weld on - service only - 3.50'' (87,6 mm) long for Ref.14 (7114257 lift arm) - W/tapered hole for 1.5'' (38,1 mm) dia pin

18

6734660

BUSHING weld on

19

6717041

BUSHING weld on

20

17C656

BOLT

21

85D6

NUT, 5

22

17C1080

SCREW Was 31C001272B - B,D

23

10H25

FITTING, GREASE 5

24

7216445

BUSHING, WELD-ON W/Ref. 13 - Was 6732265

25

11H15

GREASE FITTING

26

6718942

NUT

27

17C648

BOLT 5

28

17C660

BOLT

29

6730290

BOLT stainless steel

30

CYLINDER See Illustration LIFT CYLINDER/ PE2748 LIFT

31

CYLINDER See Illustration TILT CYLINDER/ PE2870 TILT

32

1313995

STUD weld on

33

6731160

WASHER

34

17C1016

BOLT

35

17C640

BOLT 5

36

6718312

STOP lift arm

37

6684932

KNOB

38

12H15

FITTING, GREASE 5

39

17C1072

BOLT Use W/Ref. 14 (NLA/ 6737182 lift arm & NLA/ 7114758 lift arm)

39

47C1088

BOLT W/pre-applied thread lock - Use W/Ref. 14 (7114257 lift arm)

40

ARM NSS - lower - weld on

41

17C660

BOLT

41

7129700

SCREW

42

85D6

NUT, 5

42

53DM10

NUT

43

6E6

WASHER

44

7170357

PIN, PIVOT 32 x 159 mm (1.25 x 6.26'') - Was 6717560 - B

45

7202444

DAMPER

46

7D6

NUT

47

7197120

BOLT
