Запчасти Bobcat S-Series FRONT AUXILIARY (RH Kit) (S/N 525011001 & Above, 525111001 & Above) ACCESSORIES & OPTIONS

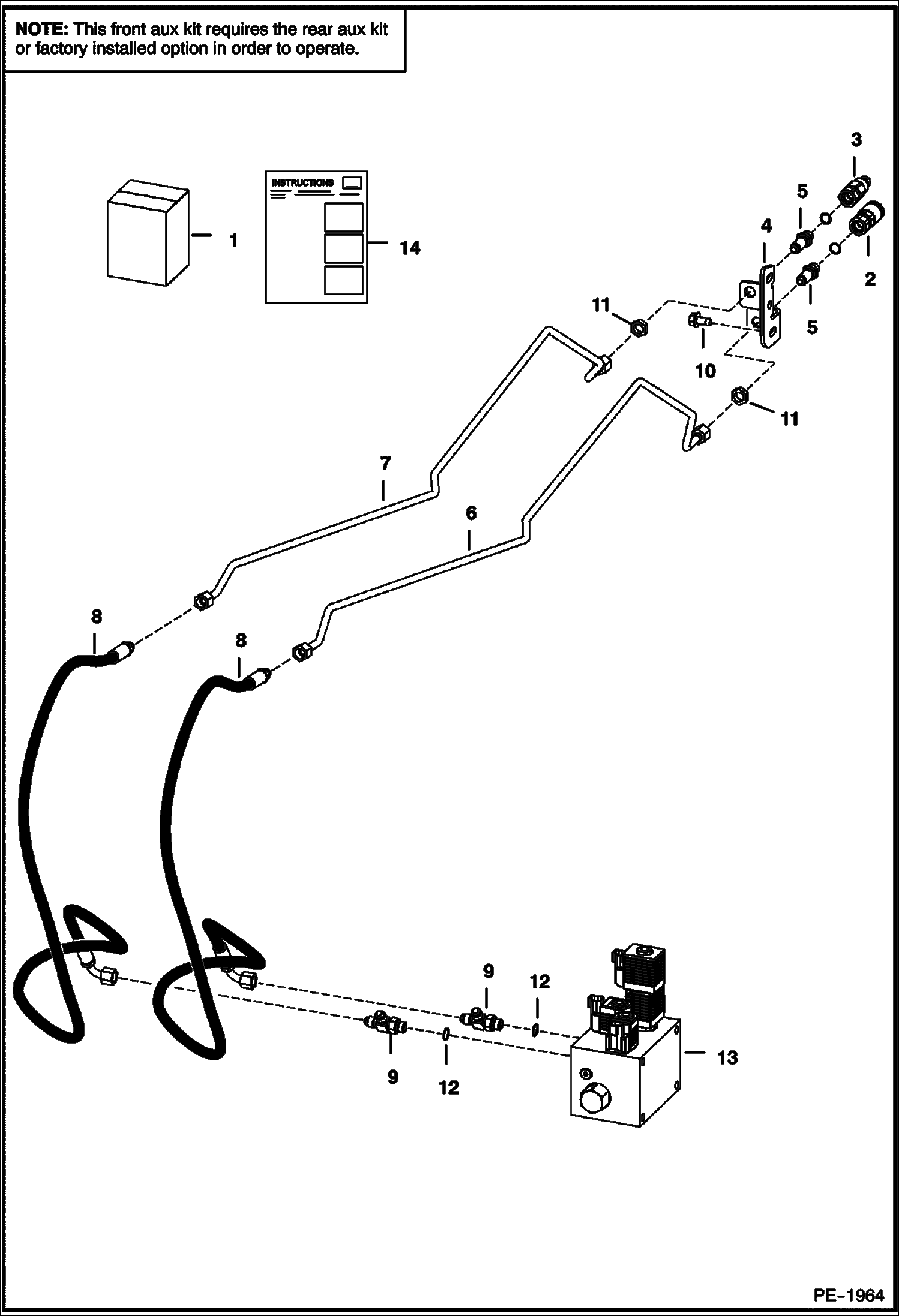

Схема запчастей Bobcat S-Series - FRONT AUXILIARY (RH Kit) (S/N 525011001 & Above, 525111001 & Above) ACCESSORIES & OPTIONS

Артикул

Название

Примечание

Количество

1

6731524

KIT requires rear auxiliaries

2

6667803

COUPLER, FF FEMALE

3

6667804

COUPLER, FF MALE

3

6669657

SEAL KIT

4

6711674

MOUNT

5

6716089

CONNECTOR W/ O-rings

6

6718244

TUBE

7

6718245

TUBE

8

6718454

HOSE

9

17KB0606

FITTING W/Ref. 12

9

21KB0606

FTG HYD STRAIGHT TEE W/Ref. 12

10

84G3712

BOLT 5

11

86F5

NUT

12

79K6

O RING 10

13

VALVE, AUX REAR See Illustration REAR AUXILIARY VALVE/ B21972R not in kit - Was 6669203 - D

14

6901515

INSTRUCTIONS

Выбрано товаров: 16
