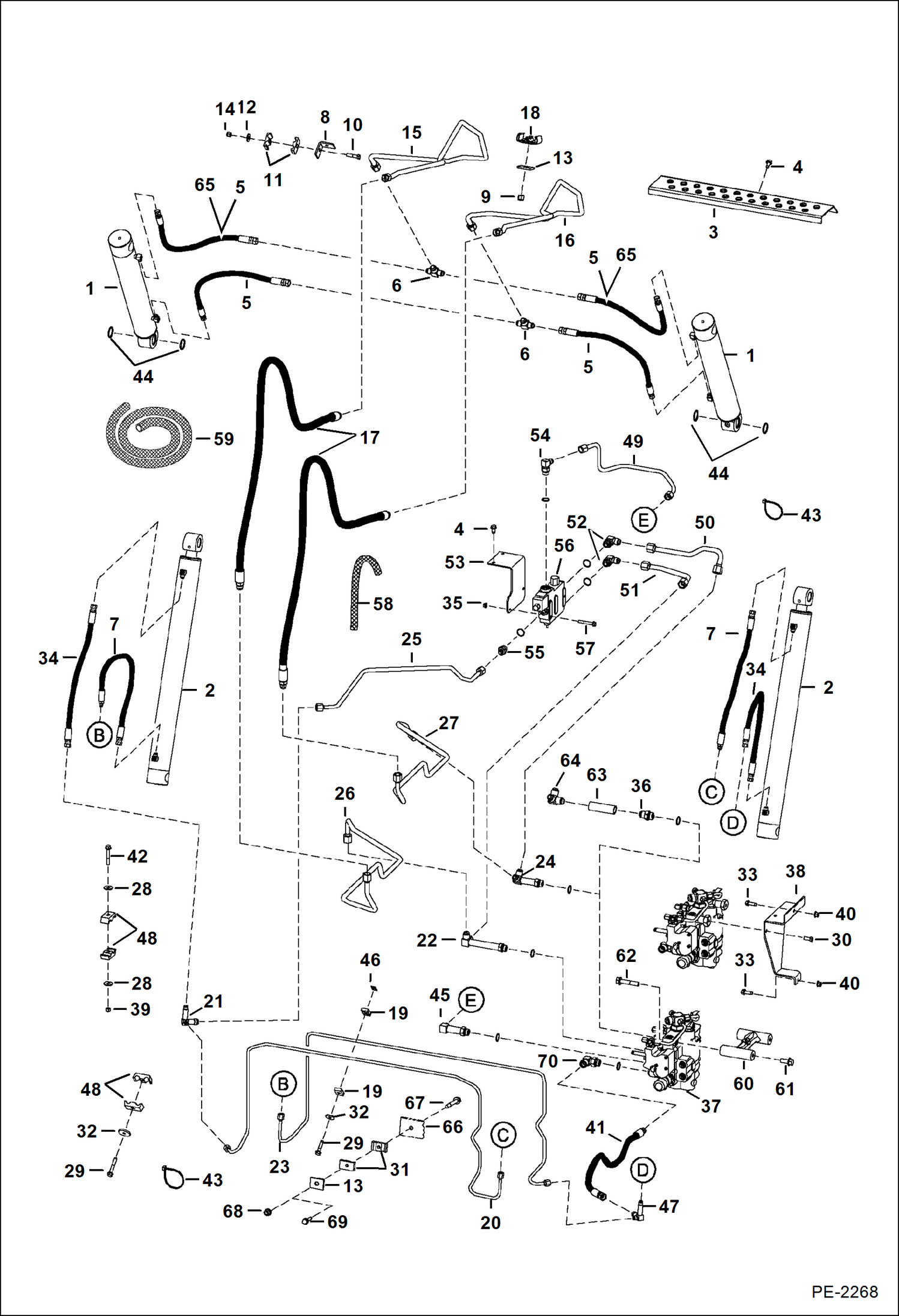

Запчасти Bobcat S-Series HYDRAULIC CIRCUITRY (W/Bucket Positioning Valve) (S/N 525215001 & Above, 525315001 & Above, 525015001 & Above, 525115001 & Above) HYDRAULIC SYSTEM

1

CYLINDER See Illustration TILT CYLINDER/ PE1056 TILT

2

CYLINDER See Illustration LIFT CYLINDER/ B13593 LIFT

3

6735669

BOOM STEP

4

84G3712

BOLT 5

5

6718066

HOSE .5625'' thread & .75'' thread female ends - Use (2) per tilt cylinder W/.5625'' thread base end fitting

5

6718066

HOSE .5625'' thread & .75'' thread female ends - Use (1) per tilt cylinder W/.75'' thread base end fitting

6

6716061

TEE

7

7116564

HOSE Was 7104132 - A

8

6718238

BRACKET

9

59D8

NUT 5

10

17C628

BOLT

11

6701893

CLAMP

12

27E6

WASHER 5

13

6553709

WASHER

14

59D6

NUT

15

6718030

TUBE Was 6734495 - B

16

6725337

TUBE Was 6734496 - B

17

6719439

HOSE Was 6539418 - W/Ref. 58 - B

18

6717933

CLAMP

19

6726277

CLAMP

20

7101645

TUBE

21

7101648

TEE

22

6730142

TEE

22

79K10

O RING 10

23

7101649

TUBE

24

6733190

TEE

24

79K10

O RING 10

25

7101647

TUBE

26

7112911

TUBE

27

7110262

TUBE

28

872229

WASHER

29

84G3728

BOLT

30

17C620

BOLT

31

6727708

CLAMP

32

619021

WASHER, 5

33

84G3720

BOLT

34

7116565

HOSE Was 7104133 - A

35

57D5

NUT

36

15KB1010

FITTING, HYD CONNECTOR

36

79K10

O RING 10

37

VALVE See Illustration HYDRAULIC CONTROL VALVE/ PE2262

38

6733189

MOUNT

39

59D6

NUT

40

83D6

NUT 5

41

6727705

HOSE available only as an assembly W/two danger decals installed

41

6809511

DECAL, DANGER

41

79K8

O RING 10

42

17C632

BOLT 5

43

6624289

STRAP, TIE

44

225855

SEAL, OIL 10 38 mm (1.5'') OD

45

6733191

ELBOW

45

79K10

O RING 10

46

6684033

NUT

47

6727638

TEE

48

6592506

CLAMP

49

6734192

TUBE

50

6733196

TUBE

51

6733195

TUBE

51

7112912

TUBE

52

17KB1010

FITTING, HYD ELBOW

52

79K10

O RING 10

53

6727646

BRACKET

54

17KB0810

FITTING, HYD ELBOW

54

79K10

O RING 10

55

15KB0810

FITTING, HYD CONNECTOR

55

79K10

O RING 10

56

VALVE NLA - order 6673959 valve - Was 6666341 - A

57

35C536

BOLT

58

CONDUIT NLA - 30''(762 mm) long - Order Ref. 50

59

6643249

CONDUIT bulk - sold per foot

60

7109934

MOUNT, VALVE

61

31C820

BOLT

62

17C844

BOLT

63

7112910

ELBOW Was 7112783 - A

64

6705070

TEE

65

7114236

HOSE .75'' thread female ends - Use (1) per tilt cylinder W/.75'' thread base end fitting

66

BRACKET NSS - weld on

67

BOLT See BTI381 - button head

68

NUT See BTI381

69

84G3728

BOLT

70

6814531

ELBOW

70

79K10

O RING 10
