Запчасти Bobcat S-Series REAR AUXILIARY (S/N 517625001-517628699, 518115001-518116749, 519028001-519037199, 519215001-519215549) ACCESSORIES & OPTIONS

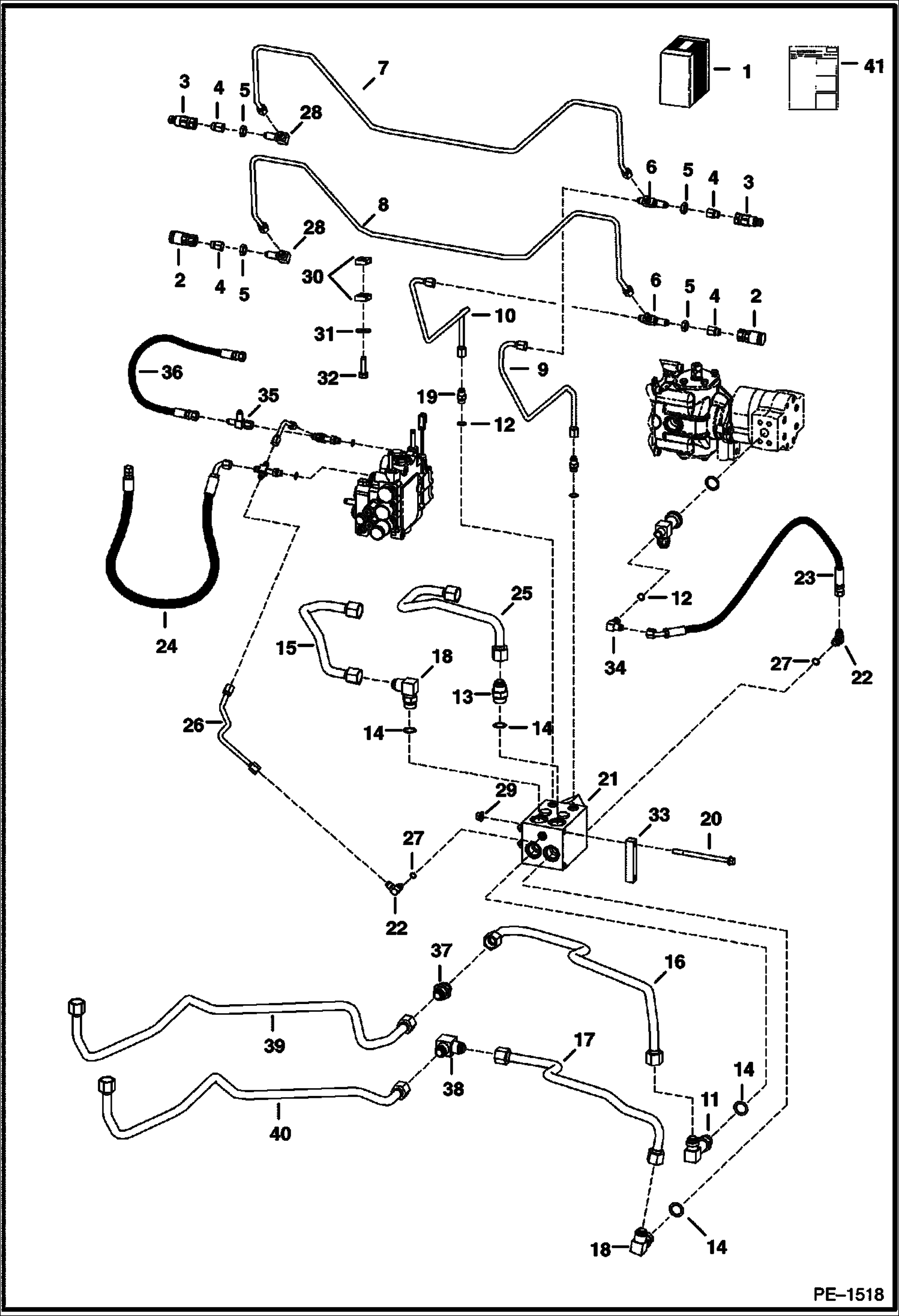

Схема запчастей Bobcat S-Series - REAR AUXILIARY (S/N 517625001-517628699, 518115001-518116749, 519028001-519037199, 519215001-519215549) ACCESSORIES & OPTIONS

Артикул

Название

Примечание

Количество

1

6731235

KIT Ref. 2 - 23, 25 - 34 & 41 - Was SALES - D

2

6667803

COUPLER, FF FEMALE

3

6667804

COUPLER, FF MALE

3

6669657

SEAL KIT

4

6706633

ADAPTER

5

86F5

NUT

6

91K5

TEE Was 6719298 - A

7

6726273

TUBE

8

6726272

TUBE

9

6726268

TUBE

10

6726267

TUBE

11

6716443

ELBOW W/Ref. 14 - check boss face to determine correct replacement O-ring - Was 6716443 - A

11

97K6

O RING flared end

12

99K6

O RING tapered boss face

12

79K6

O RING 10 flat boss face

13

ADAPTER NLA - W/Ref. 14 - tapered boss face - Was 15KV00008B - A

13

97K12

O'RING flared end

13

15KB1212

FITTING, HYD CONNECTOR W/Ref. 14 - flat boss face

14

99K12

O RING tapered boss face

14

79K12

O RING 10 flat boss face

15

6726264

TUBE

16

6731245

TUBE

17

6731246

TUBE

18

ELBOW NLA - W/Ref. 14 - tapered boss face - Was 17KV00008B - A

18

97K12

O'RING flared end

18

17KB1212

FITTING, HYD ELBOW W/Ref. 14 - flat boss face

19

ADAPTER NLA - W/Ref. 12 - tapered boss face - Was 15KV00005B - A

19

97K6

O RING flared end

19

15KB0606

FITTING, HYD CONNECTOR W/Ref. 12 - flat boss face

20

35C688

BOLT

21

VALVE See Illustration REAR AUXILIARY VALVE/ TS1362 - Was 6675073 - A

22

ELBOW NLA - W/Ref. 27 - tapered boss face - Was 6718182 - A

22

97K6

O RING flared end

22

17KB0604

ELBOW UNION W/Ref. 27 - tapered boss face

23

6718208

HOSE

24

6737648

HOSE Not in Kit - Was 6725436 - A

25

6726263

TUBE

26

6726269

TUBE

27

99K4

O'RING tapered boss face

27

79K4

O RING 10 flat boss face

28

88F5

ELBOW Was 88FN00005B - A

29

83D6

NUT 5

30

6726277

CLAMP Was 6578870 - A

31

619021

WASHER, 5

32

84G3724

BOLT

33

6726293

SPACER BLOCK

34

ELBOW NLA - W/Ref. 12 - tapered boss face - Was 17KV00005B - A

34

97K6

O RING flared end

34

17KB0606

FITTING W/Ref. 12 - flat boss face

35

13K5

TEE Not in Kit - Use W/Power Bob-Tach Option - Was 13KN00005B - A

36

6732118

HOSE Not in Kit - Use W/Power Bob-Tach Option - Was 6535451 - B

37

87F8

UNION Was 87FN00008B - A

38

77F8

ELBOW

39

6726185

TUBE

40

6726186

TUBE

41

6901514

INSTRUCTIONS Was 6901098 - B

Выбрано товаров: 56
