Запчасти Bobcat S-Series INJECTOR HOLDER (Kubota - V2003T) POWER UNIT

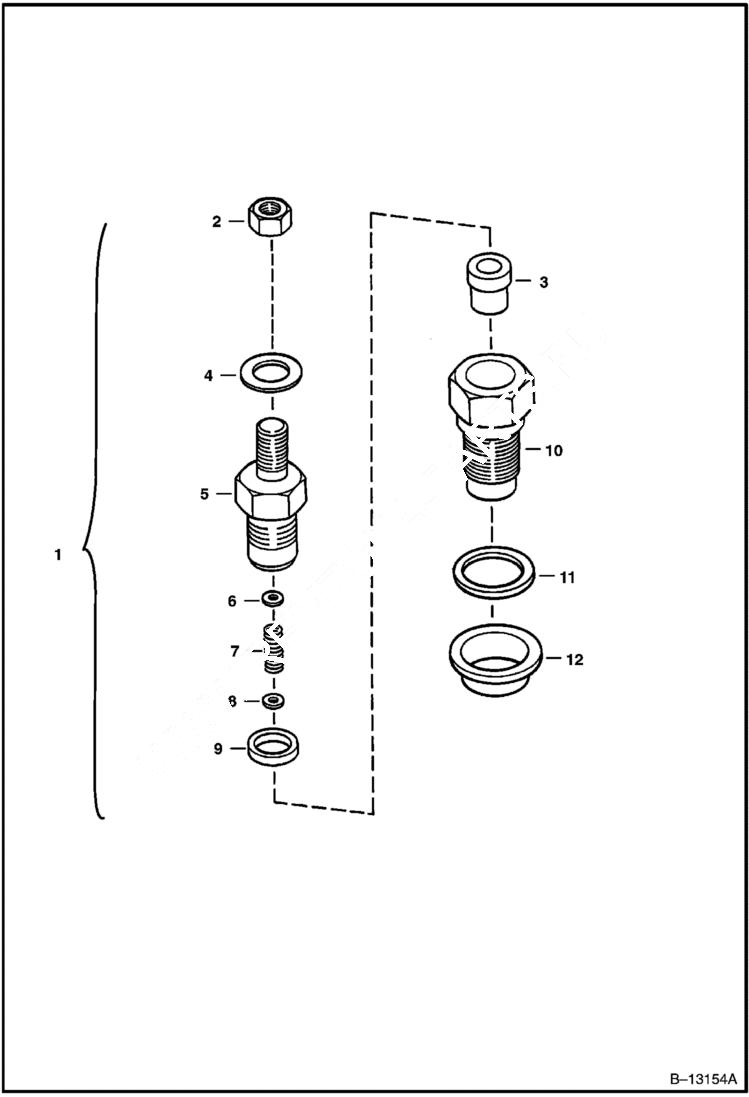

Схема запчастей Bobcat S-Series - INJECTOR HOLDER (Kubota - V2003T) POWER UNIT

Артикул

Название

Примечание

Количество

1

7023120

INJECTOR, FUEL ASSY nozzle - Ref. 2-12 - Was 6722147 - A

1

6722147REM

NOZZLE, FUEL INJ. KUBOTA V2203 nozzle - Ref. 2-12

2

6657460

NUT

3

6655873

NOZZLE nozzle

4

6657463

WASHER W/(2) bleeder holes

5

BODY NSS - nozzle holder

6

6657742

KIT washer - (.900mm thru 1.950mm)

6

6656126

WASHER adjusting (1,000 mm)

6

6656127

WASHER adjusting (1,050 mm)

6

6656128

WASHER adjusting (1,100 mm)

6

6656129

WASHER adjusting (1,150 mm)

6

6656130

WASHER adjusting (1,200 mm)

6

6656131

WASHER adjusting (1,250 mm)

6

6656132

WASHER adjusting (1,300 mm)

7

SPRING NSS - nozzle

8

PIECE NSS - distance

9

PUSH ROD NSS

10

NUT NSS - nozzle

11

6655218

GASKET

12

6655872

HEAT SEAL

Выбрано товаров: 20
