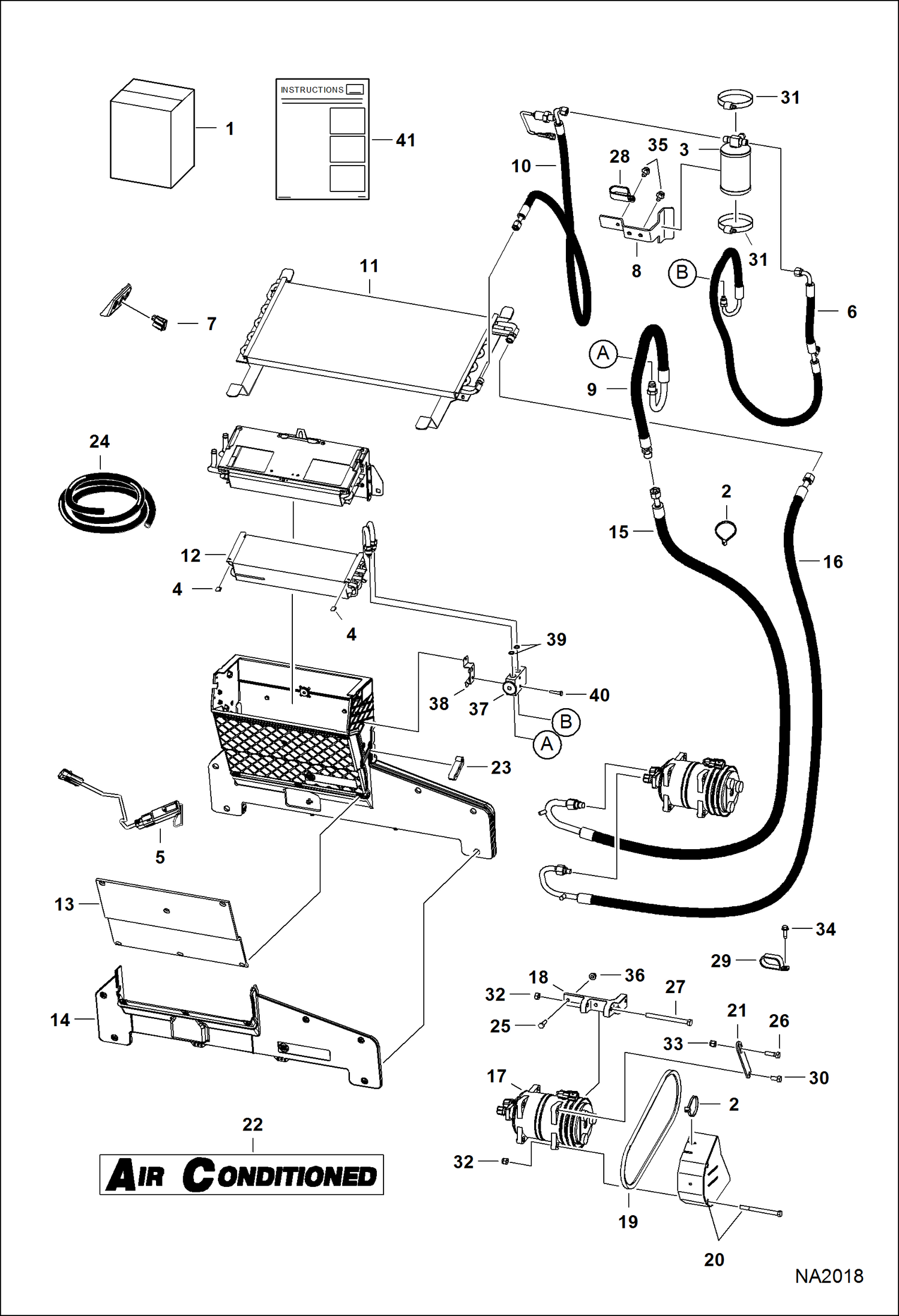

Запчасти Bobcat S-Series HEATER & A/C (A/C Kit) (Used on Heaters W/Plastic Housing) ACCESSORIES & OPTIONS

1

7166138

KIT A/C

2

6624289

STRAP, TIE

3

6674235

RECEIVER DRIER

4

6676539

CLIP

5

7008040

MODULE, DE-ICER ELECTRONIC Was 6683004 - A

6

6698442

HOSE

6

6677122

CAP

6

7009976

O-RING #6 - Was 6675824 - A

7

7169112

SWITCH, ROCKER A/C Was 6719176 - A

8

6726620

BRACKET

9

6726623

HOSE

9

7009978

O-RING #10 - Was 6675825 - A

10

6727414

HOSE

10

7009976

O-RING #6 - Was 6675824 - A

11

6733001

CONDENSER

12

7002707

EVAPORATOR

12

7009977

O-RING #8 - Was 6675538 - A

13

7001670

INSULATION

14

7001671

INSULATION

15

7136178

HOSE, A/C ASSY

15

7009978

O-RING #10 - Was 6675825 - A

16

7136180

HOSE, A/C ASSY

16

7009977

O-RING #8 - Was 6675538 - A

17

7023582

COMPRESSOR, A/C Was 7136676 - A

18

7138651

MOUNT, COMPRESSOR A/C

19

7143498

BELT

20

7143611

GUARD, COMPRESSOR A/C

21

7152731

BRACKET, COMPRESSOR A/C

22

7166916

DECAL, A/C not in kit

23

SEAL NLA - 7.87'' (199.9 mm) long - Order Ref. 24

24

6677111

SEAL bulk - sold per foot

25

17C516

BOLT

26

17C620

BOLT

27

1CM10120

BOLT

28

31H46

CLAMP

29

31H49

CLAMP

30

43C612

BOLT

31

44H48

CLAMP

32

53DM10

NUT

33

59D6

NUT

34

84G3116

SCREW

35

84G3710

SCREW

36

89D5

NUT

37

6675534

BLOCK, VALVE A/C

38

7001669

BRACKET

39

7009977

O-RING #8 - Was 6675538 - A

40

6691534

SCREW

41

6987151

INSTRUCTIONS
