Запчасти Bobcat S-Series HEATER & A/C (A/C Kit) (Used on Heaters W/Metal Housing) ACCESSORIES & OPTIONS

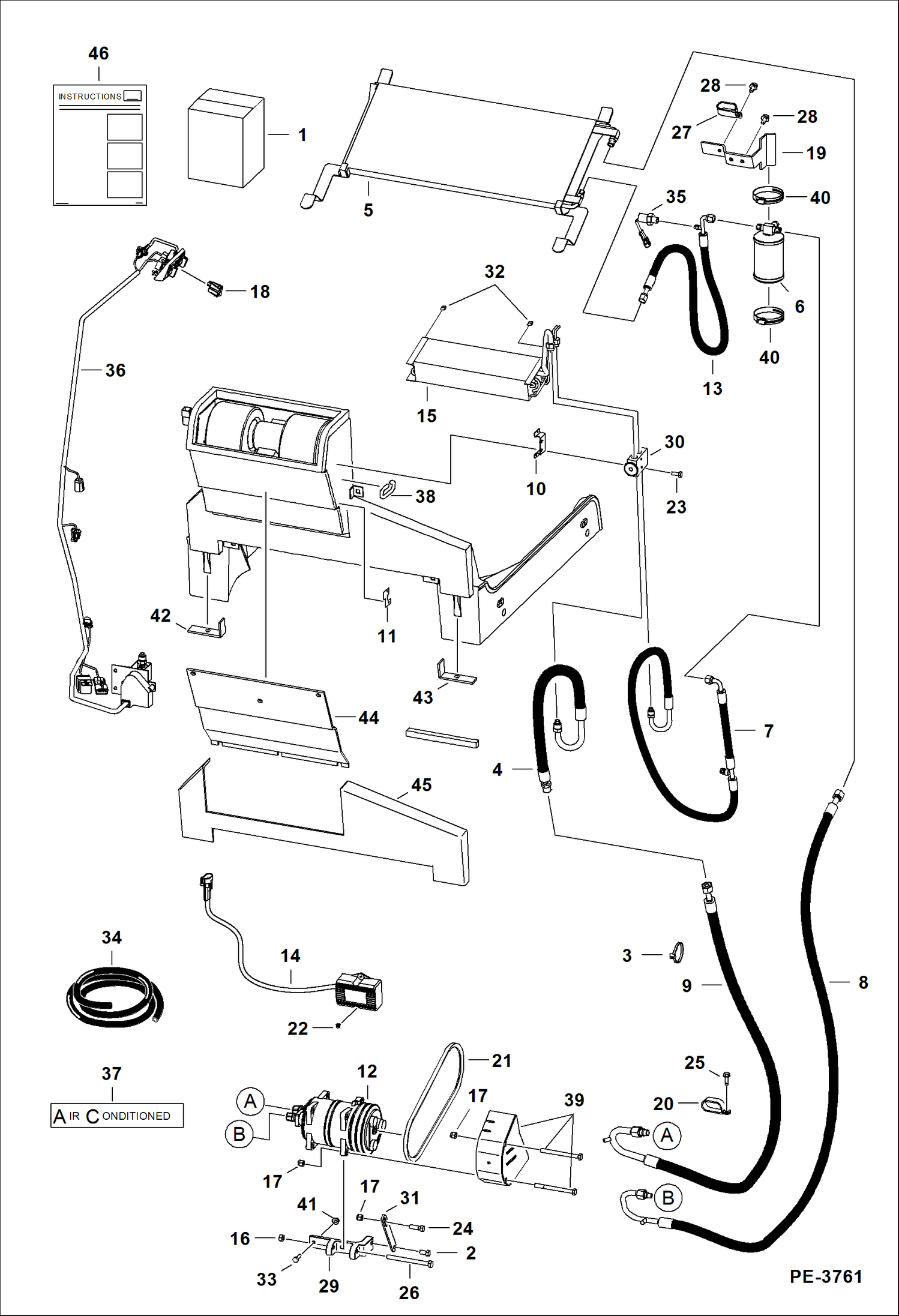

Схема запчастей Bobcat S-Series - HEATER & A/C (A/C Kit) (Used on Heaters W/Metal Housing) ACCESSORIES & OPTIONS

Артикул

Название

Примечание

Количество

1

7160945

KIT, A/C Ref. 2-49

2

43C612

BOLT

3

6624289

STRAP, TIE

4

6726623

HOSE

4

7009978

O-RING #10 - Was 6675825 - A

5

6733001

CONDENSER A/C

6

6674235

RECEIVER DRIER

6

6676062

VALVE relief

7

6698442

HOSE Was 6675075 - A

7

6677122

CAP

7

7009976

O-RING #6 - Was 6675824 - A

8

7136180

HOSE, A/C ASSY

8

6685199

CAP

8

7009978

O-RING #10 - Was 6675825 - A

9

7136178

HOSE, A/C ASSY

9

7009977

O-RING #8 - Was 6675538 - A

10

6676984

MOUNT valve

11

6692416

COVER Use W/Ref. (7116904 kit & 7166104 kit)

12

7023582

COMPRESSOR, A/C Was 7136676 - A

13

6727414

HOSE W/Ref. 35

13

7009976

O-RING #6 - Was 6675824 - A

14

6683004

THERMOSTAT

15

6690477

EVAPORATOR

15

7009977

O-RING #8 - Was 6675538 - A

16

53DM10

NUT

17

59D6

NUT

18

7169112

SWITCH, ROCKER A/C Was 6719176 - A

19

6726620

BRACKET receiver drier

20

31H49

CLAMP

21

7143498

BELT compressor

22

6726621

SCREW

23

1CM635

BOLT

24

17C620

BOLT

25

84G3116

SCREW

26

1CM10120

BOLT

27

31H46

CLAMP

28

84G3710

SCREW

29

7138651

MOUNT, COMPRESSOR A/C

30

6675534

BLOCK, VALVE A/C expansion valve

30

7009977

O-RING #8 - Was 6675538 - A

31

7152731

BRACKET, COMPRESSOR A/C swing

32

6676539

CLIP

33

17C516

BOLT

34

6676538

INSULATION bulk - sold per foot

35

6675779

SWITCH, PRESS pressure

36

7143071

HARNESS not in kit

37

6729077

DECAL air conditioned

38

INSULATION NLA - 6'' (152,4 mm) long - Order Ref. 34

39

7143611

GUARD, COMPRESSOR A/C belt

40

44H48

CLAMP

41

83D5

NUT 5

42

6675608

INSULATION

43

6675609

INSULATION

44

6689179

INSULATION

45

6689180

INSULATION

46

6987091

INSTRUCTIONS

Выбрано товаров: 56
