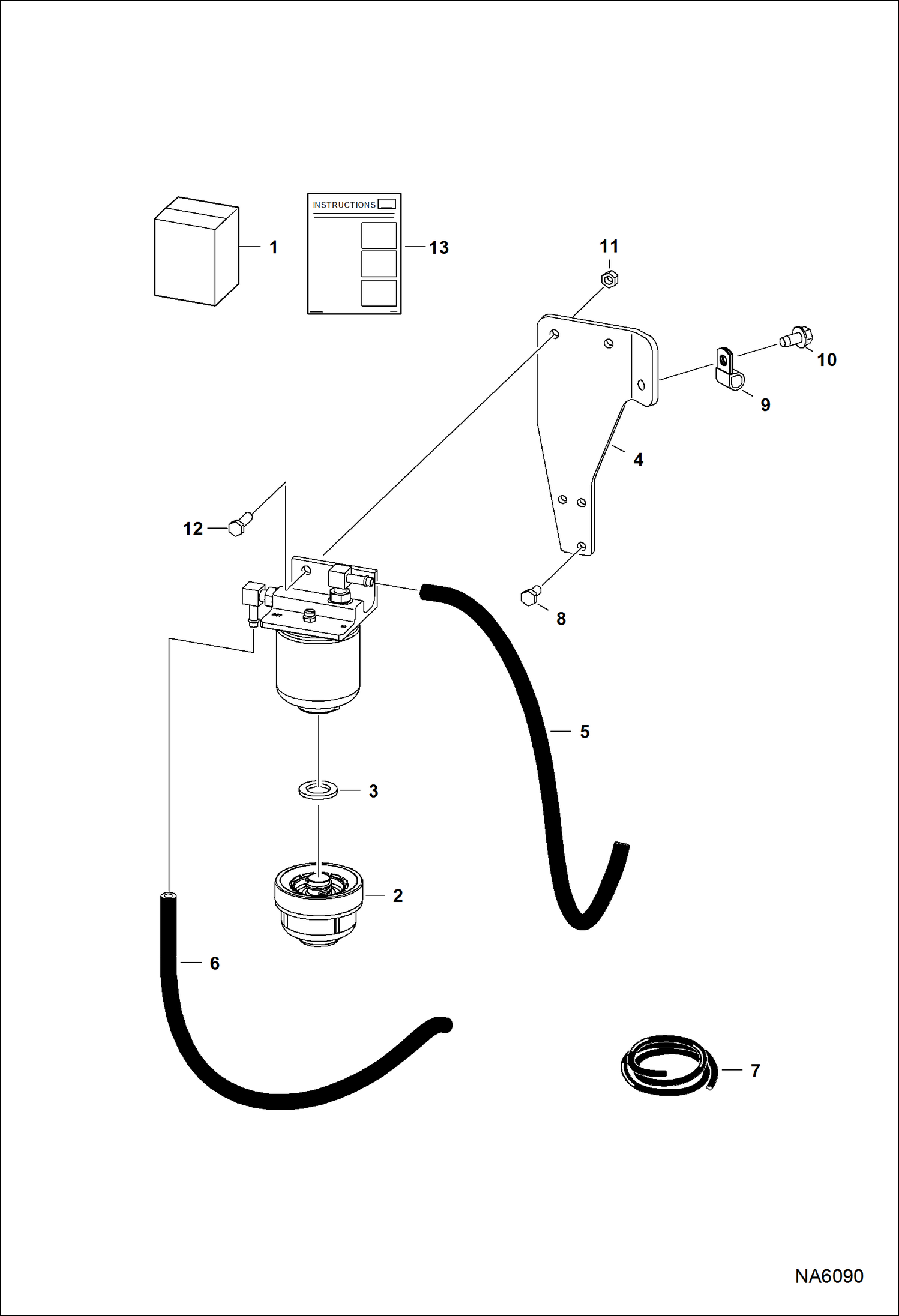

Запчасти Bobcat S-Series FUEL SEDIMENT BOWL KIT ACCESSORIES & OPTIONS

1

7192996

KIT, BOWL FUEL Ref. 2-13

2

7167163

BOWL, FUEL W/Ref. 3

3

7177212

GASKET

4

7168160

MOUNT, FILTER FUEL

5

HOSE, FUEL NLA - 558,8 mm (22'') long - Order Ref. 7

6

HOSE, FUEL NLA - 463,6 mm (18.25'') long - Order Ref. 7

7

6577822

HOSE bulk - sold per foot

8

1CM816

BOLT

9

30H31

CLAMP 10

10

84G3712

BOLT 5

11

95D5

NUT

12

17C516

BOLT

13

6987336

INSTRUCTIONS
